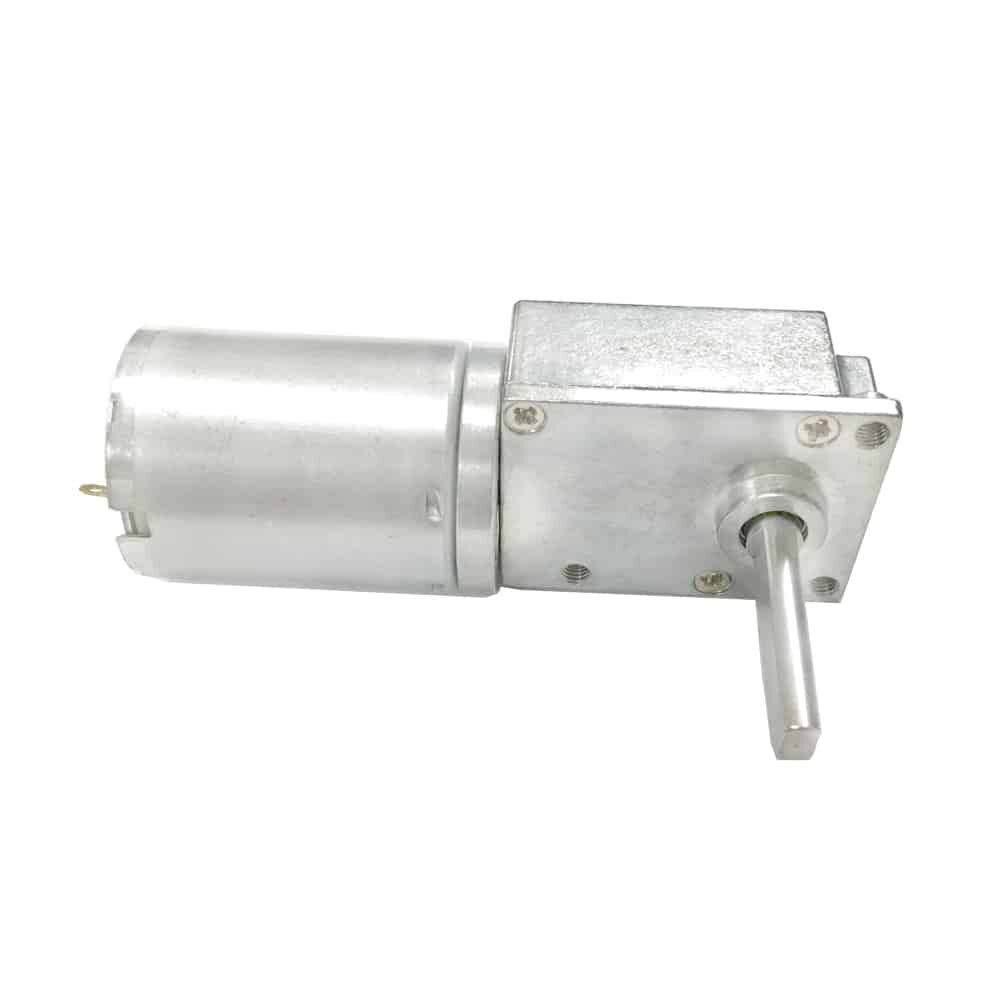

34x25mm HT-WOG34B Worm Geared DC Motors

Micro worm geared DC motor with 5mm shafts.

  • Output shaft diameter: 5 mm(optional customization)
  • Output shaft:  right angle
  • Gear reduction: Worm gear reduction
  • Voltage range: customized between DC 3V~24V
  • Speed range: customized between 15 RPM~150RPM
  • Rated Torque: customized between 0.1 kg.cm~6 kg.cm
  • Motor brush: Metal brush or carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio66352
131

Dimension Drawing

Dimension drawing for HT-WOG34B worm geared DC motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-WOG34B-12919.0-14.012VDC91≤0.0476≤0.150.95
HT-WOG34B-12459.0-14.012VDC45≤0.0438≤0.151.9
HT-WOG34B-12453.0-6.06VDC22≤0.0618≤0.350.9
HT-WOG34B-0622-243412.0-24.024VDC34≤0.03526≤0.101.45
HT-WOG34B-244512.0-24.024VDC45≤0.03538≤0.102
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
