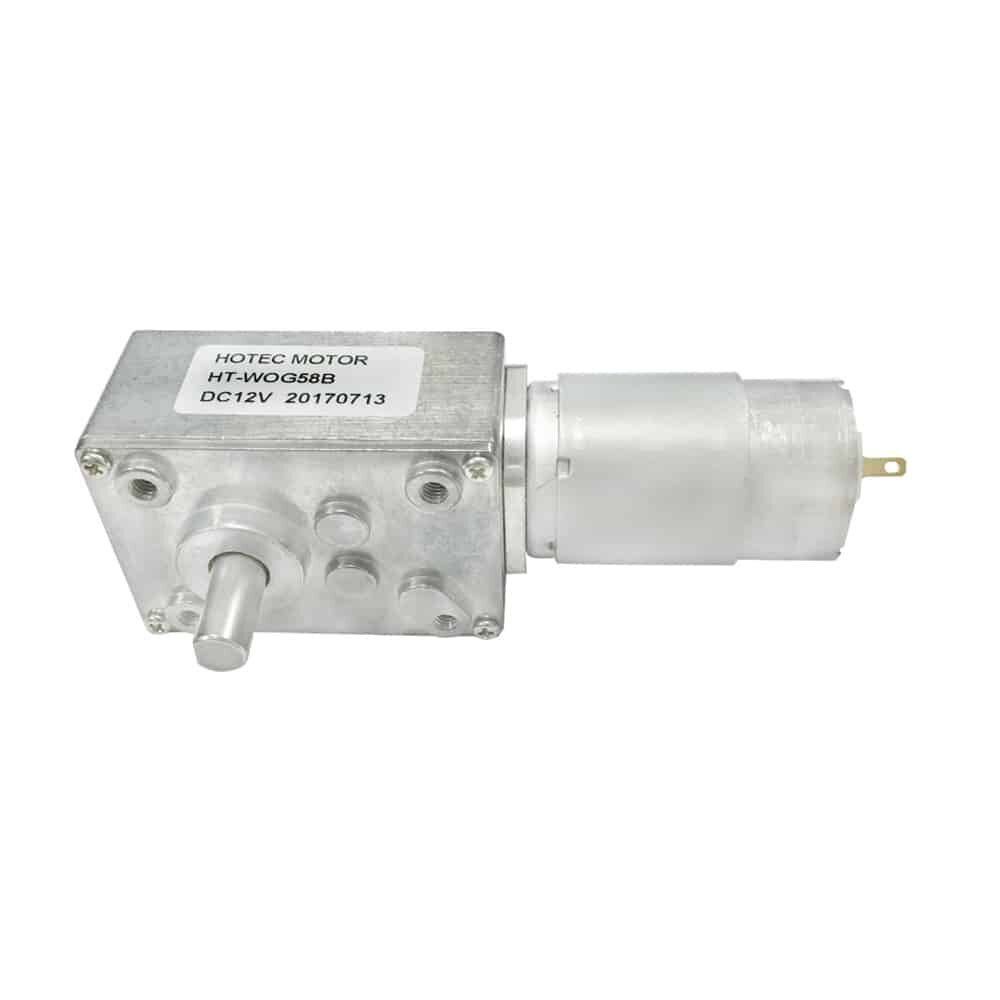

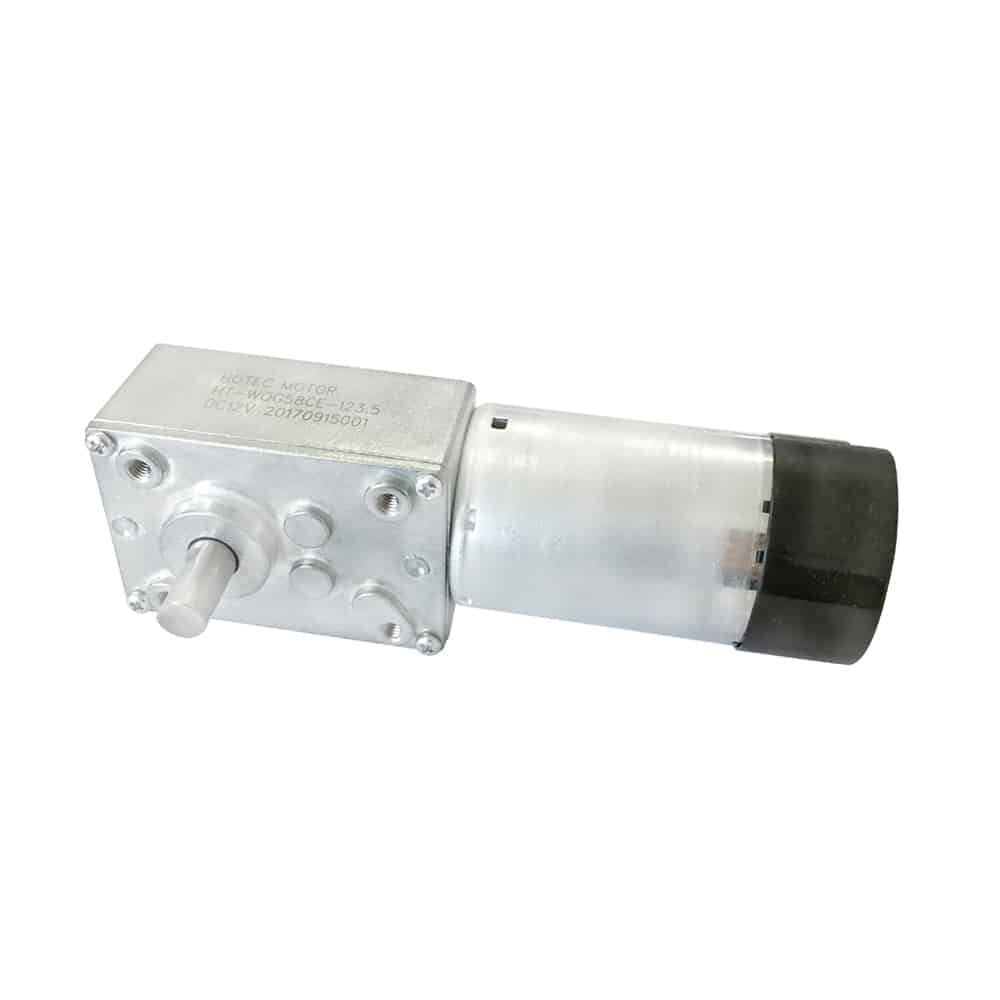

58x40mm HT-WOG58C Worm Geared DC Motors

Low noise Micro Worm geared DC Motors

  • Output shaft diameter: 8 mm (customized option)
  • Output shaft:  right angle
  • Gear reduction: Worm gear reduction
  • Voltage range: customized between DC 6V~24V
  • Speed range: customized between 1RPM~120RPM
  • Rated Torque: 1kg.cm~customized between DC 6V~24V 80kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio495061269
74634
100
217
291

Dimension Drawing

Dimension drawing for HT-WOG58B worm gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-WOG58C-2412212.0-24.024VDC122≤0.22102≤0.697.1
HT-WOG58C-242012.0-24.024VDC20≤0.2217≤0.6938
HT-WOG58C-240912.0-24.024VDC9≤0.228≤0.6975
HT-WOG58C-12909.0-14.012VDC90≤0.3878≤1.25
HT-WOG58C-12609.0-14.012VDC60≤0.3850≤1.28
HT-WOG58C-12459.0-14.012VDC45≤0.3837≤1.211
HT-WOG58C-12209.0-14.012VDC20≤0.3817≤1.224
HT-WOG58C-123.59.0-14.012VDC3.5≤0.383≤1.278
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
