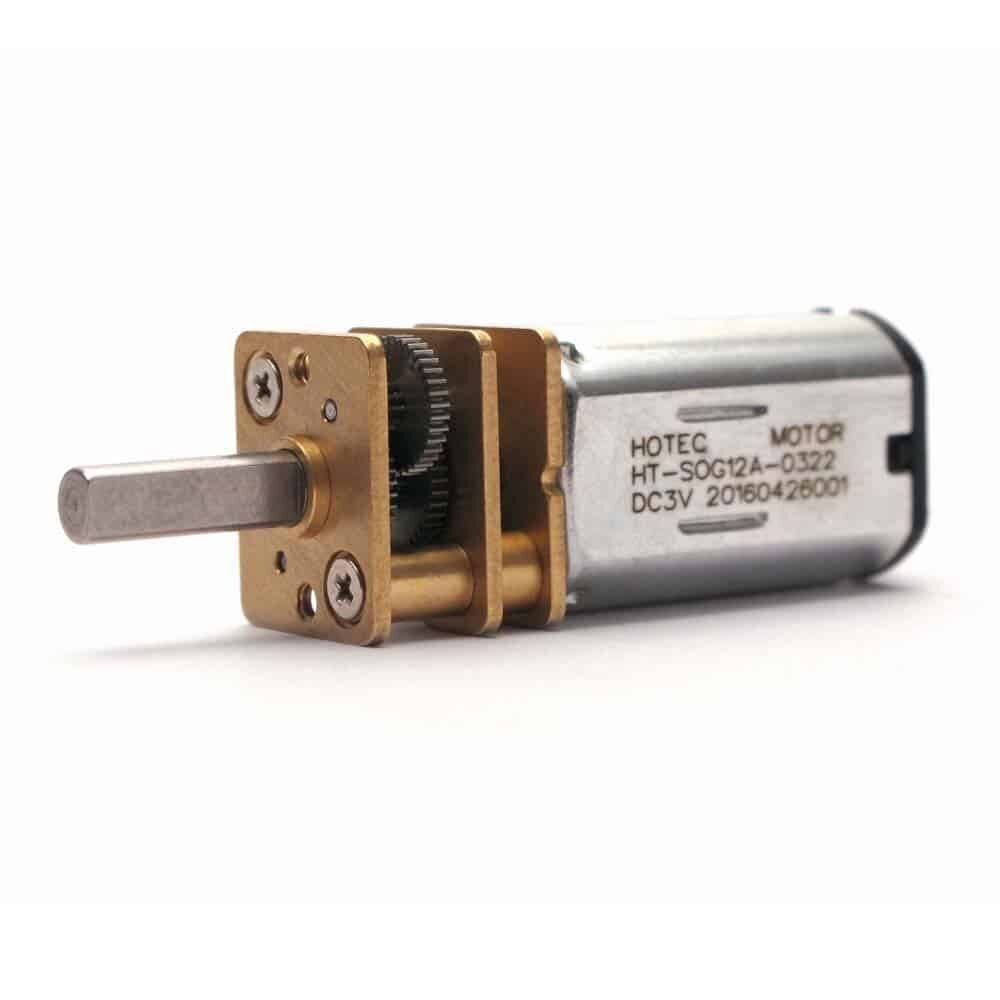

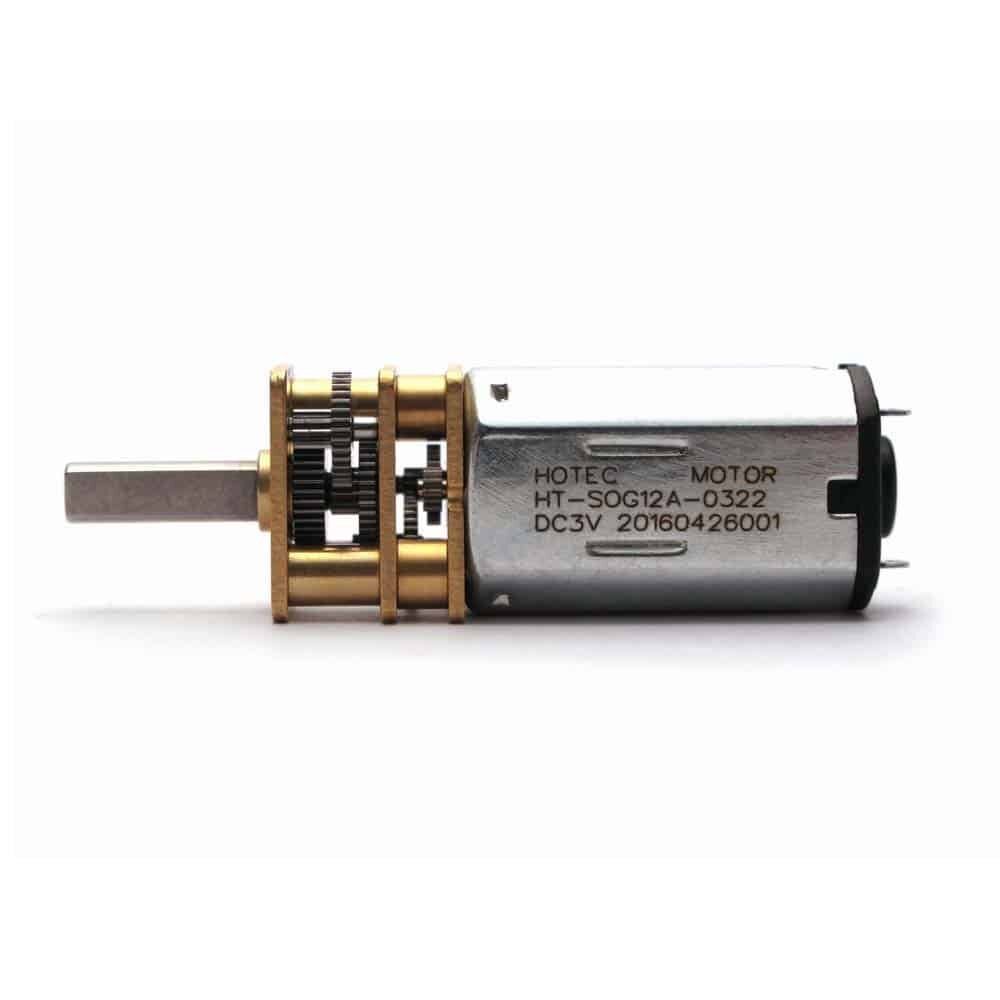

12mm diameter HT-SOG12A Spur Geared DC Motor

12mm round spur geared DC motors with 3mm shafts.

  • Gearbox diameter: 12mm
  • Output shaft diameter: 3mm
  • Output shaft position: Center shafts.
  • DC motors: Brushed DC motor
  • Gear reduction: Spur gear reduction
  • Voltage range: DC 1V~12V
  • Speed range: 5 RPM~2000 RPM
  • Torque: 0.02 kg.cm~6 kg.cm
  • Brush: Carbon brush or metal brush.
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage2345
Gear Ratio10301501000
1250210
63250
100298
340
380
Gearbox length “L” (mm)912

Dimension Drawing

Dimension drawing for HT-SOG12A DC gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG12A-038101.5-9.03VDC810≤0.04712≤0.10.02
HT-SOG12A-034351.5-9.03VDC435≤0.04380≤0.10.05
HT-SOG12A-032381.5-9.03VDC238≤0.04200≤0.10.1
HT-SOG12A-031371.5-9.03VDC137≤0.04101≤0.10.15
HT-SOG12A-06881.5-9.06VDC88≤0.0467≤0.10.2
HT-SOG12A-06601.5-9.06VDC60≤0.0442≤0.10.3
HT-SOG12A-06421.5-9.06VDC42≤0.0429≤0.10.4
HT-SOG12A-06381.5-9.06VDC38≤0.0426≤0.10.36
HT-SOG12A-06301.5-9.06VDC30≤0.0421≤0.10.45
HT-SOG12A-06221.5-9.06VDC22≤0.0415≤0.10.7
HT-SOG12A-12651.5-1212VDC65≤0.0844≤0.20.5
HT-SOG12A-12821.5-1212VDC82≤0.0860≤0.20.45
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
