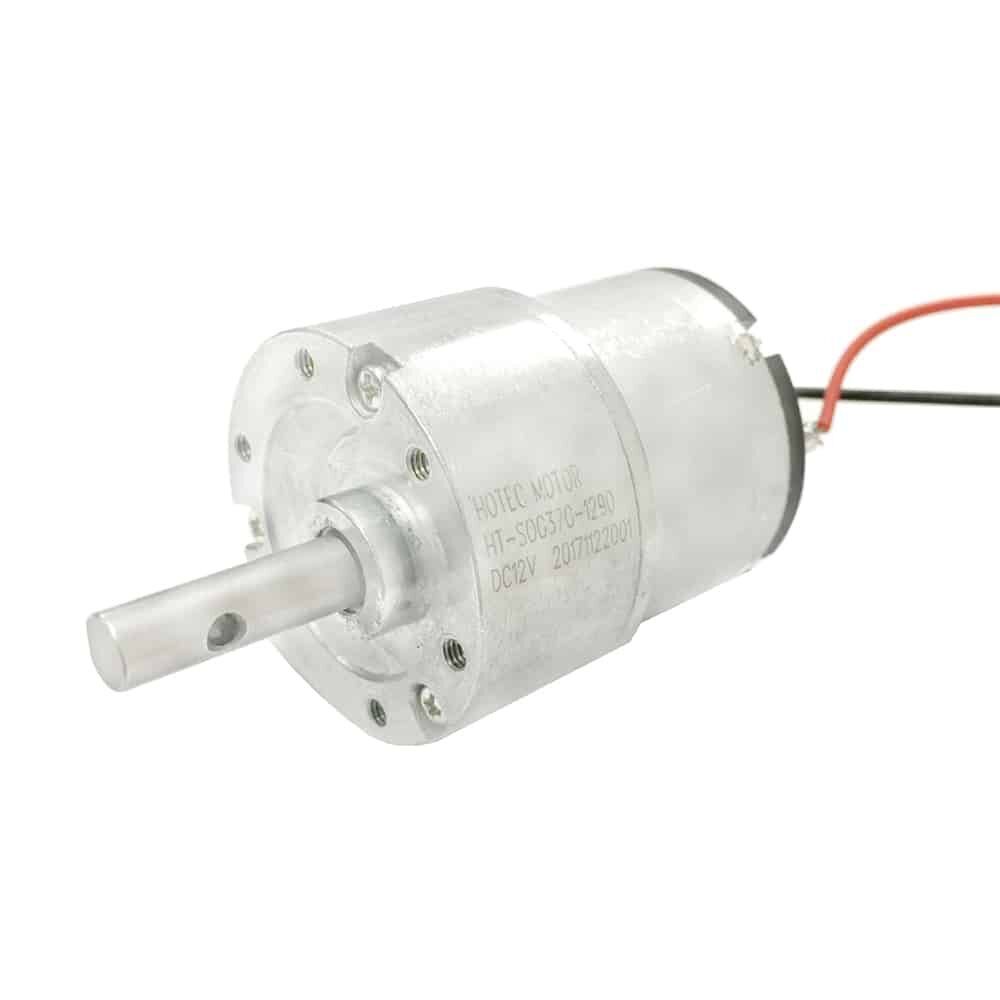

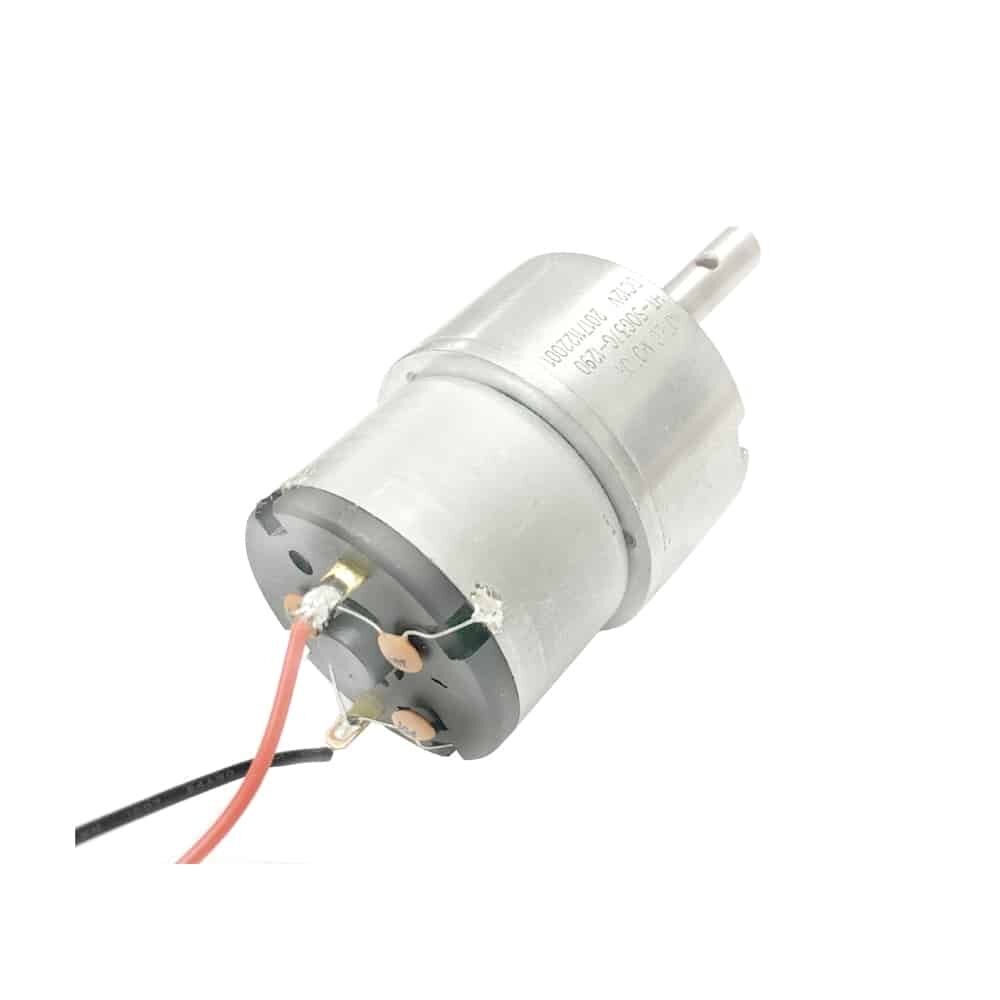

37mm diameter HT-SOG37G Spur Geared DC Motors

37mm diameter Spur geared DC motor

  • Gearbox diameter: 37mm
  • Output shaft diameter: 6mm (optional customization)
  • Output shaft position:  side shaft
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between DC 3V~24V
  • Speed range: customized between 30 RPM~600 RPM
  • Rated Torque: customized between 0.1 kg.cm~15 kg.cm
  • Motor brush: Carbon brush  or metal brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage234
Gear Ratio103090
Gearbox length “L” (mm)19.4

Dimension Drawing

Dimension drawing for HT-SOG37G spur geared DC motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG37G-033501.5-4.53VDC350≤0.07275≤0.280.2
HT-SOG37G-031151.5-4.53VDC115≤0.0790≤0.280.55
HT-SOG37G-03801.5-4.53VDC80≤0.0762≤0.280.8
HT-SOG37G-03401.5-4.53VDC40≤0.0729≤0.282.2
HT-SOG37G-063303.0-9.06VDC330≤0.05270≤0.290.25
HT-SOG37G-061153.0-9.06VDC115≤0.0592≤0.290.55
HT-SOG37G-06383.0-9.06VDC38≤0.0530≤0.292.5
HT-SOG37G-126406.0-12.012VDC640≤0.45510≤0.250.28
HT-SOG37G-122206.0-12.012VDC220≤0.15155≤0.250.65
HT-SOG37G-12686.0-12.012VDC68≤0.1550≤0.282.55
HT-SOG37G-12096.0-12.012VDC9≤0.157.5≤0.6024
HT-SOG37G-12076.0-12.012VDC7≤0.156≤0.6030

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
