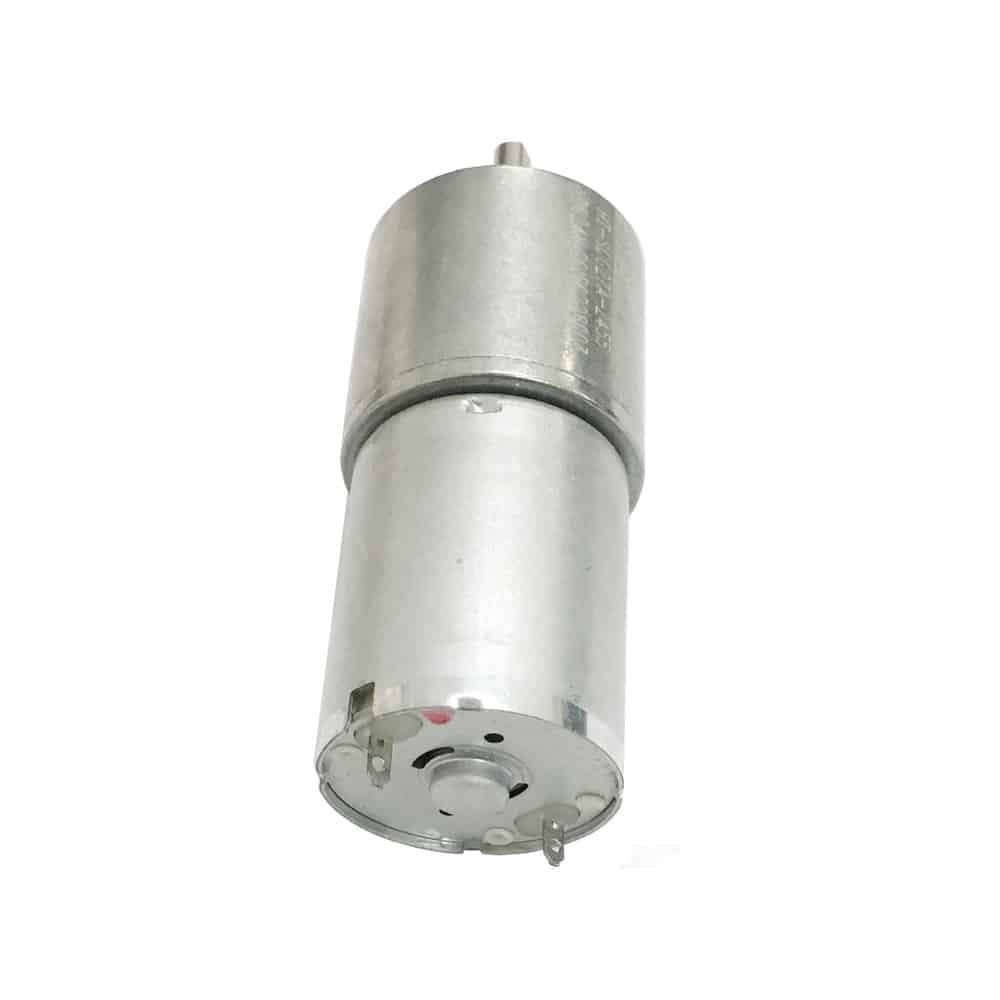

27mm diameter HT-SOG27B Spur Geared DC Motors

27mm diameter round spur geared DC Motors.

  • Gearbox diameter: 27mm
  • Output shaft diameter: 4mm
  • Output shaft position: Center shafts.
  • Gear reduction: Spur gear reduction
  • Voltage range: DC 3V~24V
  • Speed range: 3 RPM~800 RPM
  • Torque: 0.05kg.cm~7kg.cm
  • Motor brush: Carbon brush or metal brush.
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345678
Gear Ratio10214392188392
2761110193438
120210478
139250521
317620
720
Gearbox length “L” (mm)25

Dimension Drawing

Dimension drawing for HT-SOG27B gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG27B-03581.5-4.53VDC58≤0.0445≤0.100.15
HT-SOG27B-03301.5-4.53VDC30≤0.0422≤0.100.26
HT-SOG27B-03151.5-4.53VDC15≤0.0412≤0.100.29
HT-SOG27B-03061.5-4.53VDC6≤0.044.5≤0.101.05
HT-SOG27B-61203.0-9.06VDC120≤0.0595≤0.180.26
HT-SOG27B-06753.0-9.06VDC75≤0.0554≤0.181.15
HT-SOG27B-06603.0-9.06VDC60≤0.0545≤0.180.55
HT-SOG27B-06293.0-9.06VDC29≤0.0521≤0.181.05
HT-SOG27B-06223.0-9.06VDC22≤0.0517≤0.180.48
HT-SOG27B-12306.0-15.012VDC30≤0.0523≤0.120.75
HT-SOG27B-12246.0-15.012VDC24≤0.0516≤0.120.68
HT-SOG27B-12286.0-15.012VDC28≤0.0521≤0.120.75
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
