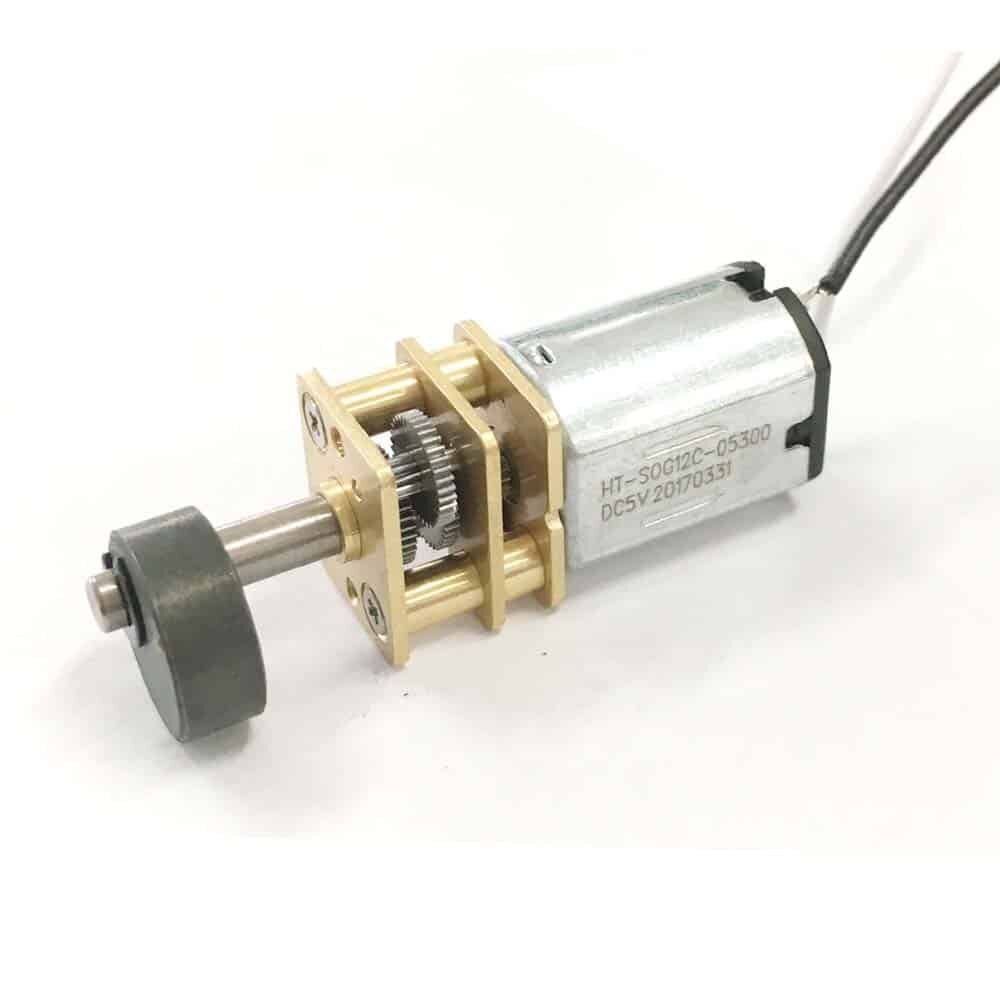

12mm diameter HT-SOG12C Spur geared DC Motor

12mm spur geared DC Motors(N20 gear motors.)

  • Gearbox diameter: 12mm
  • Output shaft diameter: 3mm
  • Output shaft position: Center shafts.
  • DC motors: Brushed DC motor
  • Gear reduction: Spur gear reduction
  • Voltage range: DC 1.5V~12V
  • Speed range: 5 RPM~2000 RPM
  • Rated Torque: 0.02 kg.cm~6 kg.cm
  • Brush: Carbon brush or metal brush.
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage2345
Gear Ratio10301501000
1250210
63250
100298
340
380
Gearbox length “L” (mm)912

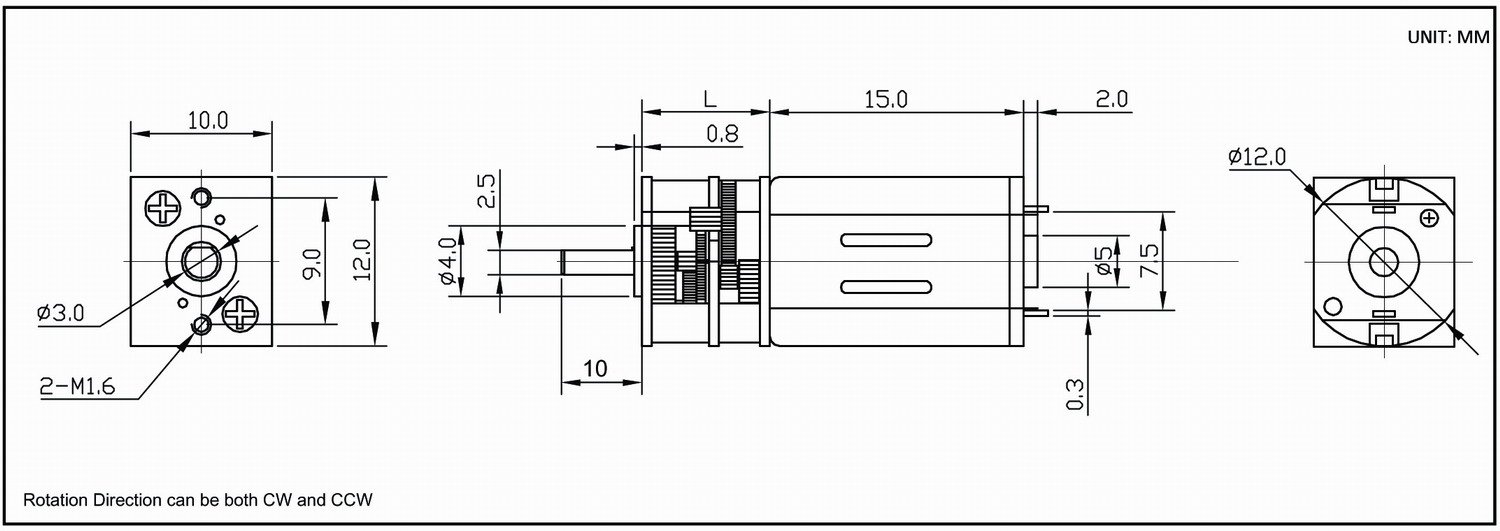

Dimension Drawing

Dimension drawing for HT-SOG12C DC gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG12C-15101.0-3.01.5VDC10≤0.037≤0.070.4
HT-SOG12C-15181.0-3.01.5VDC18≤0.0312≤0.110.2
HT-SOG12C-03401.5-6.03VDC40≤0.0431≤0.150.32
HT-SOG12C-45501.5-6.04.5VDC50≤0.0442≤0.150.55
HT-SOG12C-05551.5-8.05VDC55≤0.0344≤0.210.65
HT-SOG12C-516501.5-8.05VDC1650≤0.051420≤0.210.03
HT-SOG12C-058001.5-8.05VDC800≤0.05690≤0.210.05
HT-SOG12C-065501.5-9.06VDC550≤0.05425≤0.210.15
HT-SOG12C-063301.5-9.06VDC330≤0.05252≤0.210.14
HT-SOG12C-061801.5-9.06VDC180≤0.05112≤0.210.25
HT-SOG12C-06653.0-9.06VDC65≤0.0446≤0.250.73
HT-SOG12C-09903.0-9.09VDC90≤0.1583≤0.250.45

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
