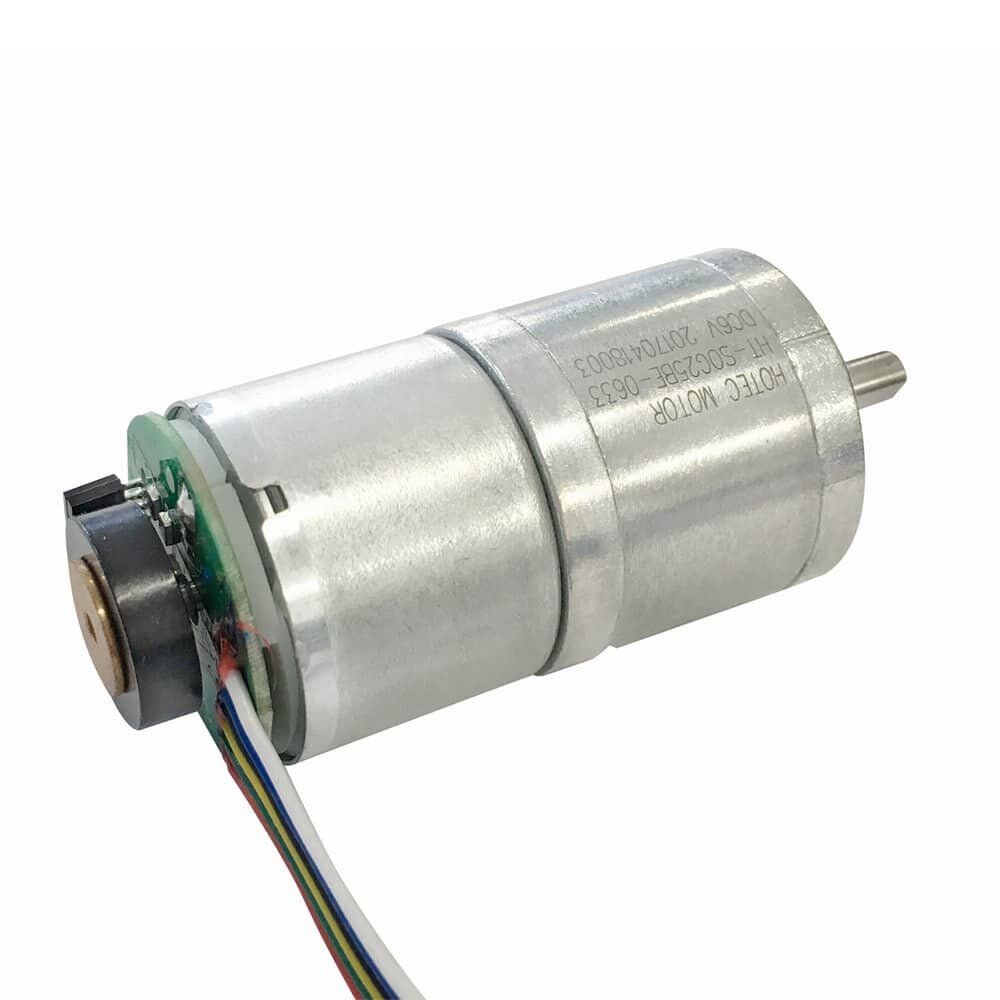

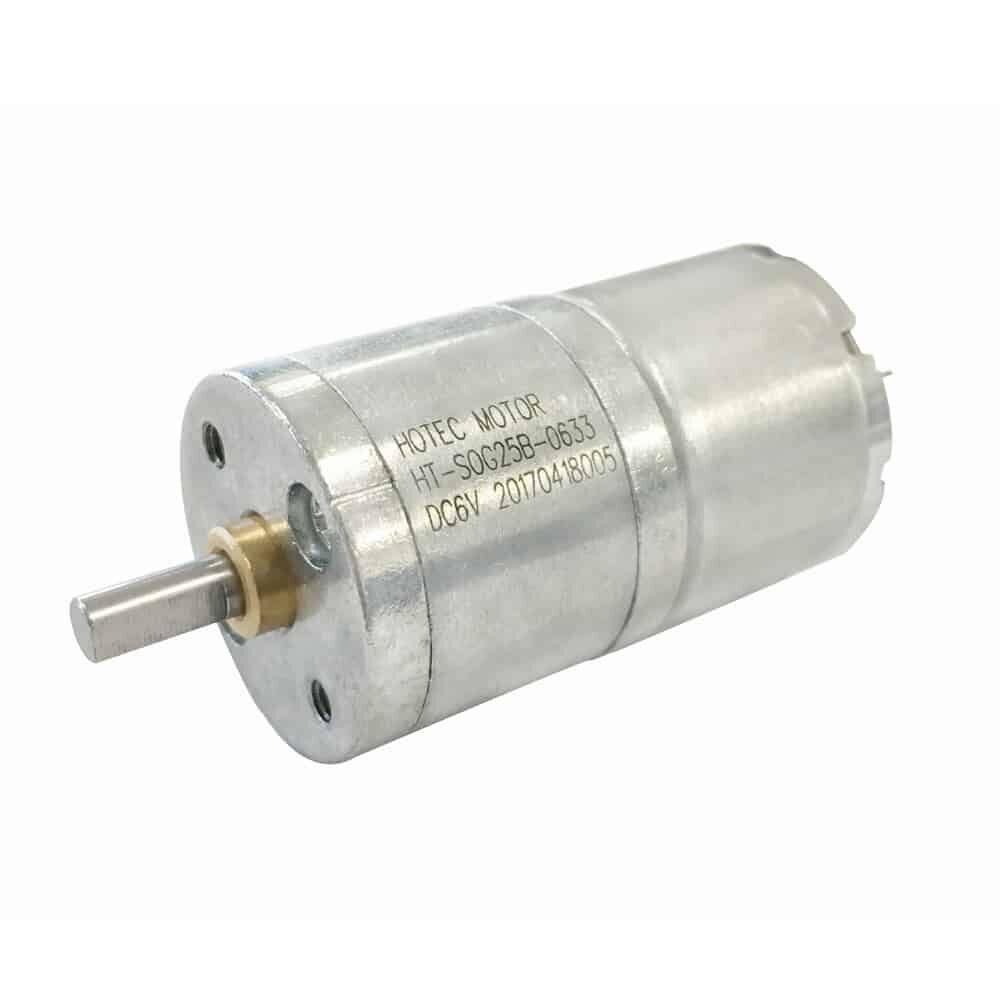

25mm diameter HT-SOG25B Spur Geared DC Motors

25mm diameter round spur geared DC motors.

  • Gearbox diameter: 25mm
  • Output shaft diameter: 4mm
  • Output shaft position: Center shafts.
  • Gear reduction: Spur gear reduction
  • Voltage range: DC 1V~24V
  • Speed range: 3 RPM~600 RPM
  • Torque: 0.2kg.cm~6kg.cm
  • Motor brush: Carbon brush or metal brush.
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage45678
Gear Ratio132955121266
214163139307
4789171376
103197433
226499
Gearbox length “L” (mm)2327

Dimension Drawing

Dimension drawing for HT-SOG25B DC gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG25B-124526.0-12.012VDC452≤0.05402≤0.220.1
HT-SOG25B-123566.0-12.012VDC356≤0.05310≤0.220.16
HT-SOG25B-122656.0-12.012VDC265≤0.05212≤0.220.25
HT-SOG25B-61951.0-8.06VDC195≤0.05160≤0.220.3
HT-SOG25B-6521.0-8.06VDC152≤0.05124≤0.220.32
HT-SOG25B-61201.0-8.06VDC120≤0.0595≤0.220.42
HT-SOG25B-06901.0-8.06VDC90≤0.0570≤0.220.52
HT-SOG25B-06701.0-8.06VDC70≤0.0555≤0.220.63
HT-SOG25B-06551.0-8.06VDC55≤0.0542≤0.220.82
HT-SOG25B-06401.0-8.06VDC40≤0.0530≤0.221
HT-SOG25B-03301.0-6.03VDC30≤0.0522≤0.221.3
HT-SOG25B-03101.0-6.03VDC10≤0.056≤0.223.25
