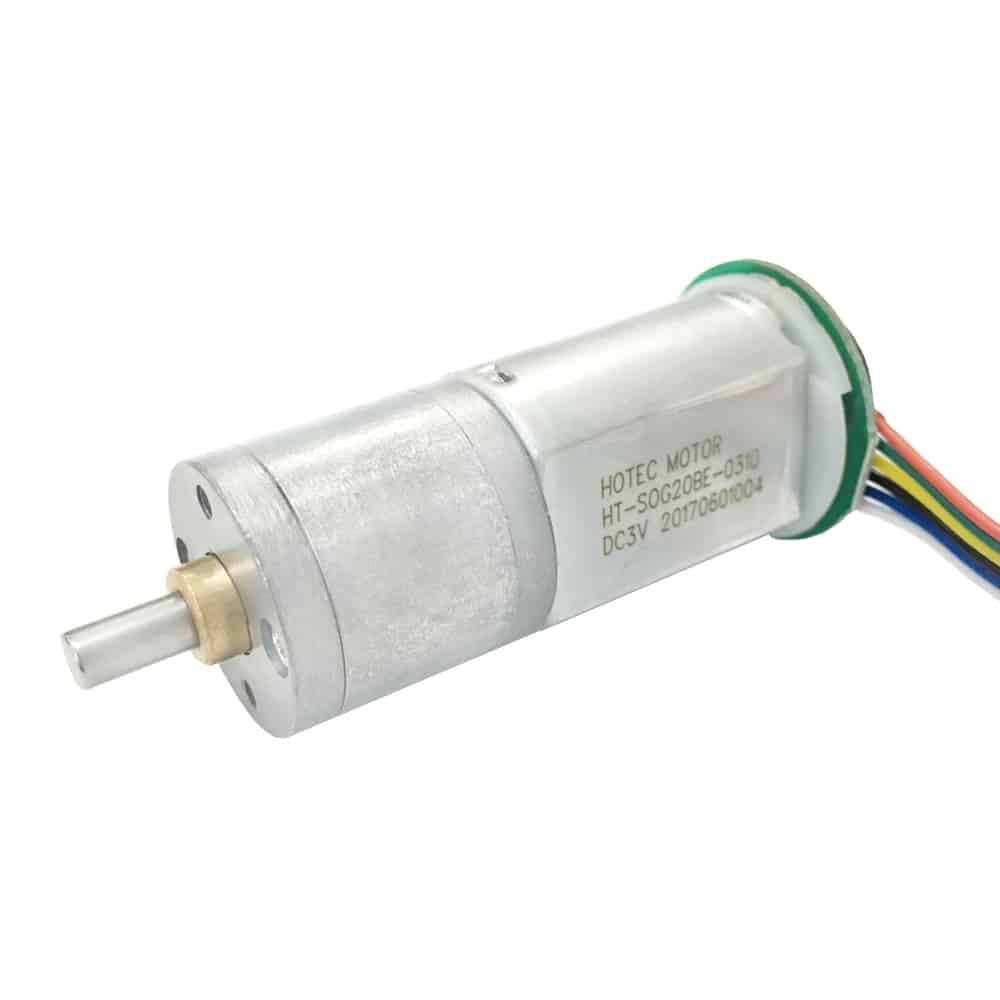

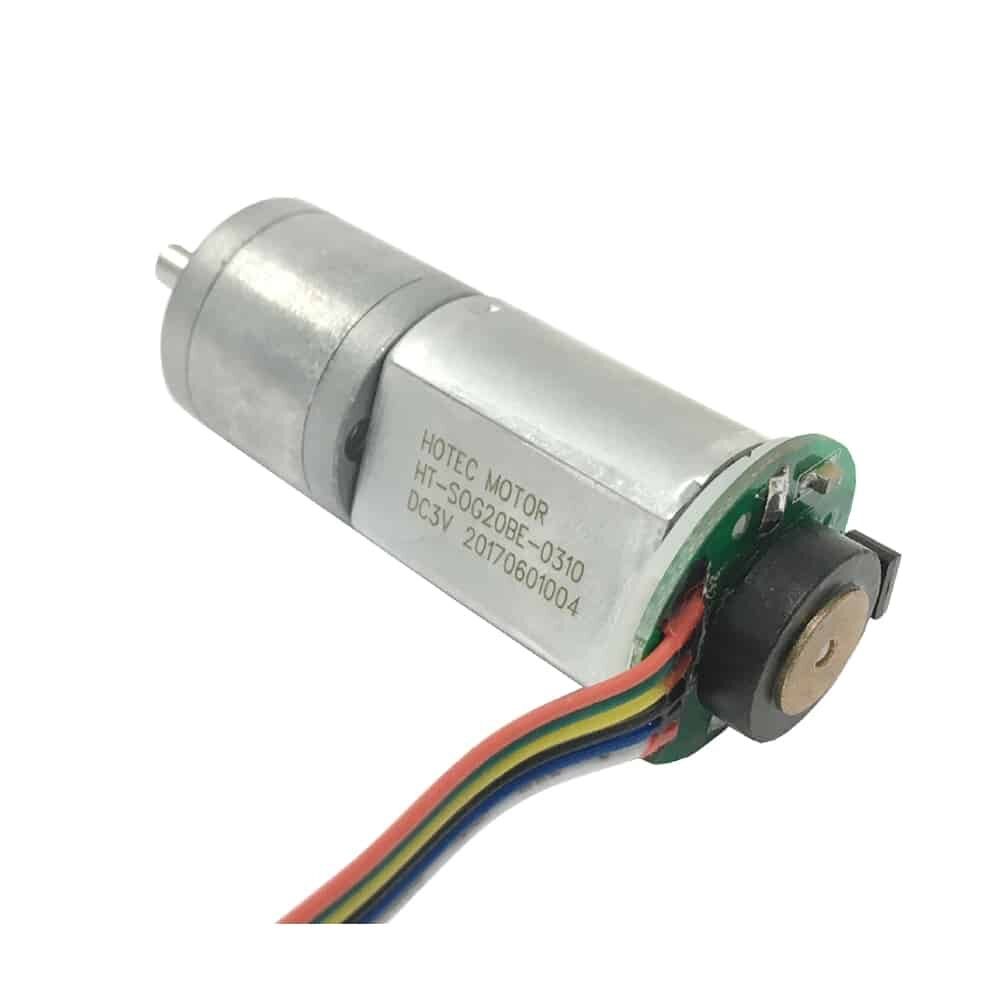

20mm diameter HT-SOG20B Spur Geared DC Motors

  • Gearbox diameter: 20mm
  • Output shaft diameter: 4mm
  • Output shaft position: Center shafts.
  • Gear reduction: Spur gear reduction
  • Voltage range: DC 1V~24V
  • Speed range: 5 RPM~1600 RPM
  • Torque: 0.05 kg.cm~6kg.cm
  • Motor brush: Carbon brush or metal brush.
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage2345
Gear Ratio1050100250
12.562125313
2578156391
31195488
Gearbox length “L” (mm)1617.51920.5

Dimension Drawing

Dimension drawing for HT-SOG20B DC gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG20B-065103.0-9.06VDC510≤0.05450≤0.160.07
HT-SOG20B-064203.0-9.06VDC420≤0.05364≤0.160.09
HT-SOG20B-062003.0-9.06VDC200≤0.05160≤0.160.18
HT-SOG20B-061653.0-9.06VDC165≤0.05121≤0.160.2
HT-SOG20B-061003.0-9.06VDC100≤0.0581≤0.160.3
HT-SOG20B-06803.0-9.06VDC80≤0.0562≤0.160.4
HT-SOG20B-06681.5-6.03VDC68≤0.0850≤0.200.25
HT-SOG20B-03551.5-6.03VDC55≤0.0836≤0.200.28
HT-SOG20B-121506.0-12.012VDC150≤0.02115≤0.100.22
HT-SOG20B-122406.0-12.012VDC240≤0.02202≤0.100.18
HT-SOG20B-121206.0-12.012VDC120≤0.02106≤0.100.25
HT-SOG20B-12226.0-12.012VDC22≤0.0214≤0.101.5
