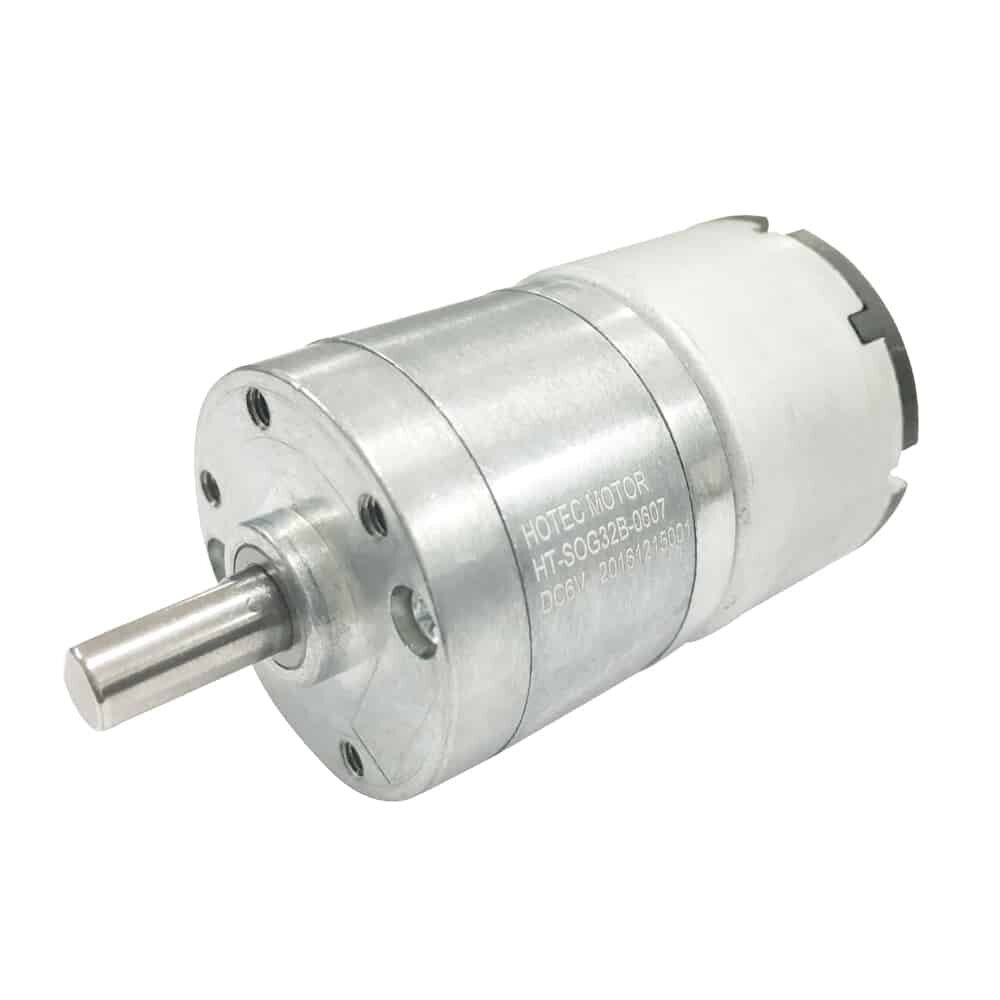

32mm diameter HT-SOG32B Spur Geared DC Motors

32mm diameter Spur Gearbox DC Motors

  • Gearbox diameter: 32mm
  • Output shaft diameter: 6mm(optional customization)
  • Output shaft position:  Concentric shaft
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between DC 4V~26V, typically it’s 6V, 12V and 24V.
  • Speed range: customized between 5 RPM~500 RPM
  • Torque: customized between 0.5 kg.cm~15 kg.cm
  • Motor brush: Carbon brush or Metal Brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage3456
Gear Ratio13.44073170
45.594219
52121282
136362
155409
466
Gearbox length “L” (mm)26.5

Dimension Drawing

Dimension drawing for 32mm brushed DC gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG32B-62526.0-12.06VDC252≤0.06185≤0.250.35
HT-SOG32B-06806.0-12.06VDC80≤0.0660≤0.250.85
HT-SOG32B-06726.0-12.06VDC72≤0.0653≤0.251.05
HT-SOG32B-06646.0-12.06VDC64≤0.0645≤0.251.15
HT-SOG32B-06456.0-12.06VDC45≤0.0632≤0.251.55
HT-SOG32B-06356.0-12.06VDC35≤0.0625≤0.252.05
HT-SOG32B-06246.0-12.06VDC24≤0.0617≤0.253.05
HT-SOG32B-06186.0-12.06VDC18≤0.0612≤0.253.55
HT-SOG32B-06126.0-12.06VDC12≤0.068≤0.256.1
HT-SOG32B-06096.0-12.06VDC9≤0.066≤0.257.65
HT-SOG32B-06086.0-12.06VDC8≤0.065.5≤0.258.05
HT-SOG32B-06076.0-12.06VDC7≤0.065≤0.259.25

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
