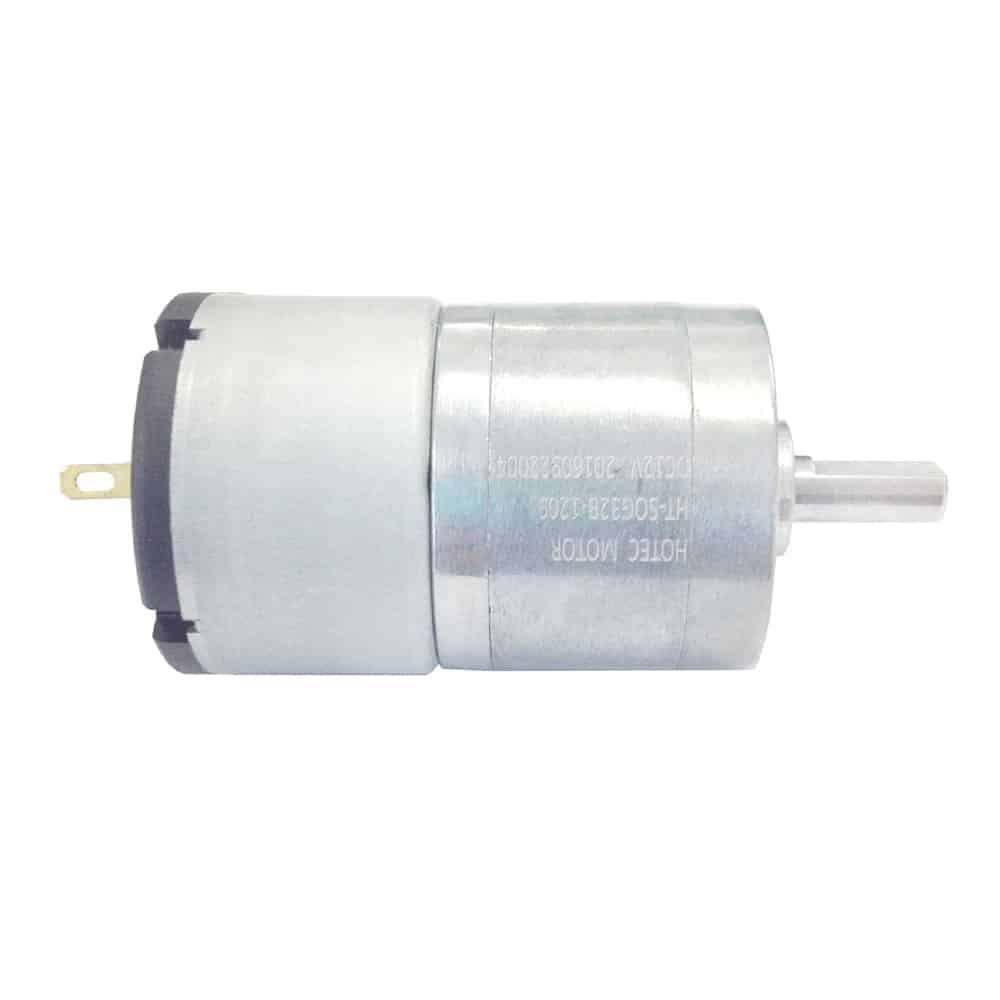

32mm diameter HT-SOG32C Spur Geared DC Motors

32mm Spur Gearbox DC Motors

  • Gearbox diameter: 32mm
  • Output shaft diameter: 6mm(optional customization)
  • Output shaft position:  Concentric shaft
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between DC 5V~30V, typically it’s 6V, 12V and 24V
  • Speed range: customized between 5 RPM~600 RPM
  • Torque: customized between 0.5 kg.cm~20 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage3456
Gear Ratio13.44073170
45.594219
52121282
136362
155409
466
Gearbox length “L” (mm)26.5

Dimension Drawing

Dimension Drawing for HT-SOG32C gear motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG32C-124506.0-14.012VDC450≤0.06385≤0.160.3
HT-SOG32C-121506.0-14.012VDC150≤0.06122≤0.160.82
HT-SOG32C-121186.0-14.012VDC118≤0.0698≤0.161.15
HT-SOG32C-12846.0-14.012VDC84≤0.0670≤0.161.55
HT-SOG32C-12656.0-14.012VDC65≤0.0652≤0.162.05
HT-SOG32C-12506.0-14.012VDC50≤0.0640≤0.162.5
HT-SOG32C-12446.0-14.012VDC44≤0.0635≤0.162.95
HT-SOG32C-12356.0-14.012VDC35≤0.0630≤0.163.55
HT-SOG32C-12276.0-14.012VDC27≤0.0624≤0.164.6
HT-SOG32C-12226.0-14.012VDC22≤0.0618≤0.166.1
HT-SOG32C-12156.0-14.012VDC15≤0.0612≤0.168.05
HT-SOG32C-12136.0-14.012VDC13≤0.0610≤0.169.25
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.



CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
