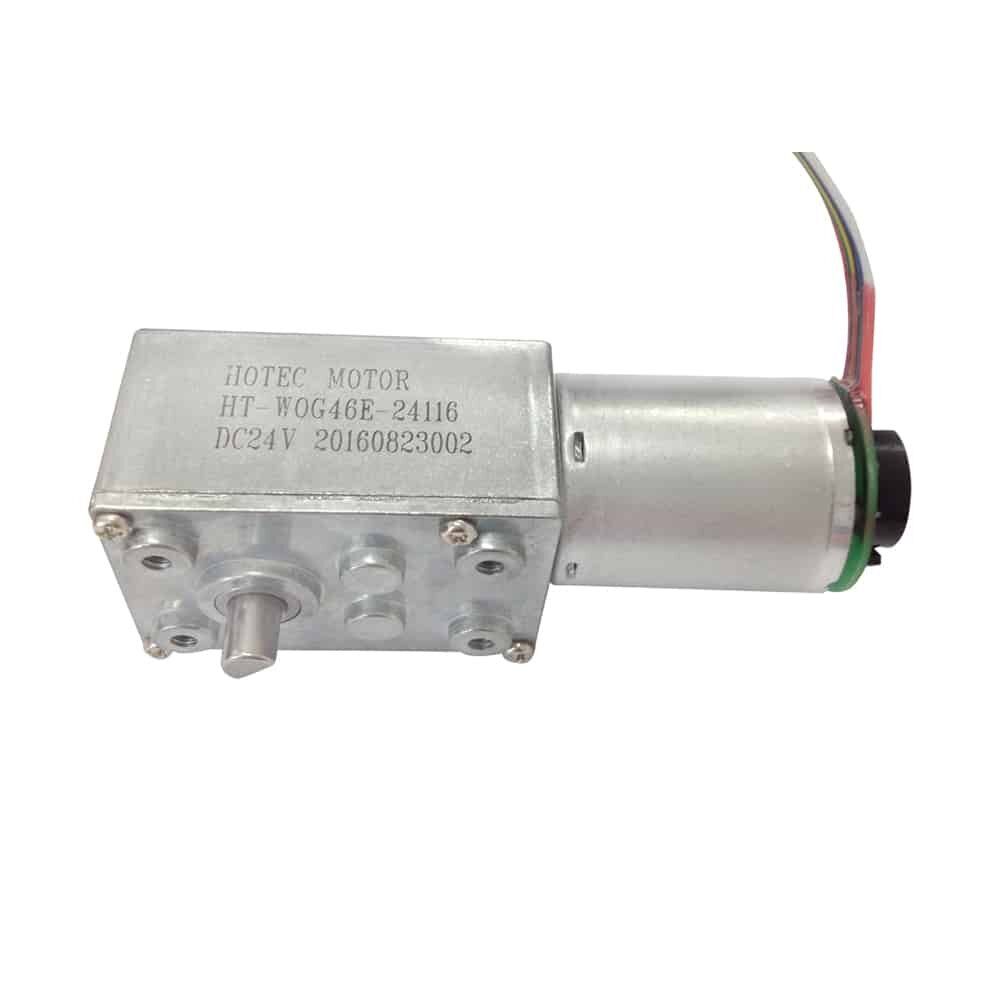

46x32mm HT-WOG46 Worm Geared DC Motors

Micro worm gear DC motors with 6mm shafts.

  • Output shaft diameter: 6 mm(optional customization)
  • Output shaft:  right angle
  • Gear reduction: Worm gear reduction
  • Voltage range: customized between DC 3V~24V
  • Speed range: customized between 1 RPM~160 RPM
  • Rated Torque: customized between 1 kg.cm~30 kg.cm
  • Motor brush: Metal brush or carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio493501587
1027002450
158
205
317

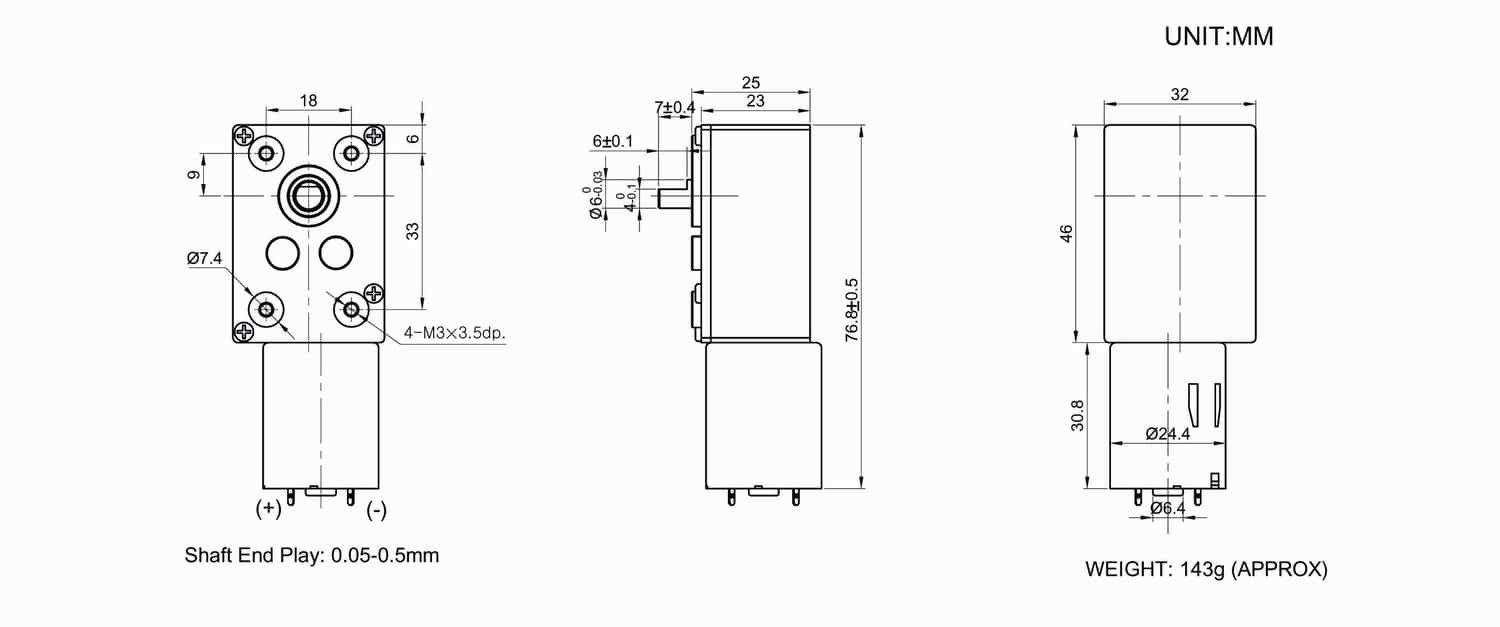

Dimension Drawing

Dimension Drawing for HT-WOG46 worm geared DC motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-WOG46-12329.0-14.012VDC32≤0.0625≤0.232.8
HT-WOG46-12209.0-14.012VDC20≤0.0616≤0.234.2
HT-WOG46-128.59.0-14.012VDC8.5≤0.067≤0.238.6
HT-WOG46-12049.0-14.012VDC4≤0.063≤0.2318.5
HT-WOG46-122.59.0-14.012VDC2.5≤0.062≤0.2330
HT-WOG46-243018.0-24.024VDC30≤0.0222≤0.051.1
HT-WOG46-242018.0-24.024VDC20≤0.0715≤0.162.4
HT-WOG46-240918.0-24.024VDC9≤0.077.6≤0.165.2
HT-WOG46-03082.5-5.03VDC8≤0.126.5≤0.628.4
HT-WOG46-03052.5-5.0 3VDC5≤0.123.5≤0.6213.5
HT-WOG46-03032.5-5.03VDC3≤0.122.2≤0.6225
HT-WOG46-031.52.5-5.03VDC1.5≤0.121≤0.6230
