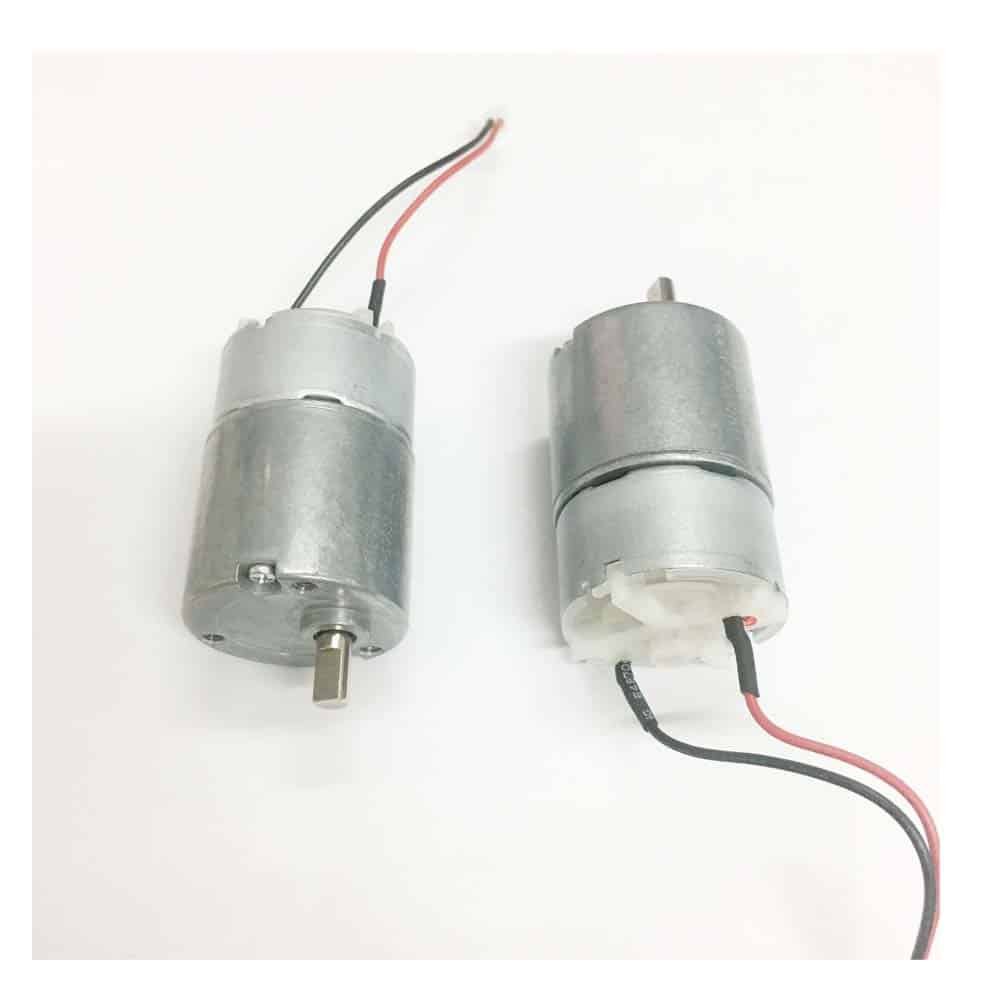

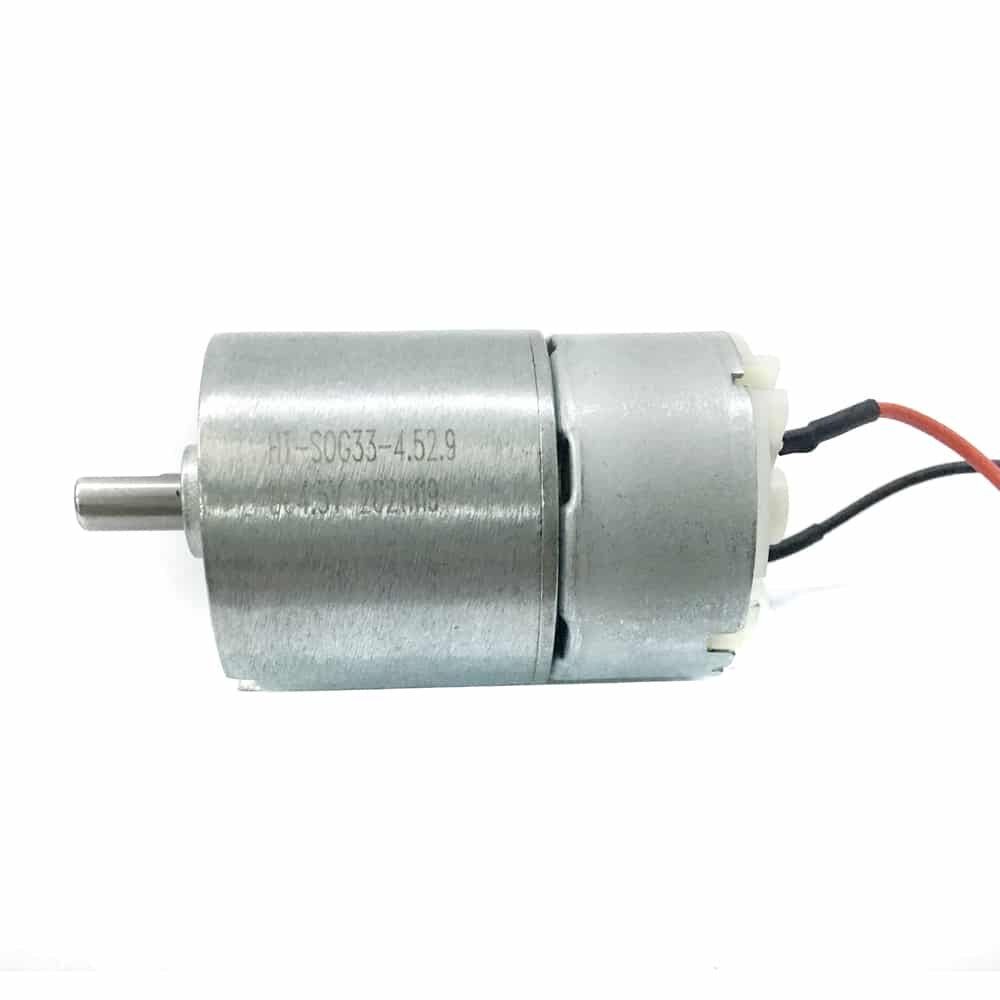

33mm diameter HT-SOG33 Spur Geared DC Motors

33mm diameter round Spur Gear Motor

  • Gearbox diameter: 33mm
  • Output shaft diameter: 6mm
  • Output shaft position:  side shaft
  • Gear reduction: Spur gear reduction
  • Voltage range: DC 3V~24V
  • Speed range: 1 RPM~600 RPM
  • Torque: 0.5 kg.cm~20 kg.cm
  • Motor brush: Carbon brush or metal brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345678
Gear Ratio818441062551956
52124299
61
Gearbox length  “L” (mm)22.527.529.2

Dimension Drawing

Dimension Drawing for HT-SOG33 DC gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCYAT STALL
OPERATIONNOMINALSPEEDCURRENTSPEEDCURRENTTORQUECURRENTTORQUE
    RANGEr/minAr/minAkg.cmAkg.cm
HT-SOG33-67233.0-9.06VDC723≤0.12600≤0.270.11≤0.80.5
HT-SOG33-62983.0-9.06VDC298≤0.12244≤0.270.24≤0.81
HT-SOG33-61253.0-9.06VDC125≤0.12102≤0.270.51≤0.82.55
HT-SOG33-61053.0-9.06VDC105≤0.1286≤0.270.58≤0.82.9
HT-SOG33-6903.0-9.06VDC90≤0.1274≤0.270.66≤0.83.3
HT-SOG33-06523.0-9.06VDC52≤0.1242≤0.271.1≤0.85.5
HT-SOG33-06443.0-9.06VDC44≤0.1236≤0.271.32≤0.86.6
HT-SOG33-06223.0-9.06VDC22≤0.1218≤0.272.4≤0.812
HT-SOG33-06183.0-9.06VDC18≤0.1215≤0.272.9≤0.815
HT-SOG33-06093.0-9.06VDC9≤0.127.3≤0.275.1≤0.825.5
HT-SOG33-067.83.0-9.06VDC7.8≤0.126.3≤0.276≤0.830
HT-SOG33-4.52.93.0-6.04.5VDC2.9≤0.152.6≤0.3415.5≤1.040
