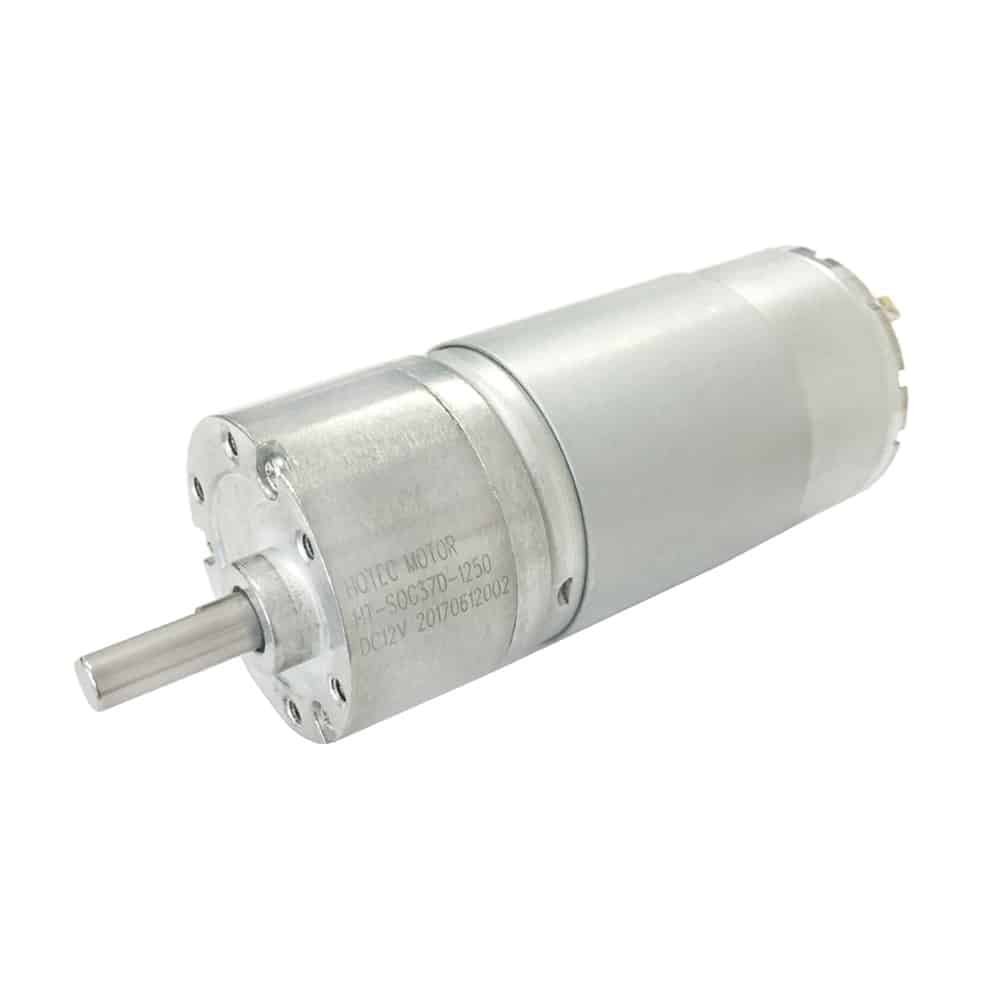

37mm diameter HT-SOG37D Spur Geared DC Motors

37mm diameter Spur Gear Motors.

  • Gearbox diameter: 37mm
  • Output shaft diameter: 6mm(optional customization)
  • Output shaft position:  side shaft
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between DC 10V~26V, typically it’s 12V or 24V
  • Speed range: customized between 3 RPM~600 RPM
  • Rated Torque: customized between0.5 kg.cm~30 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage23456
Gear Ratio102050120450
3070150490
90210630
270810
Gearbox length “L” (mm)24.529

Dimension Drawing

Dimension drawing for HT-SOG37D DC gearbox motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG37D-2461012.0-28.024VDC610≤0.18505≤0.852.45
HT-SOG37D-2430512.0-28.024VDC305≤0.18252≤0.854.4
HT-SOG37D-2420012.0-28.024VDC200≤0.18165≤0.856.5
HT-SOG37D-248512.0-28.024VDC85≤0.1870≤0.8514.5
HT-SOG37D-246512.0-28.024VDC65≤0.1855≤0.8516.5
HT-SOG37D-245012.0-28.024VDC50≤0.1841≤0.8520
HT-SOG37D-244512.0-28.024VDC45≤0.1836≤0.8523.5
HT-SOG37D-244012.0-28.024VDC40≤0.1832≤0.8525
HT-SOG37D-243012.0-28.024VDC30≤0.1824≤0.8533.5
HT-SOG37D-242212.0-28.024VDC22≤0.1818≤0.8540*
HT-SOG37D-2450012.0-28.024VDC500≤0.18420≤0.852.9
HT-SOG37D-2445012.0-28.024VDC450≤0.18385≤0.853.1
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
