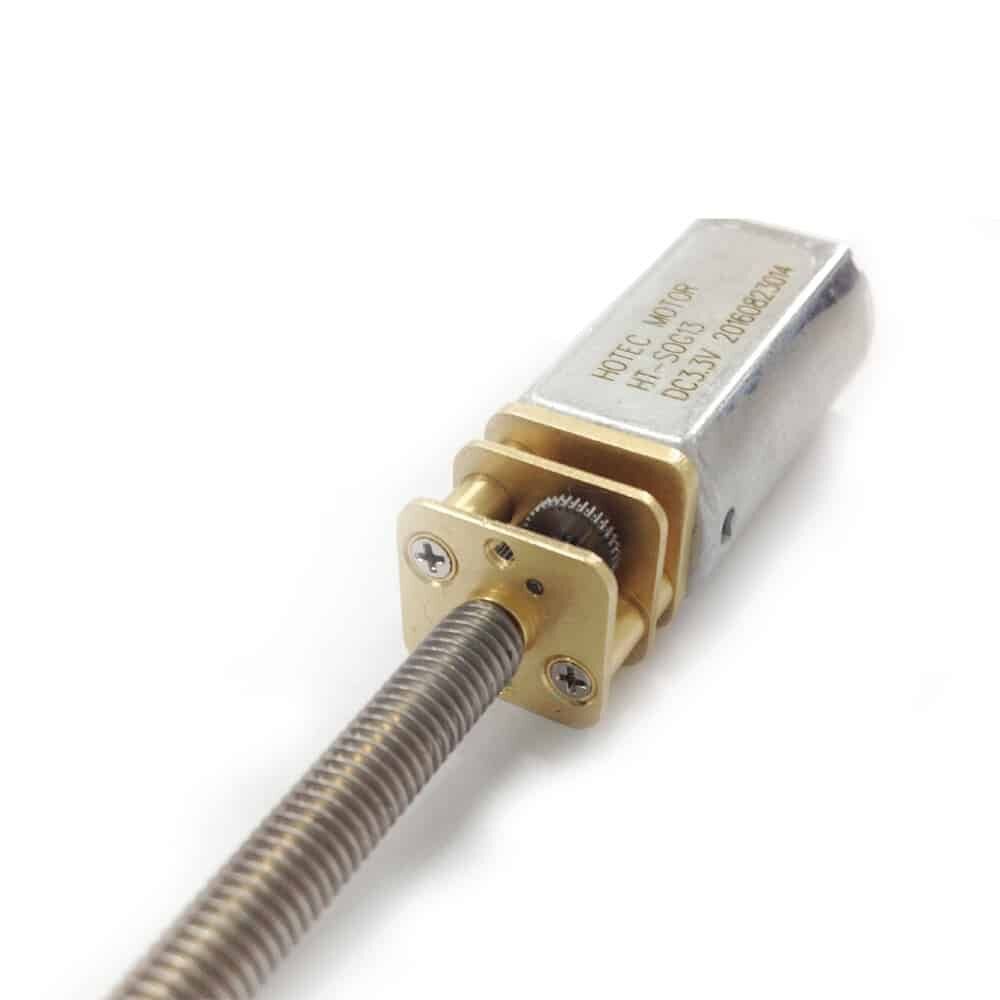

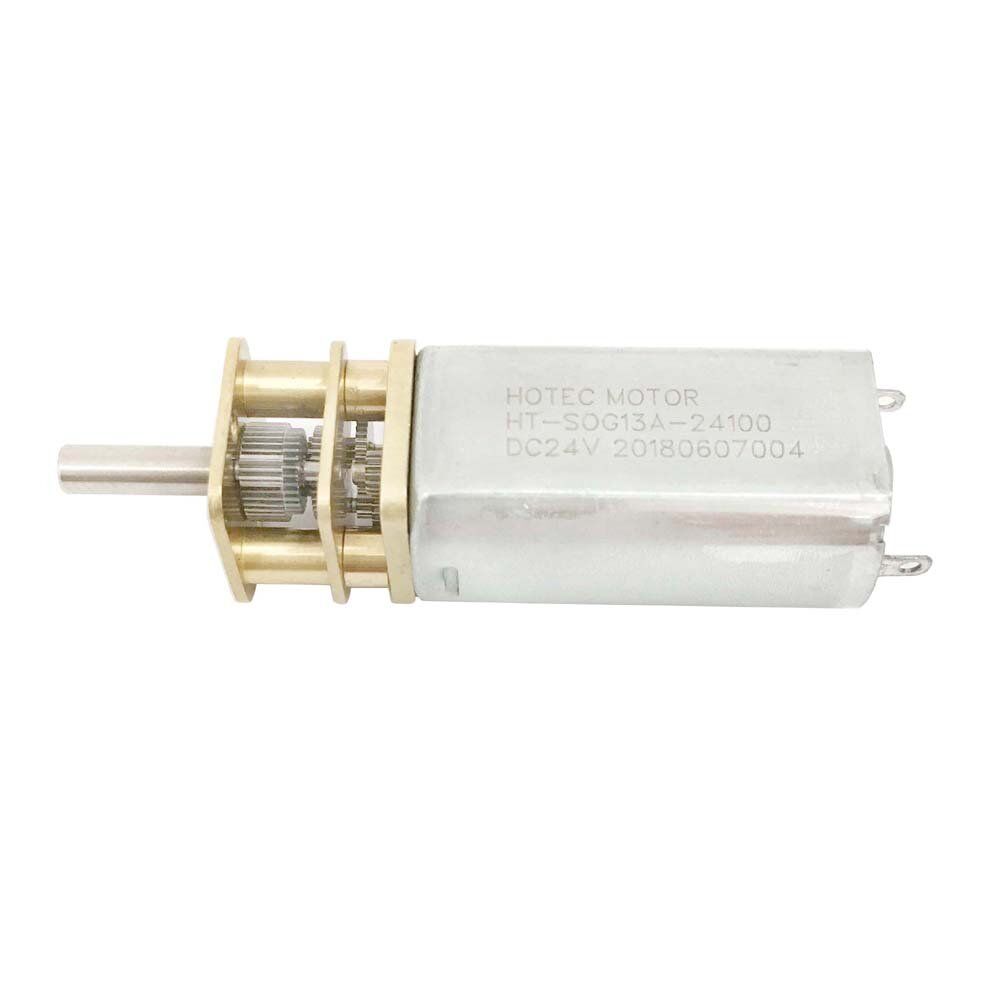

13mm HT-SOG13A Spur geared DC Motors

13mm spur geared DC motors.

  • Gearbox diameter: 13*12mm
  • Output shaft diameter: 3mm
  • Output shaft position: Center shafts.
  • DC motors: Brushed DC motor
  • Gear reduction: Spur gear reduction
  • Voltage range: DC 1V~24V
  • Speed range: 8 RPM~1200 RPM
  • orque: 0.05kg.cm~4kg.cm
  • Brush: Carbon brush or metal brush.
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage2345
Gear Ratio1035115
63150
86360
Gearbox length “L” (mm)11

Dimension Drawing

Dimension drawing for HT-SOG13A DC gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG13A-06724.5-13.512.0VDC1200≤0.051000≤0.190.08
HT-SOG13A-06304.5-13.512.0VDC342≤0.05274≤0.190.28
HT-SOG13A-052604.5-13.512.0VDC190≤0.05148≤0.190.5
HT-SOG13A-051454.5-13.512.0VDC139≤0.05104≤0.190.65
HT-SOG13A-051004.5-13.512.0VDC104≤0.0576≤0.190.88
HT-SOG13A-05804.5-13.512.0VDC80≤0.0558≤0.191.1
HT-SOG13A-05604.5-13.512.0VDC48≤0.0535≤0.191.8
HT-SOG13A-031564.5-13.512.0 VDC33≤0.1024≤0.502.5
HT-SOG13A-03861.5-7.05.0VDC117≤0.1085≤0.500.4
HT-SOG13A-03621.5-7.05.0VDC64≤0.1046≤0.500.6
HT-SOG13A-03361.5-6.05.0VDC50≤0.1036≤0.500.8
HT-SOG13A-03151.5-6.03VDC21≤0.1014≤0.501.7
