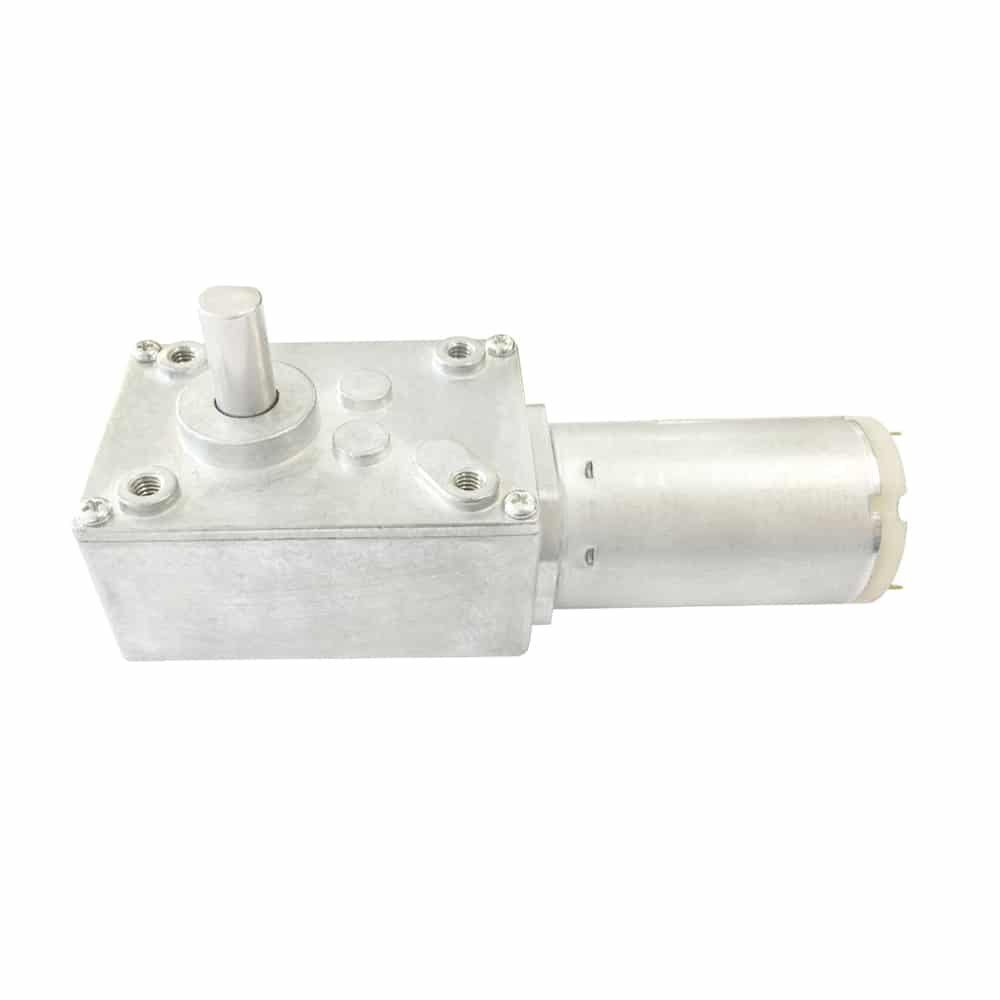

58x40mm HT-WOG58B Worm Geared DC Motors

Micro Worm Gear DC Motors

  • Output shaft diameter: 8 mm (customized)
  • Output shaft:  right angle
  • Gear reduction: Worm gear reduction
  • Voltage range: DC 6V~24V (customized)
  • Speed range: 1RPM~120RPM (customized)
  • Rated Torque: 1kg.cm~80kg.cm (customized)
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio495061269
74634
100
217
291

Dimension Drawing

Dimension drawing for HT-WOG58B worm DC gear motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-WOG58B-121229.0-14.012VDC122≤0.20100≤0.503.5
HT-WOG58B-12609.0-14.012VDC60≤0.2050≤0.507
HT-WOG58B-12279.0-14.012VDC27≤0.2023≤0.5014.5
HT-WOG58B-12209.0-14.012VDC20≤0.2017≤0.5019
HT-WOG58B-12289.0-14.012VDC28≤0.2023≤0.5038
HT-WOG58B-12119.0-14.012VDC11≤0.2010≤0.5032
HT-WOG58B-12919.0-14.012VDC91≤0.2067≤0.504
HT-WOG58B-12459.0-14.012VDC45≤0.1836≤0.504.8
HT-WOG58B-12159.0-14.012VDC15≤0.1812≤0.4514
HT-WOG58B-12079.0-14.012VDC7≤0.185≤0.4531
HT-WOG58B-123.59.0-14.012VDC3.5≤0.183≤0.4561

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
