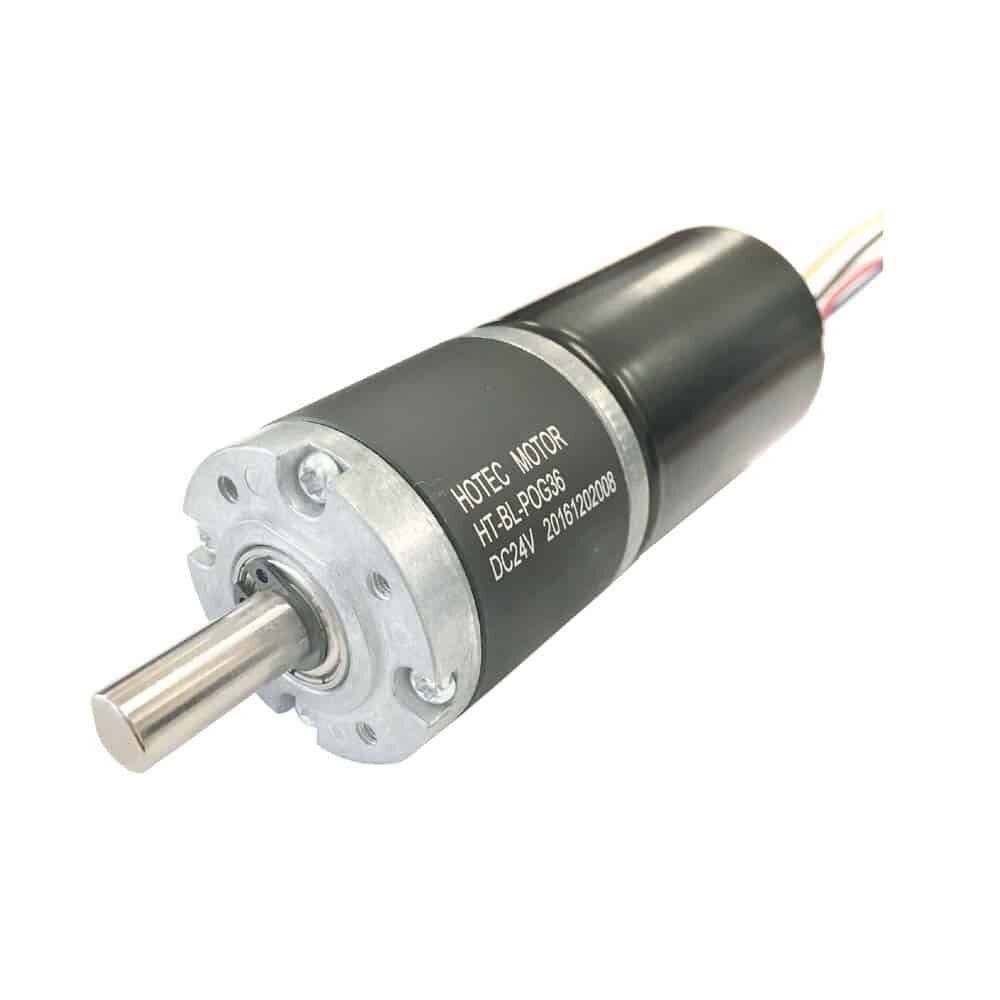

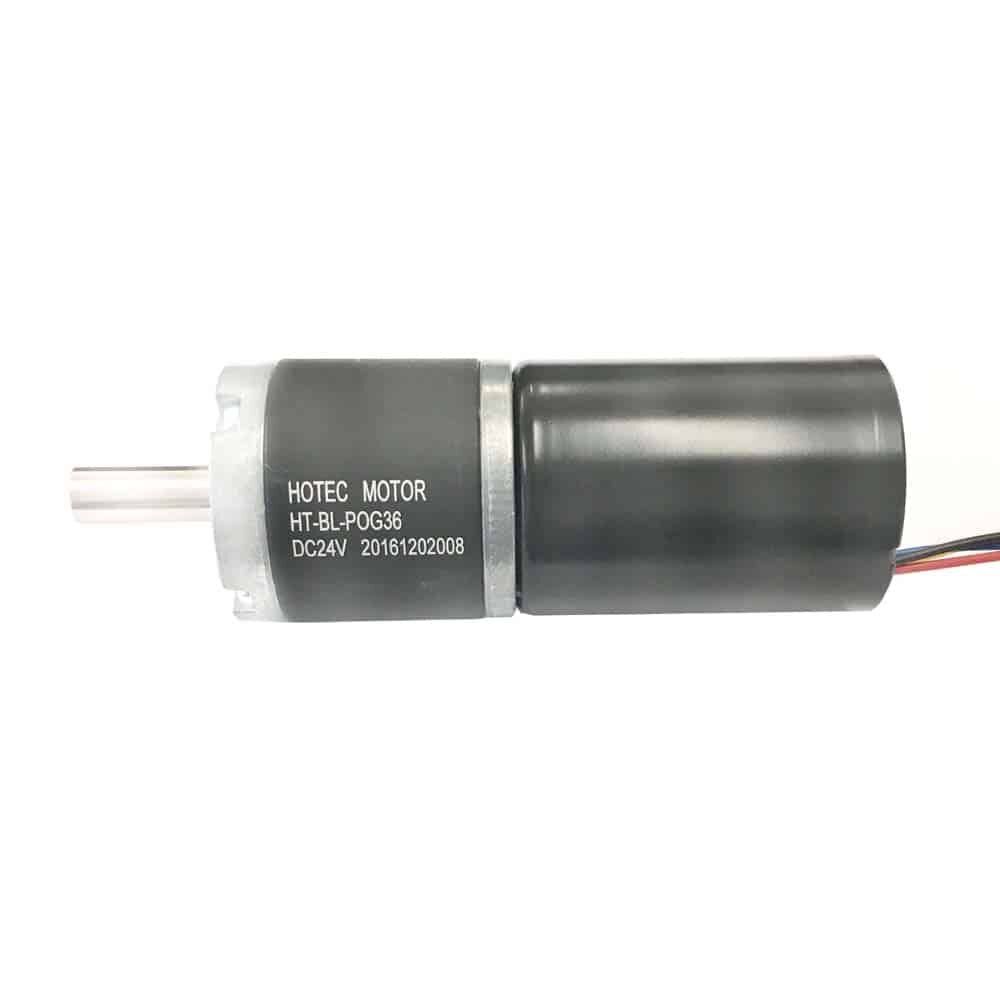

36mm diameter HT-BL-POG36A Brushless Planetary Gear DC motors

36mm diameter planetary geared brushless DC Motors.

  • Gearbox diameter: 36 mm
  • Output shaft diameter:  8mm (customized option)
  • Output shaft position:  Concentric shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: Customized between 6V-30V
  • Speed range: Customized between 1RPM~1500RPM
  • Rated Torque: Customized between 0.4 kg.cm~60 kg.cm
  • Wiring funciton 1: CW/CCW output direction control.
  • Wiring function 2: FG signal
  • Wiring function 3: PWM speed control
  • Wiring function 4: Brake

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio3.71451188977
5.219712641367
271003691910
1395162671
7213736
Gearbox length “L” (mm)2532.538.544.751

Dimension Drawing

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-BL-POG36A-1212009.0-15.012VDC1200≤0.34980≤1.751
HT-BL-POG36A-124309.0-15.012VDC430≤0.34360≤1.752.1
HT-BL-POG36A-123209.0-15.012VDC320≤0.34275≤1.753
HT-BL-POG36A-122259.0-15.012VDC225≤0.34190≤1.754.5
HT-BL-POG36A-121209.0-15.012VDC120≤0.3495≤1.758
HT-BL-POG36A-12859.0-15.012VDC85≤0.3468≤1.7510
HT-BL-POG36A-12609.0-15.012VDC60≤0.3451≤1.7515
HT-BL-POG36A-12459.0-15.012VDC45≤0.3436≤1.7520
HT-BL-POG36A-12309.0-15.012VDC30≤0.3426≤1.7532
HT-BL-POG36A-12239.0-15.012VDC23≤0.3419≤1.7542
HT-BL-POG36A-12069.0-15.012VDC6≤0.345≤1.7560*
HT-BL-POG36A-121.89.0-15.012VDC1.8≤0.341.2≤1.75 60*

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
