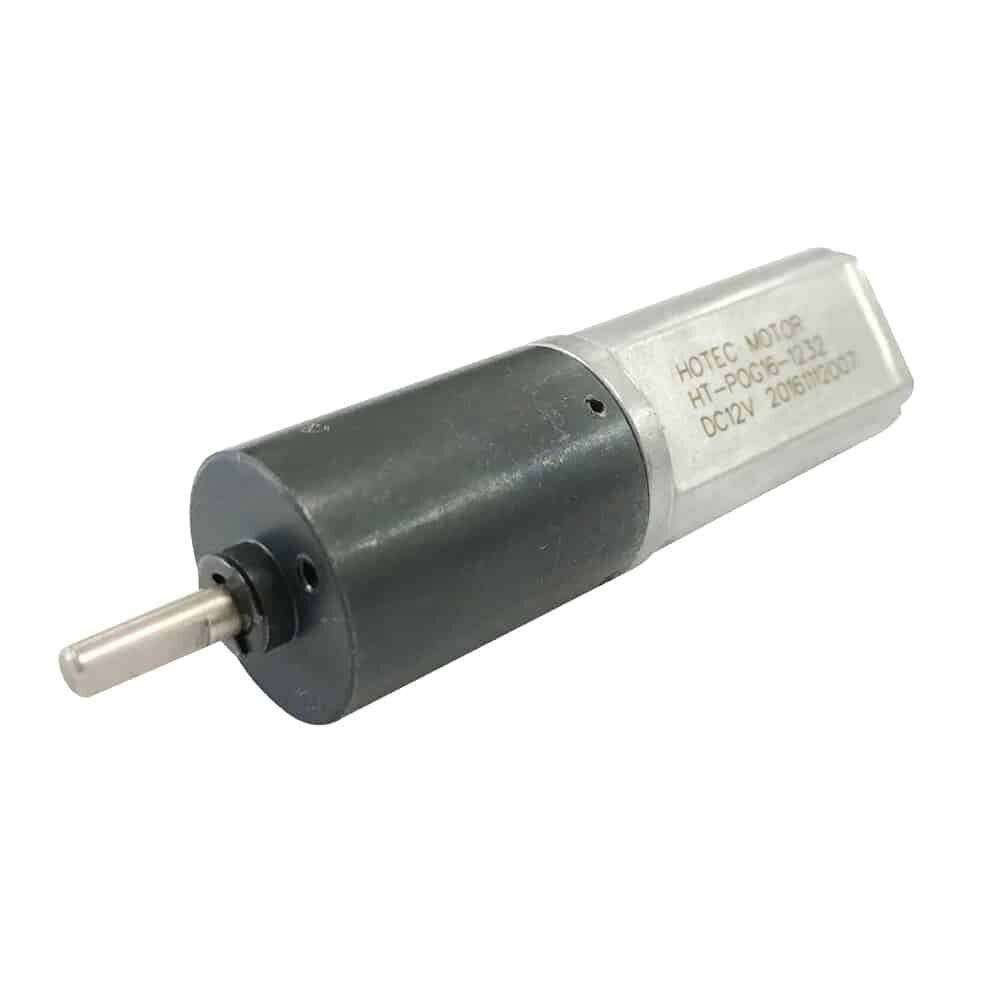

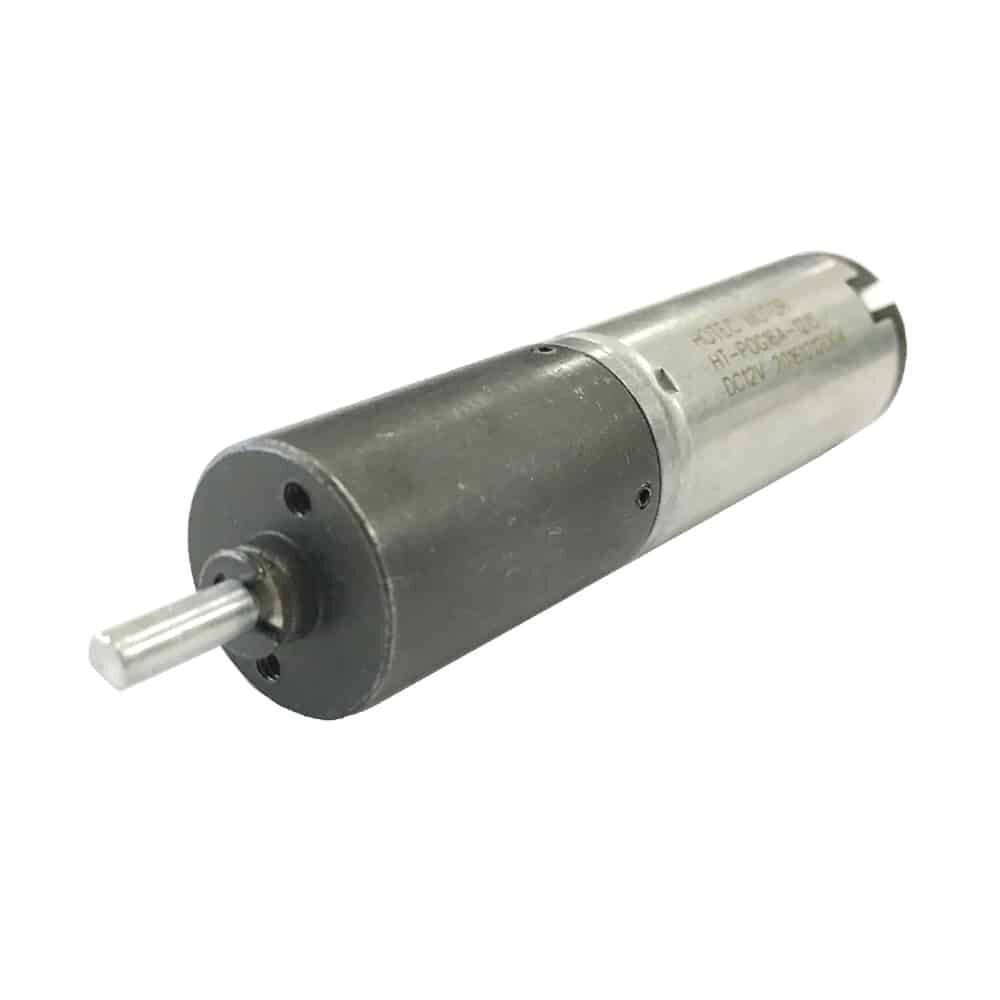

16mm diameter HT-POG16 Planetary Geared DC Motors

16mm diameter Planetary gear motors.

  • Gearbox diameter: 16 mm
  • Output shaft diameter:  3mm (customized option)
  • Output shaft position:  concentric shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: customized between 1V-30V, typically DC 3V~24V
  • Speed range: customized between 1RPM~2000RPM
  • Rated Torque: customized between 0.05kg.cm~5kg.cm
  • Motor brush: Metal brush or Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio41243150712
4.716642561024
19763041216
22.5903611444
1074281715
2418
Gearbox length “L” (mm)1417.52124.528

Dimension Drawing

Dimension drawing for 16mm planetary gear motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-POG16A-125808.0-14.012VDC580≤0.04460≤0.100.09
HT-POG16A-124108.0-14.012VDC410≤0.04305≤0.100.13
HT-POG16A-122058.0-14.012VDC205≤0.04150≤0.100.21
HT-POG16A-121458.0-14.012VDC145≤0.04110≤0.100.33
HT-POG16A-121008.0-14.012VDC100≤0.0478≤0.100.45
HT-POG16A-12828.0-14.012VDC82≤0.0460≤0.100.58
HT-POG16A-12608.0-14.012VDC60≤0.0445≤0.100.75
HT-POG16A-12358.0-14.012VDC35≤0.0425≤0.101.3
HT-POG16A-12258.0-14.012VDC25≤0.0418≤0.101.75
HT-POG16A-12208.0-14.012VDC20≤0.0415≤0.102.2
HT-POG16A-12128.0-14.012VDC12≤0.048.5≤0.103.3
HT-POG16A-123.68.0-14.012VDC3.6≤0.041.8≤0.105*

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
