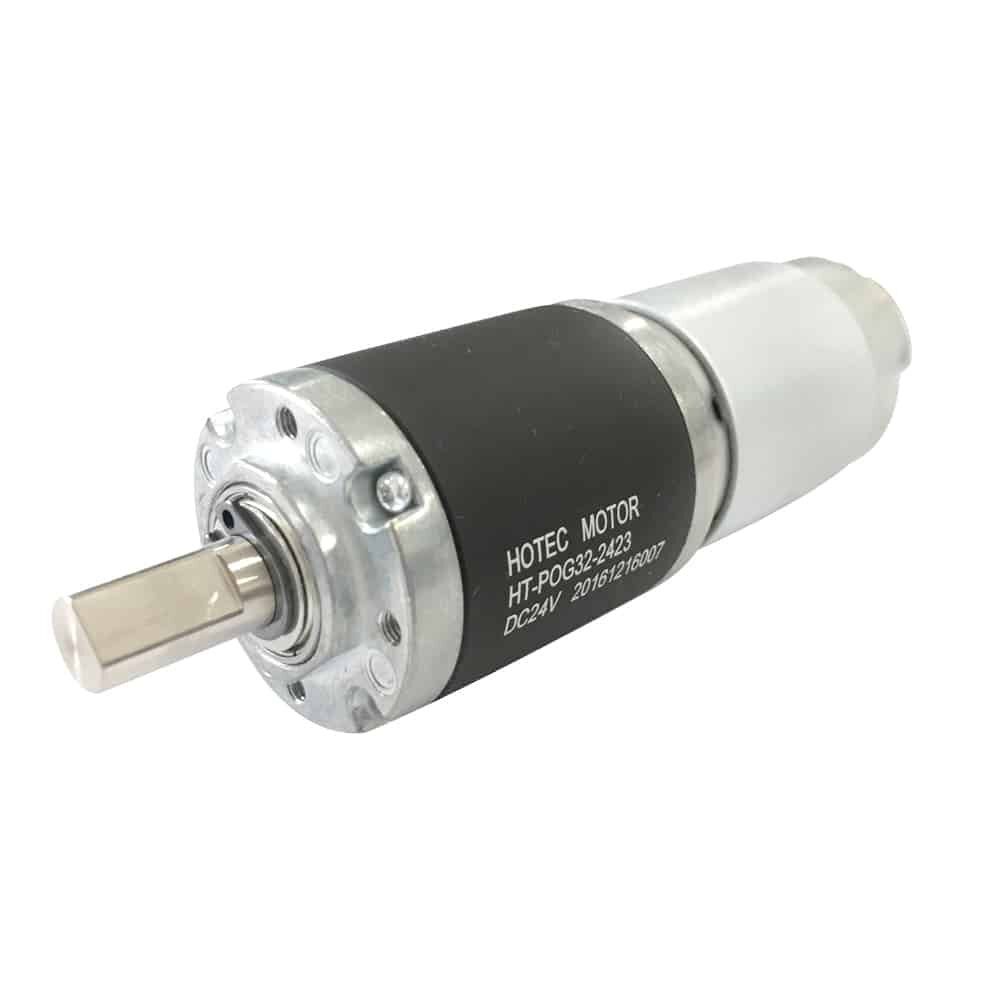

32mm diameter HT-POG32 Planetary Geared DC Motors

32mm Diameter Planetary gearmotors

  • Gearbox diameter: 32 mm
  • Output shaft diameter:  8mm (customized option)
  • Output shaft position:  concentric shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: customized between 6V-30V
  • Speed range: customized between 1RPM~2000RPM
  • Rated Torque: customized between 0.1kg.cm~40kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio41451189977
519712641367
271003691911
1395192672
7213736
Gearbox length “L” (mm)21.127.333.539.746

Dimension Drawing

Dimension drawing for 32mm planetary gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-POG32-1216009.0-14.012VDC1600≤0.231400≤1.250.35
HT-POG32-124309.0-14.012VDC430≤0.23370≤1.251.2
HT-POG32-123209.0-14.012VDC320≤0.23275≤1.251.9
HT-POG32-122259.0-14.012VDC225≤0.23190≤1.252.9
HT-POG32-121209.0-14.012VDC120≤0.2395≤1.253.7
HT-POG32-12859.0-14.012VDC85≤0.2366≤1.255.3
HT-POG32-12609.0-14.012VDC60≤0.2345≤1.257.2
HT-POG32-12459.0-14.012VDC45≤0.2336≤1.2514
HT-POG32-12309.0-14.012VDC30≤0.2326≤1.2518.5
HT-POG32-12239.0-14.012VDC23≤0.2319≤1.2525
HT-POG32-12159.0-14.012VDC15≤0.2313≤1.2535
HT-POG32-124.59.0-14.012VDC4.5≤0.233.6≤1.25 40*
