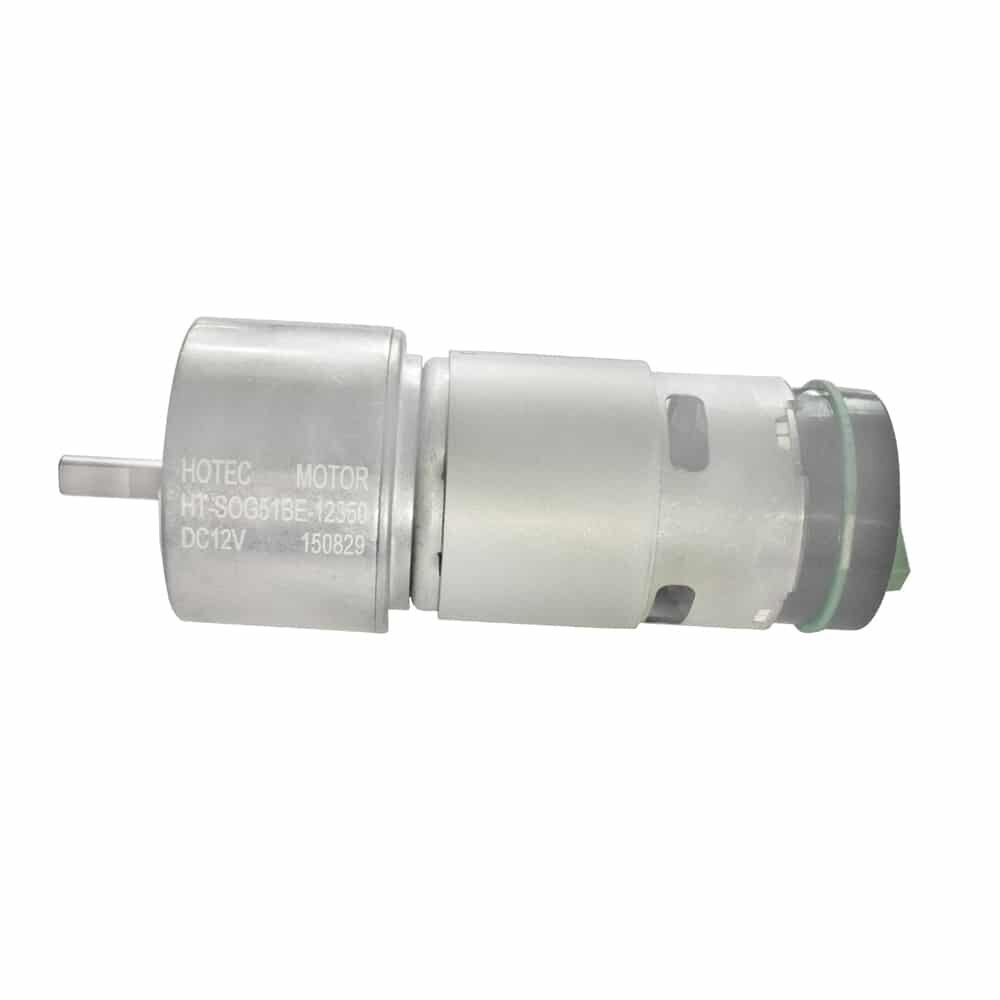

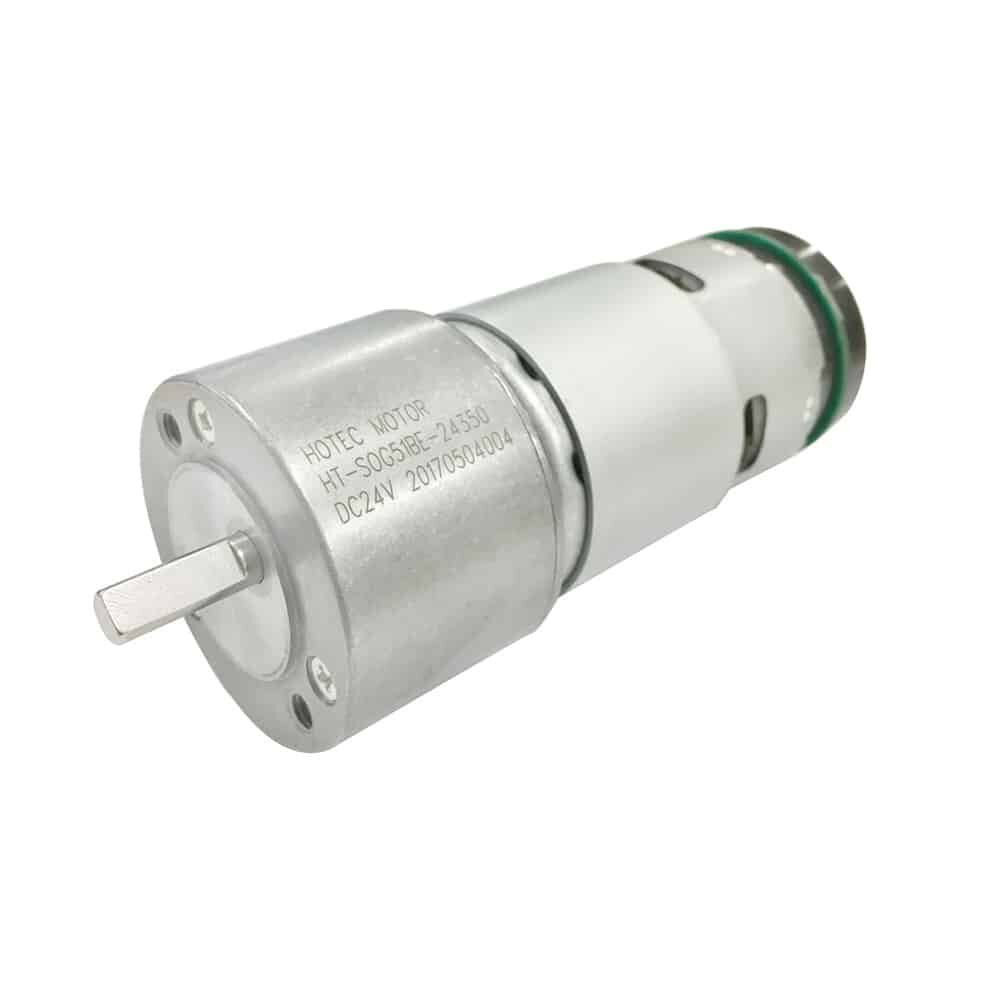

50mm diameter HT-SOG51B Spur Geared DC Motors

50mm diameter Spur Gearbox Motors

  • Gearbox diameter: 50mm
  • Output shaft diameter: 6.35mm (optional customization)
  • Output shaft position:  side shaft
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between DC 12V~24V
  • Speed range: customized between 2RPM~1200 RPM
  • Rated Torque: customized between 1 kg.cm~35 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage23456
Gear Ratio62065.5218728
10331103671223
Gearbox length “L” (mm)37.5

Dimension Drawing

Dimension drawing for 50mm DC gearbox motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-SOG51B-1212009.0-28.012VDC1200≤0.71000≤6.152.4
HT-SOG51B-129009.0-28.012VDC900≤0.7810≤6.153.25
HT-SOG51B-127209.0-28.012VDC720≤0.7610≤6.154.05
HT-SOG51B-123859.0-28.012VDC385≤0.7290≤6.157.15
HT-SOG51B-122009.0-28.012VDC200≤0.7170≤6.1511
HT-SOG51B-121159.0-28.012VDC115≤0.788≤6.1522.5
HT-SOG51B-12659.0-28.012VDC65≤0.750≤6.1536
HT-SOG51B-12339.0-28.012VDC33≤0.725≤6.1560
HT-SOG51B-12209.0-28.012VDC20≤0.714≤6.1571*
HT-SOG51B-12109.0-28.012VDC10≤0.77.5≤6.1571*
HT-SOG51B-12069.0-28.012VDC6≤0.74≤6.1571*
HT-SOG51B-12259.0-28.012VDC25≤0.718≤6.1558*

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
