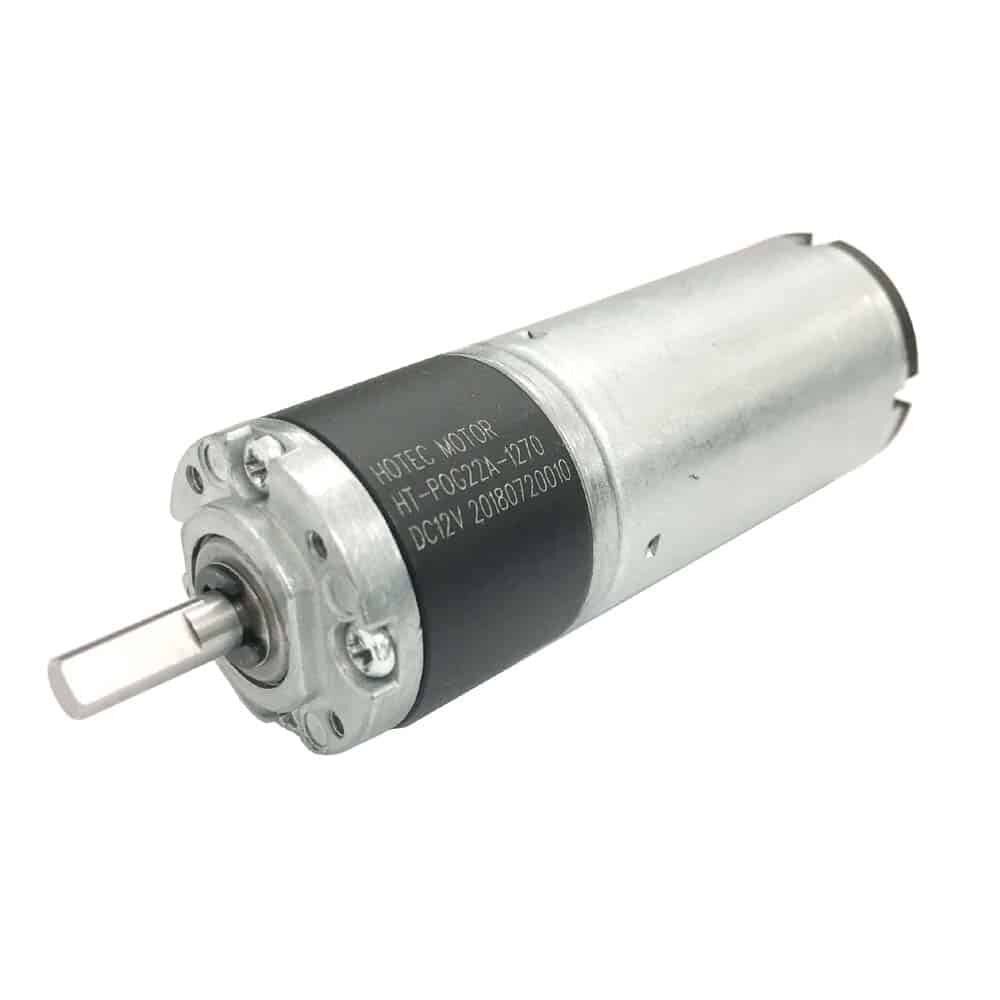

22mm diameter HT-POG22A Planetary Geared DC Motors

22mm diameter Planetary Gear motors

  • Gearbox diameter: 22 mm
  • Output shaft diameter:  4mm (customized option)
  • Output shaft position:  concentric shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: customized between 1V-30V, typically DC 3V~24V
  • Speed range: customized between 1RPM~2000RPM
  • Rated Torque: customized between 0.1kg.cm~8kg.cm
  • Motor brush: Metal brush or Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio41453150867
16622311014
19722701249
843161386
1043701969
455
Gearbox length “L” (mm)14.41821.725.329

Dimension Drawing

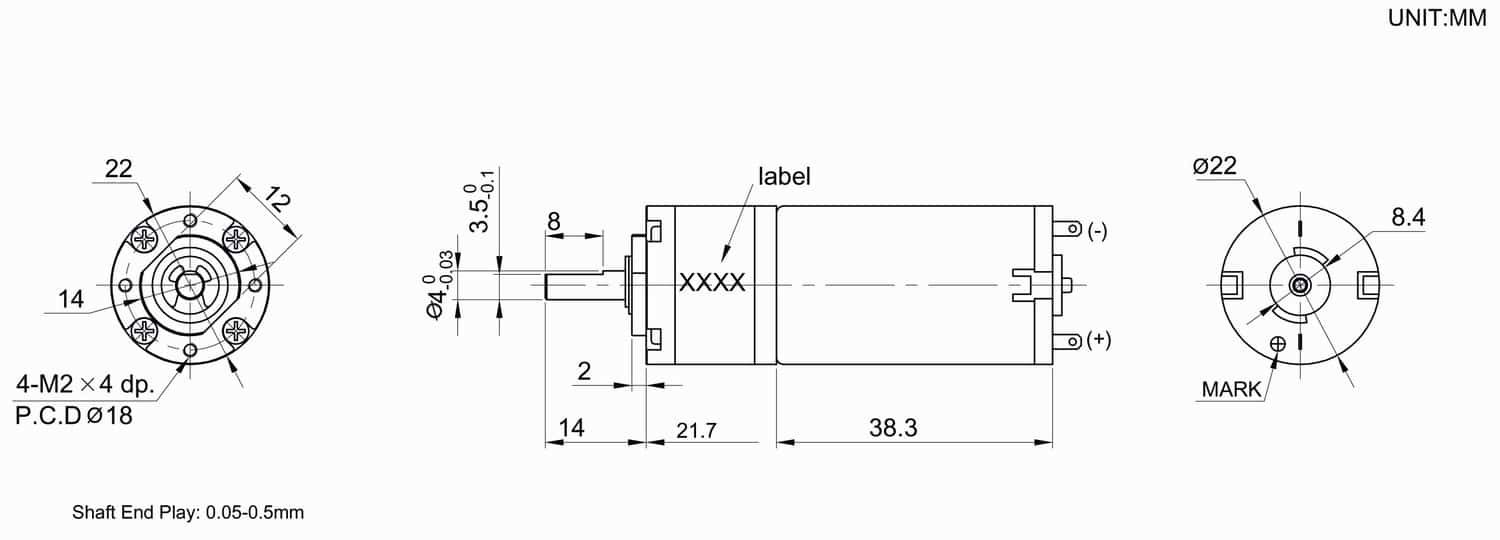

Dimension drawing for HT-POG22A planetary gear motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-POG22A-24152012.0-24.024VDC1520≤0.091310≤0.230.16
HT-POG22A-2438012.0-24.024VDC380≤0.09325≤0.230.66
HT-POG22A-2432012.0-24.024VDC320≤0.09272≤0.230.82
HT-POG22A-2411512.0-24.024VDC115≤0.0995≤0.231.95
HT-POG22A-249512.0-24.024VDC95≤0.0980≤0.232.35
HT-POG22A-248212.0-24.024VDC82≤0.0970≤0.232.68
HT-POG22A-247112.0-24.024VDC71≤0.0960≤0.233.55
HT-POG22A-245812.0-24.024VDC58≤0.0947≤0.233.95
HT-POG22A-244012.0-24.024VDC40≤0.0932≤0.236
HT-POG22A-242212.0-24.024VDC22≤0.0918≤0.238.0*
HT-POG22A-240512.0-24.024VDC5≤0.093.8≤0.238.0*
HT-POG22A-240312.0-24.024VDC3≤0.092.5≤0.238.0*
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
