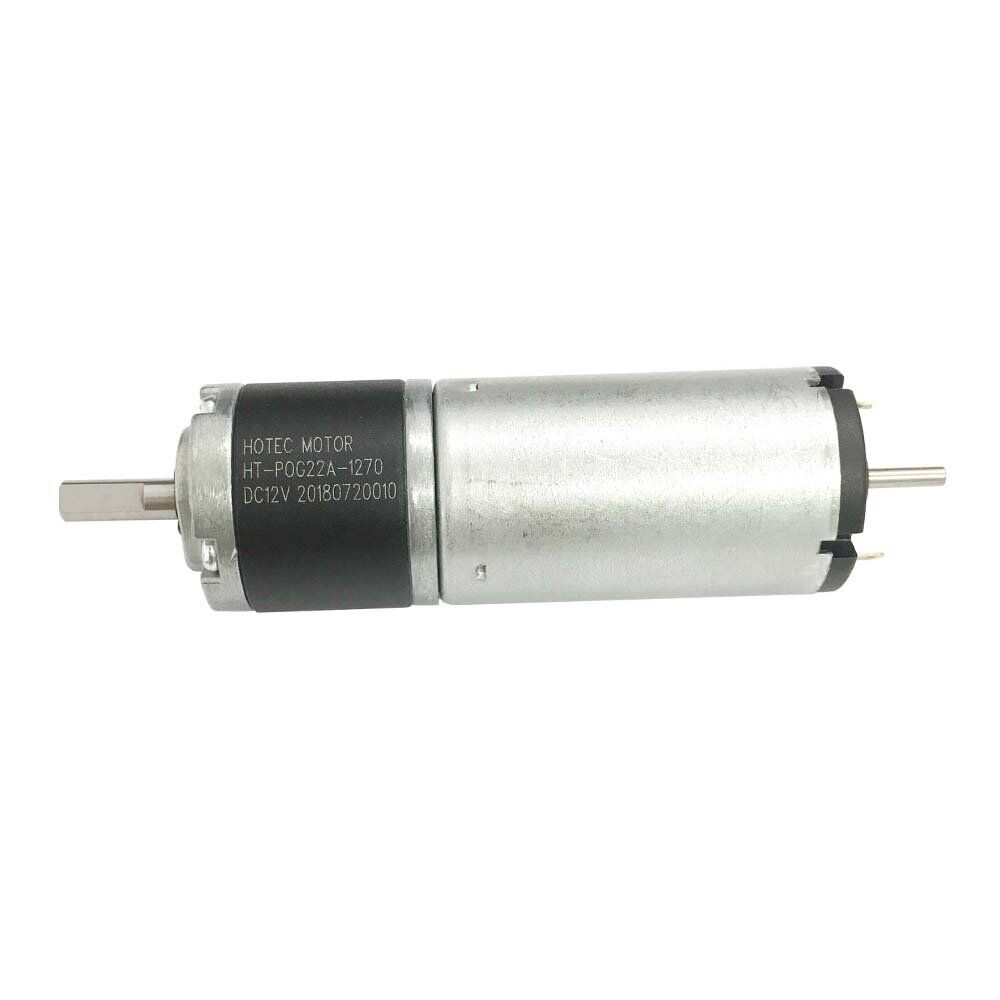

22mm diameter HT-POG22B Planetary Geared DC Motors

22mm diameter planetary geared DC Motors.

  • Gearbox diameter: 22 mm
  • Output shaft diameter:  4mm (customized option)
  • Output shaft position:  concentric shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: customized between 1V-30V, typically DC 3V~24V
  • Speed range: customized between 1RPM~2000RPM
  • Rated Torque: customized between 0.1kg.cm~8kg.cm
  • Motor brush: Metal brush or Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio41453150867
16622311014
19722701249
843161386
1043701969
455
Gearbox length “L” (mm)14.41821.725.329

Dimension Drawing

Dimension drawing for 22mm planetary gear motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-POG22B-124206.0-12.012VDC420≤0.07330≤0.230.26
HT-POG22B-123526.0-12.012VDC352≤0.07275≤0.230.3
HT-POG22B-121206.0-12.012VDC120≤0.07100≤0.230.8
HT-POG22B-12906.0-12.012VDC90≤0.0774≤0.231.15
HT-POG22B-12756.0-12.012VDC75≤0.0760≤0.231.35
HT-POG22B-12606.0-12.012VDC60≤0.0750≤0.231.6
HT-POG22B-12456.0-12.012VDC45≤0.0735≤0.232.2
HT-POG22B-12306.0-12.012VDC30≤0.0722≤0.233.35
HT-POG22B-12206.0-12.012VDC20≤0.0716≤0.234.6
HT-POG22B-12146.0-12.012VDC14≤0.0711≤0.236.1
HT-POG22B-12086.0-12.012VDC8≤0.076≤0.238.5*
HT-POG22B-124.56.0-12.012VDC4.5≤0.073.2≤0.238.5*
