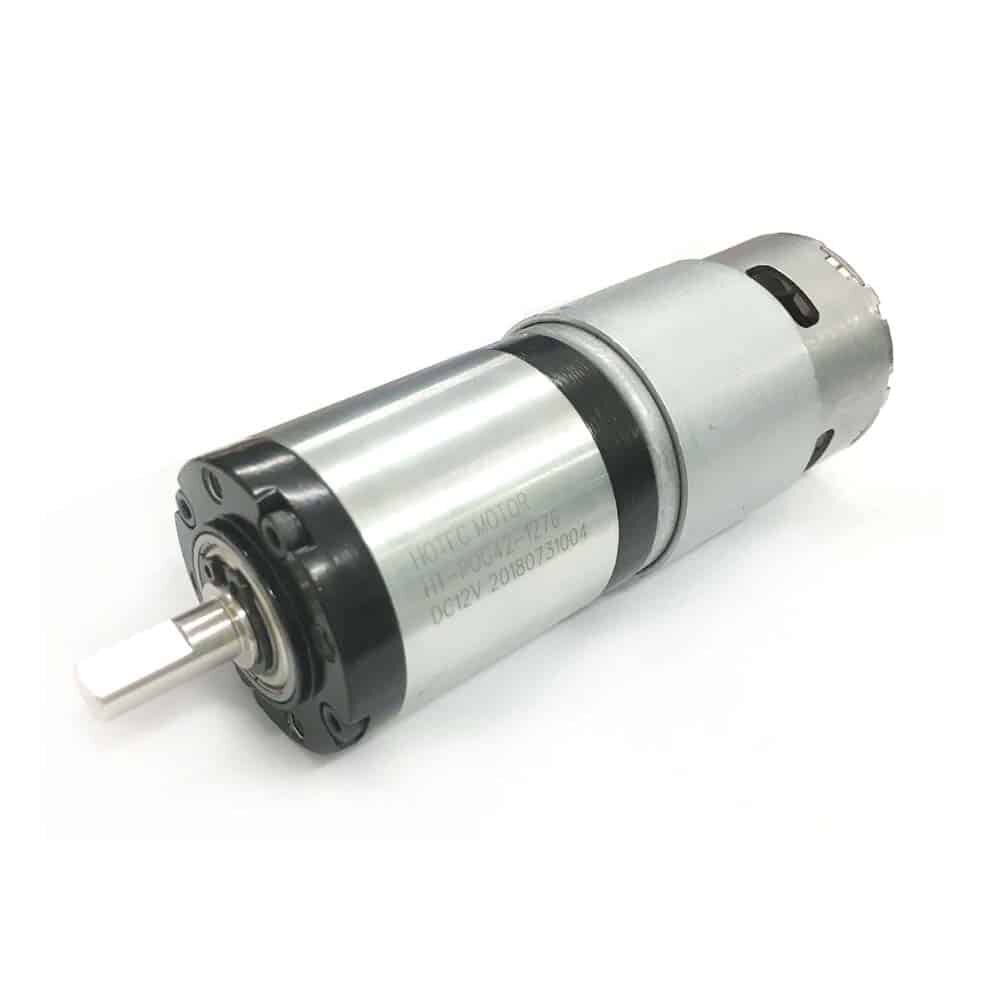

42mm diameter HT-POG42 Planetary Geared DC Motors

42mm Diameter Planetary Gearbox DC motors with customized performance

  • Gearbox diameter: 42 mm
  • Output shaft diameter:  8mm (customized option)
  • Output shaft position:  concentric shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: customized between 10-30V,typically 12V or 24V
  • Speed range: customized between 1RPM~1500RPM
  • Rated Torque: customized between 1 kg.cm~150 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio41032139700
2051188977
712641367
1003691911
5162672
Gearbox Length(L)mm31.843.554.565.777

Dimension Drawing

Dimension drawing for 42mm planetary gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minmAr/minAkg.cm
HT-POG42-247506-12V12VDC7501105600.51.5
HT-POG42-241586-12V12VDC3001102250.53.2
HT-POG42-241116-12V12VDC1501101100.56.5
HT-POG42-24596-12V12VDC60110420.515
HT-POG42-24426-12V12VDC1111080.565
HT-POG42-24306-12V12VDC811060.590
HT-POG42-242212-24V24VDC150011011250.52.1
HT-POG42-241612-24V24VDC2001101500.514.5
HT-POG42-241112-24V24VDC30110200.580
HT-POG42-240812-24V24VDC22110150.5115
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
