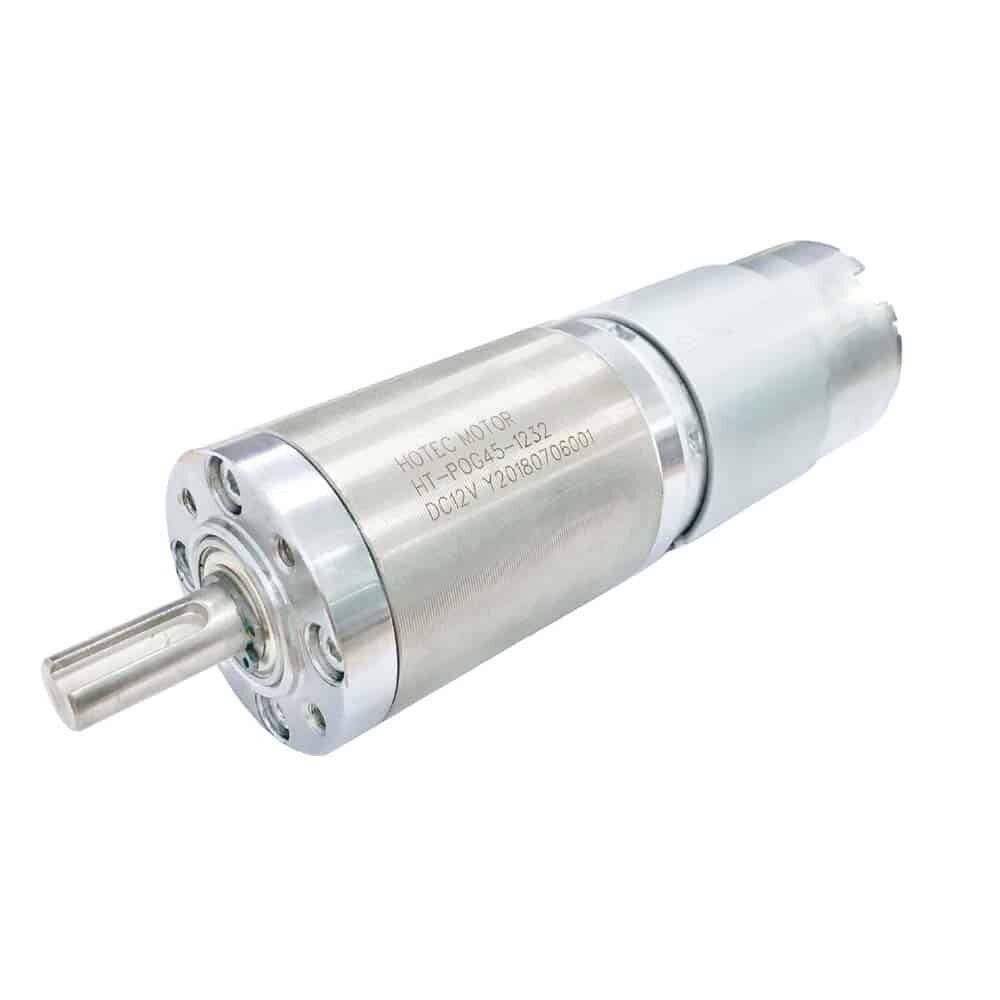

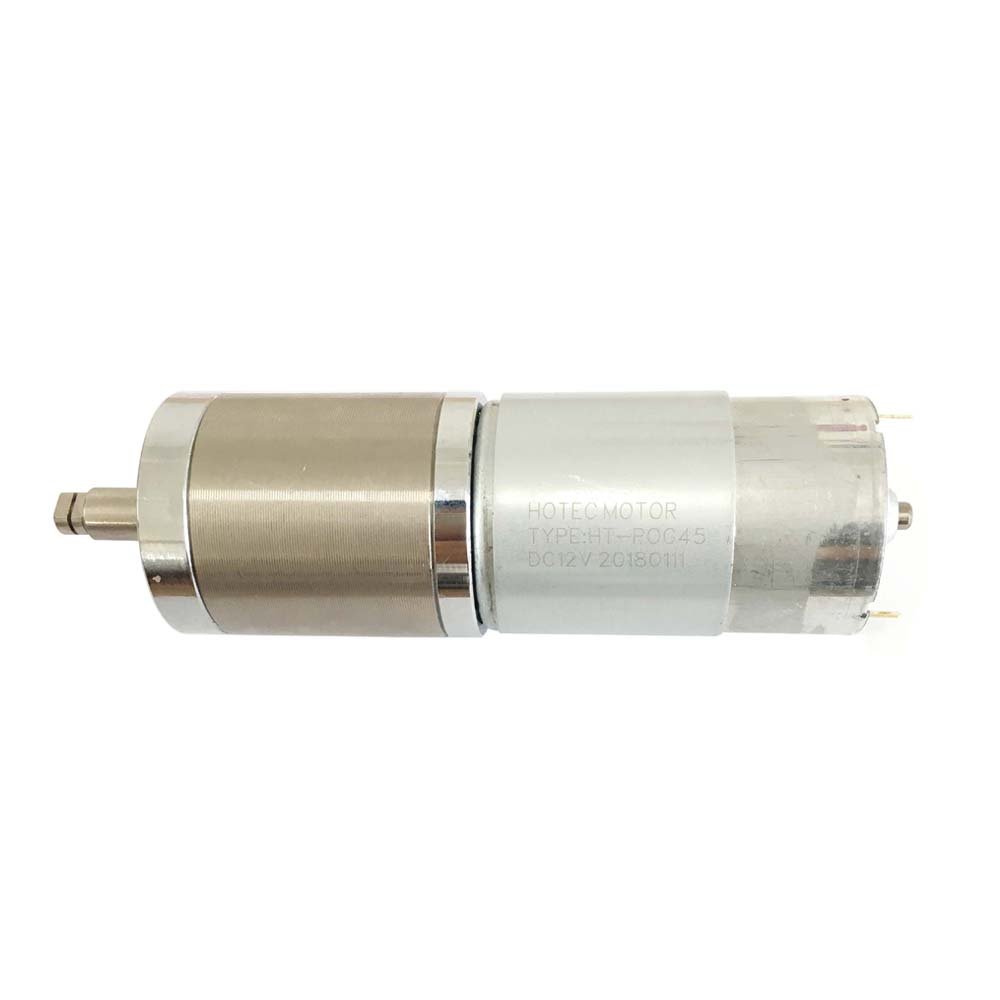

45mm diameter HT-POG45 Planetary Geared DC Motors

45 mm Diameter Planetary Gearbox DC Motors

  • Gearbox diameter: 45 mm
  • Output shaft diameter:  8 mm (customized option)
  • Output shaft position:  concentric shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: customized between 12V-30V, typically it’s 12V or 24V
  • Speed range: customized between 1RPM~1500RPM
  • Rated Torque: customized between 1 kg.cm~150 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio41032139700
13.750188977
19712641367
1003691911
5162672
Gearbox Length(L)mm33.64556.267.578.8

Dimension Drawing

Dimension drawing for 45mm Planetary gear motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minmAr/minAkg.cm
HT-POG45-129009-15V12VDC9004508102.02.3
HT-POG45-1214509-15V12VDC4504503602.06
HT-POG45-121669-15V12VDC1664501222.011
HT-POG45-12889-15V12VDC88450702.018
HT-POG45-12639-15V12VDC63450462.026
HT-POG45-12459-15V12VDC45450332.036
HT-POG45-12329-15V12VDC3245023.52.051
HT-POG45-12249-15V12VDC2445015.82.068
HT-POG45-12179-15V12VDC17450112.086
HT-POG45-12129-15V12VDC1245082.0120

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
