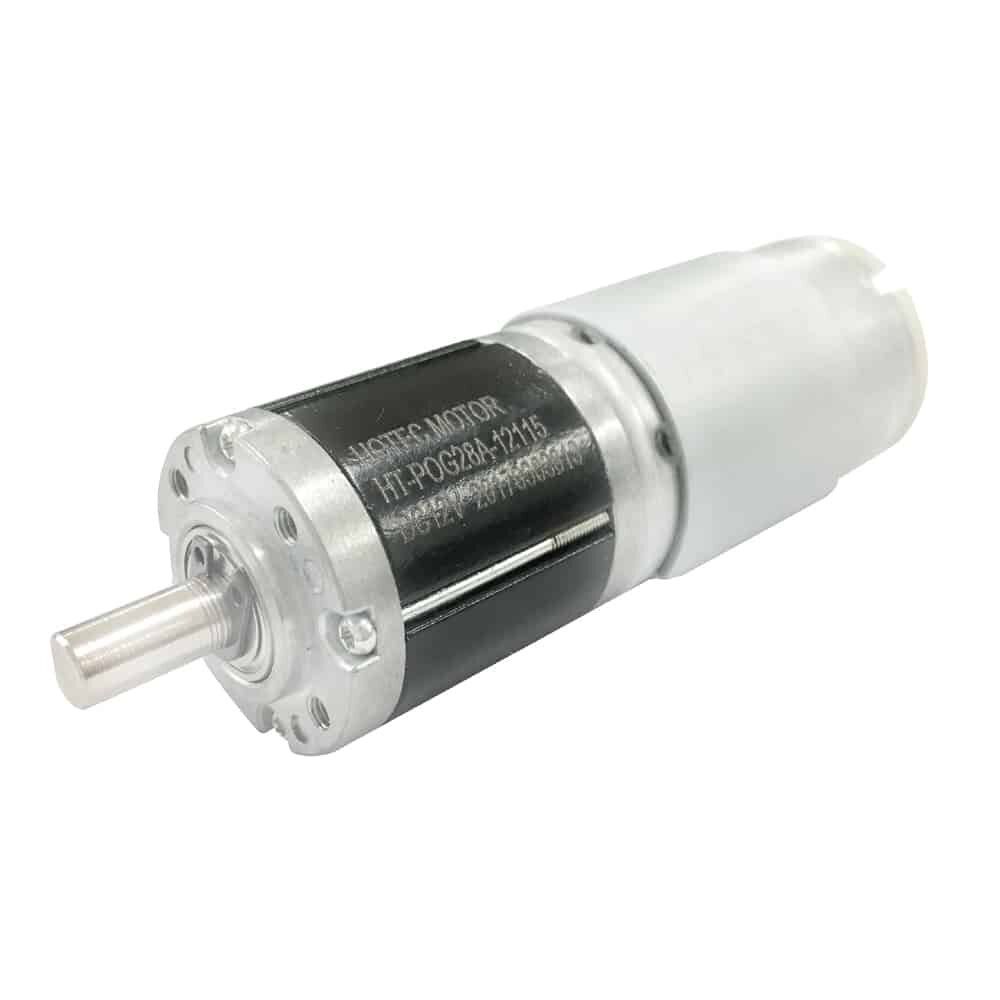

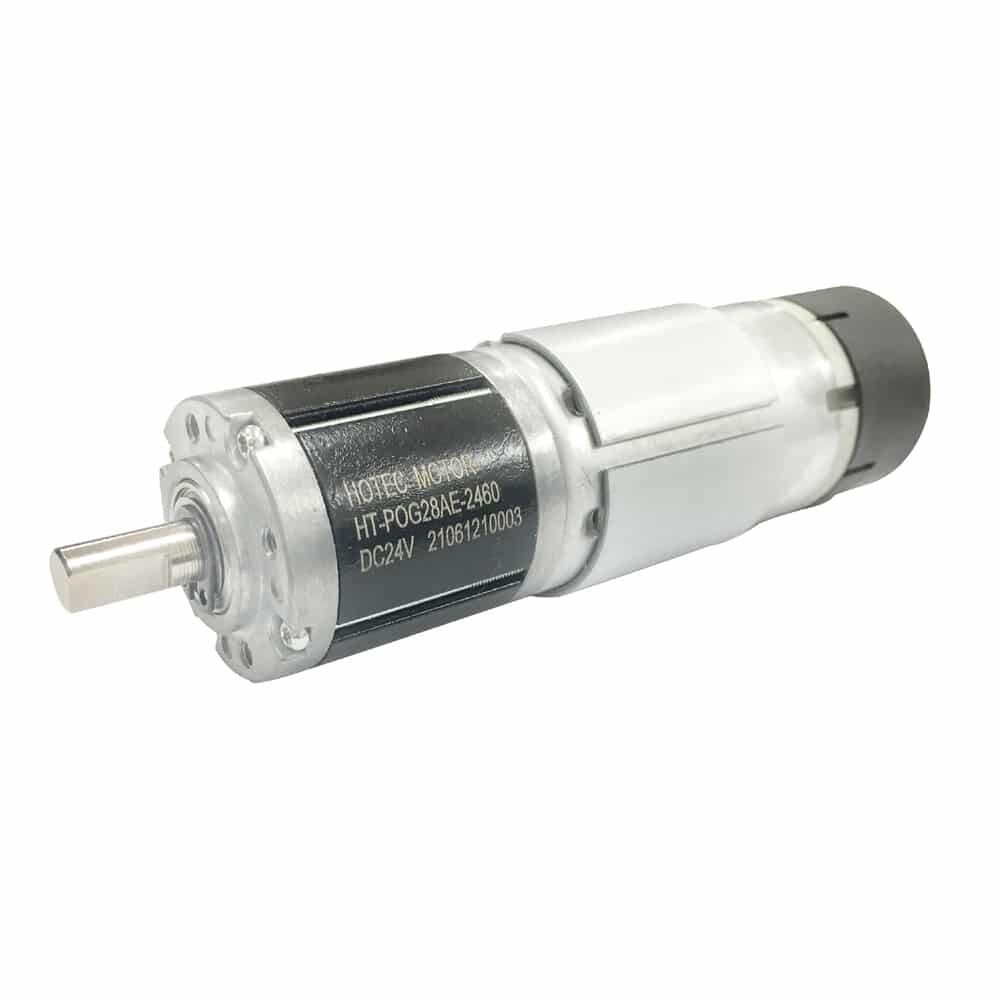

28mm diameter HT-POG28A Planetary Geared DC Motors

28mm Diameter Planetary geared DC Motors

  • Gearbox diameter: 28 mm
  • Output shaft diameter:  6mm (customized option)
  • Output shaft position:  concentric shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: customized between 6V-30V
  • Speed range: customized between 1RPM~2000RPM
  • Rated Torque: customized between 0.4kg.cm~40kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio3.41138126585
4.71651241810
21.5723341120
1004621549
2142
Gearbox length “L” (mm)20.5263237.543.3

Dimension Drawing

Dimension drawing for HT-POG28A planetary gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-POG28A-24130012.0-28.024VDC1300≤0.011150≤0.460.52
HT-POG28A-2455012.0-28.024VDC550≤0.01480≤0.461.05
HT-POG28A-2438012.0-28.024VDC380≤0.01330≤0.461.5
HT-POG28A-2428012.0-28.024VDC280≤0.01245≤0.462
HT-POG28A-2416012.0-28.024VDC160≤0.01140≤0.463.2
HT-POG28A-2412012.0-28.024VDC120≤0.01102≤0.464.5
HT-POG28A-248512.0-28.024VDC85≤0.0173≤0.466.1
HT-POG28A-246012.0-28.024VDC60≤0.0152≤0.468
HT-POG28A-245012.0-28.024VDC50≤0.0142≤0.469.8
HT-POG28A-242612.0-28.024VDC26≤0.0122≤0.4620
HT-POG28A-241412.0-28.024VDC14≤0.0111≤0.4630.0*
HT-POG28A-240412.0-28.024VDC4≤0.013≤0.4630*
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
