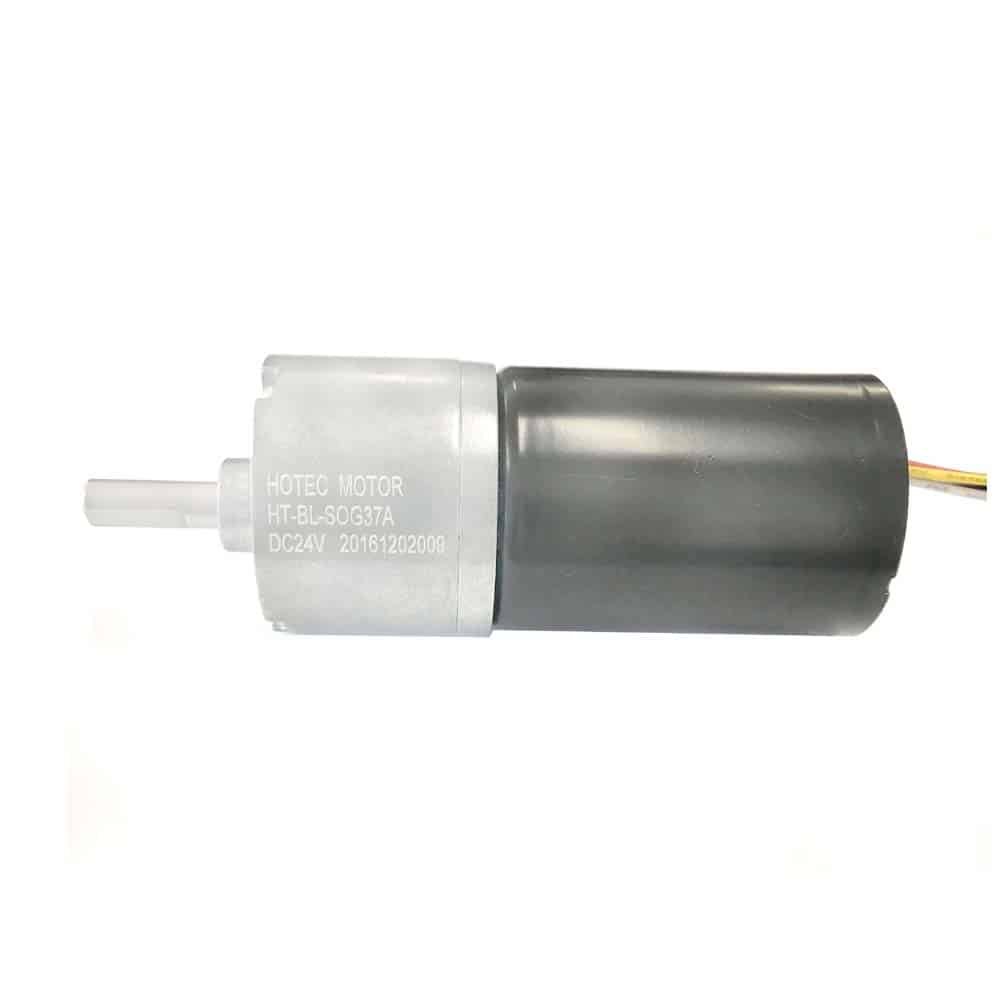

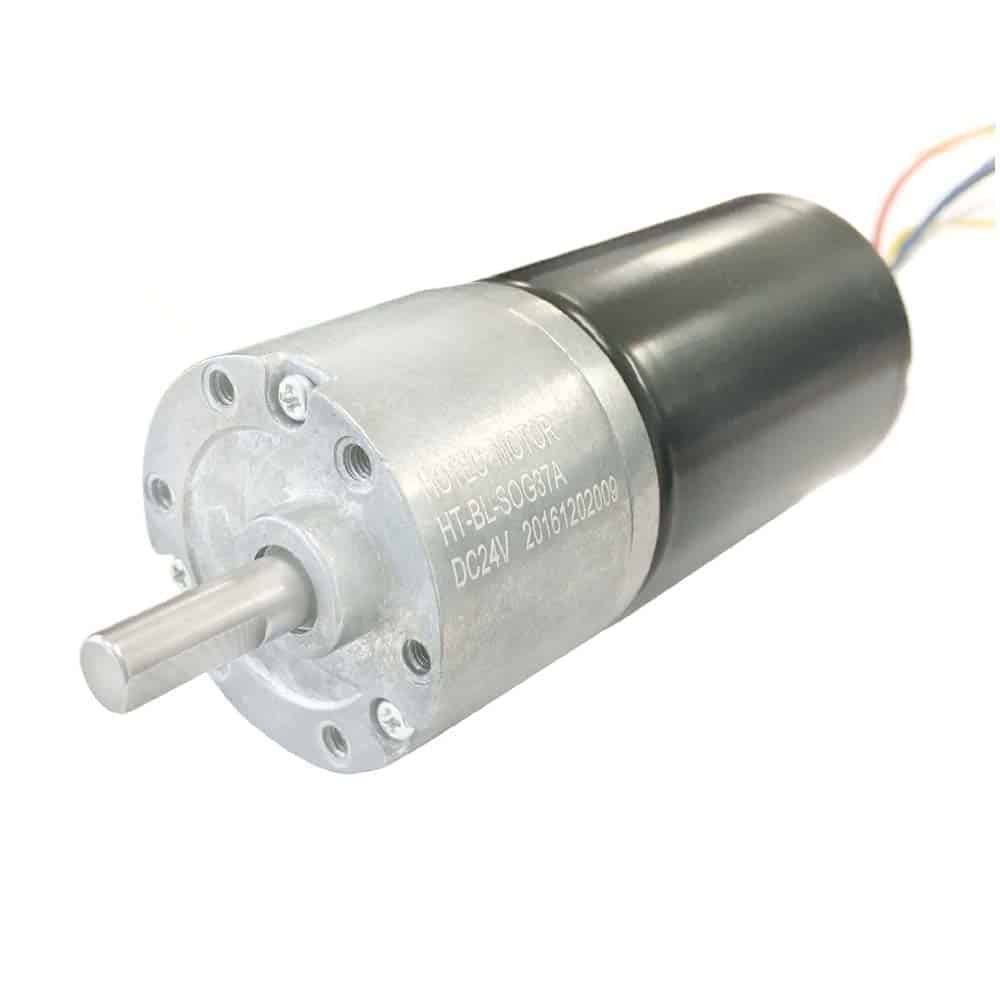

37mm diameter HT-BL-SOG37A Brushless DC Gear Motors

24V 37mm brushless spur gear Motors.
37mm brushless spur geared DC motors.
Category Tags ,

37mm diameter brushless spur geared DC motors

  • Gearbox diameter: 37mm
  • Output shaft diameter: 6mm(Optional Customization)
  • Output shaft position:  Side shaft
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between DC 10V~26V, typically it’s 12V or 24V
  • Speed range: customized between 3 RPM~600 RPM
  • Rated Torque: customized between 0.5 kg.cm~30 kg.cm
  • Wiring funciton 1: CW/CCW output direction control.
  • Wiring function 2: FG signal
  • Wiring function 3: PWM speed control
  • Wiring function 4: Brake

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Find out why

Gearbox Ratio

Gear Ratio Stage23456
Gear Ratio102050120450
3070150490
90210630
270810
Gearbox length “L” (mm)24.529

Dimension Drawing

Dimension drawing for HT-BL-SOG37A brushless gear motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-BL-SOG37A-1251010.0-14.012VDC510≤0.36395≤2.052.05
HT-BL-SOG37A-1225510.0-14.012VDC255≤0.36198≤2.053.8
HT-BL-SOG37A-1217010.0-14.012VDC170≤0.36130≤2.055.4
HT-BL-SOG37A-1210010.0-14.012VDC100≤0.3680≤2.058.5
HT-BL-SOG37A-127010.0-14.012VDC70≤0.3656≤2.0512.5
HT-BL-SOG37A-125410.0-14.012VDC54≤0.3645≤2.0515
HT-BL-SOG37A-124310.0-14.012VDC43≤0.3631≤2.0524
HT-BL-SOG37A-123410.0-14.012VDC34≤0.3626≤2.0532
HT-BL-SOG37A-122510.0-14.012VDC25≤0.3619≤2.0540*
HT-BL-SOG37A-121910.0-14.012VDC19≤0.3616≤2.0540*
HT-BL-SOG37A-121110.0-14.012VDC11≤0.368.5≤2.0540*
HT-BL-SOG37A-120810.0-14.012VDC8≤0.366≤2.0540*
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
