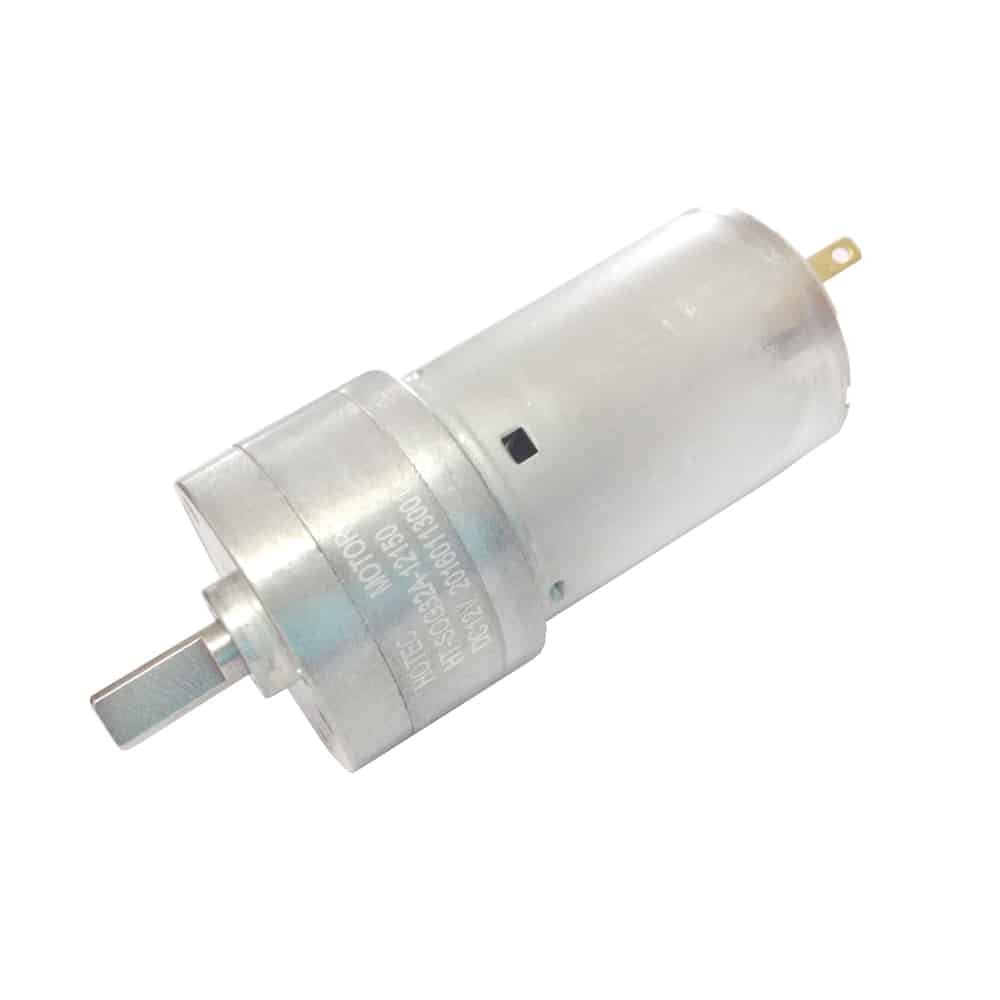

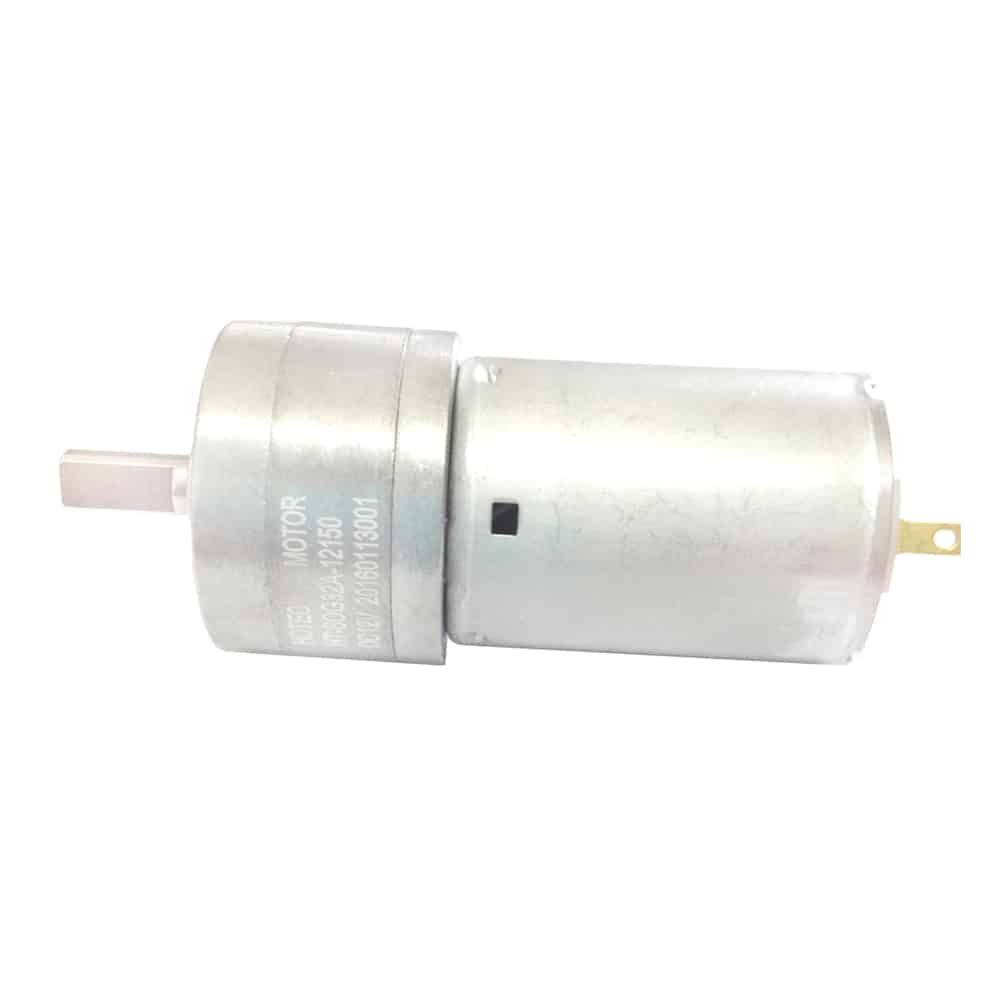

32mm diameter Round Spur Gear Motor.
Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.
| Gear Ratio Stage | 3 | 4 | 5 | 6 |
|---|---|---|---|---|
| Gear Ratio | 13.4 | 40 | 73 | 170 |
| 45.5 | 94 | 219 | ||
| 52 | 121 | 282 | ||
| 136 | 362 | |||
| 155 | 409 | |||
| 466 | ||||
| Gearbox length “L” (mm) | 26.5 | |||
| MODEL | VOLTAGE | NO LOAD | AT MAX EFFICIENCY | ||||
|---|---|---|---|---|---|---|---|
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| HT-SOG32A-12450 | 6.0-14.0 | 12VDC | 450 | ≤0.20 | 380 | ≤0.70 | 0.65 |
| HT-SOG32A-12155 | 6.0-14.0 | 12VDC | 155 | ≤0.20 | 125 | ≤0.70 | 1.85 |
| HT-SOG32A-12135 | 6.0-14.0 | 12VDC | 135 | ≤0.20 | 115 | ≤0.70 | 2.05 |
| HT-SOG32A-12116 | 6.0-14.0 | 12VDC | 116 | ≤0.20 | 95 | ≤0.70 | 2.35 |
| HT-SOG32A-1280 | 6.0-14.0 | 12VDC | 80 | ≤0.20 | 68 | ≤0.70 | 3.05 |
| HT-SOG32A-1265 | 6.0-14.0 | 12VDC | 65 | ≤0.20 | 52 | ≤0.70 | 3.85 |
| HT-SOG32A-1250 | 6.0-14.0 | 12VDC | 50 | ≤0.20 | 42 | ≤0.70 | 5.05 |
| HT-SOG32A-1242 | 6.0-14.0 | 12VDC | 42 | ≤0.20 | 35 | ≤0.70 | 5.65 |
| HT-SOG32A-1235 | 6.0-14.0 | 12VDC | 35 | ≤0.20 | 30 | ≤0.70 | 6.05 |
| HT-SOG32A-1227 | 6.0-14.0 | 12VDC | 27 | ≤0.20 | 23 | ≤0.70 | 7.5 |
| HT-SOG32A-1215 | 6.0-14.0 | 12VDC | 15 | ≤0.20 | 12 | ≤0.70 | 14.05 |
| HT-SOG32A-1212 | 6.0-14.0 | 12VDC | 12 | ≤0.20 | 10 | ≤0.70 | 16.05 |
