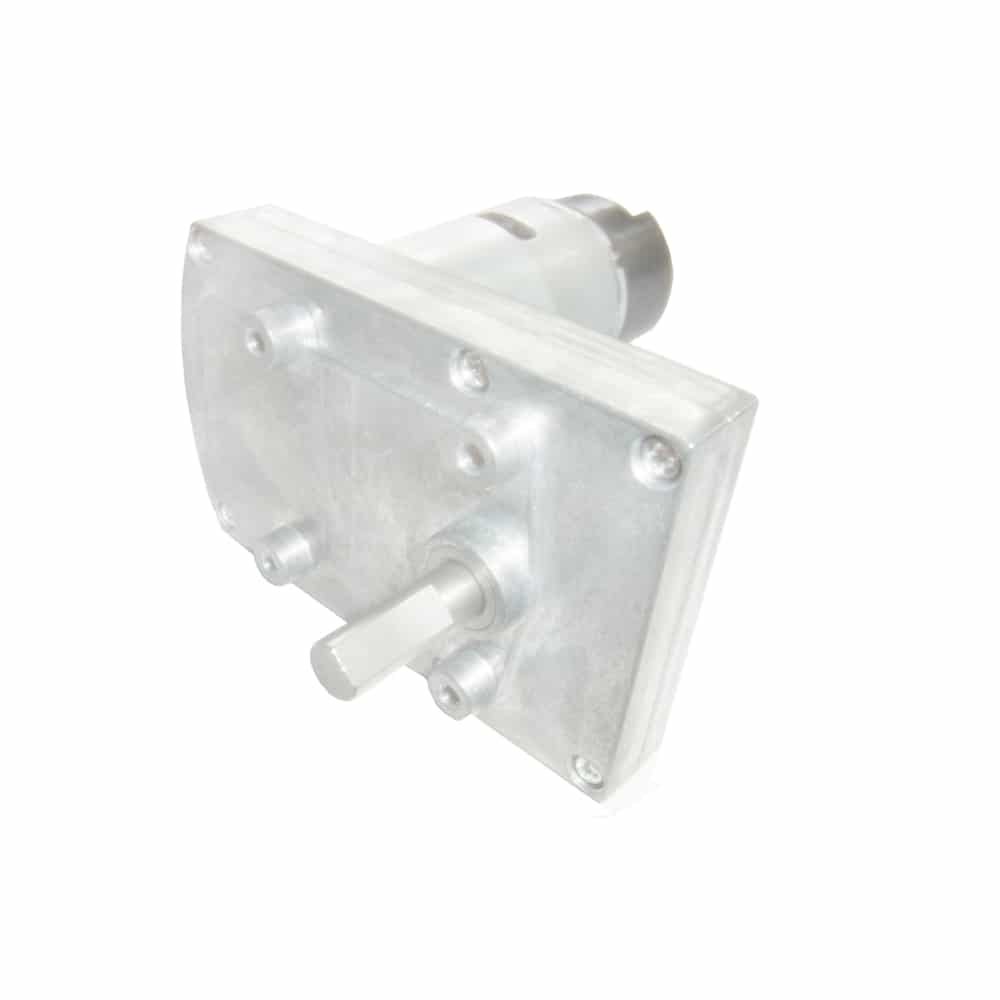

95x60mm HT-COG95A Flat Gearbox Motors

Spur geared Flat gear motor with customized Performance

  • Output shaft diameter:  8 mm (customized option)
  • Output shaft position:  parallel shafts
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between 10-30V, typically it’s 12V or  24V
  • Speed range: customized between 1 RPM~160 RPM
  • Rated Torque: customized between 5 kg.cm~150 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio37162594
60265651
86315973
1059

Dimension Drawing

Dimension drawing for HT-COG95A DC gear motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-COG95A-121656.0-12.012VDC165≤0.9125≤3.8519
HT-COG95A-121446.0-12.012VDC144≤0.9100≤3.8524
HT-COG95A-12756.0-12.012VDC75≤0.955≤3.8542
HT-COG95A-12386.0-12.012VDC38≤0.928≤3.8575
HT-COG95A-12256.0-12.012VDC25≤0.917≤3.85125
HT-COG95A-12206.0-12.012VDC20≤0.914≤3.85150
HT-COG95A-12166.0-12.012VDC16≤0.912≤3.85176
HT-COG95A-12106.0-12.012VDC10≤0.96≤3.85200*
HT-COG95A-12096.0-12.012VDC9≤0.95.5≤3.85200*
HT-COG95A-12066.0-12.012VDC6≤0.94≤3.85300*
HT-COG95A-125.56.0-12.012VDC5.5≤0.93.5≤3.85300*
HT-COG95A-124.56.0-12.012VDC4.5≤0.93.6≤3.85300*
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
