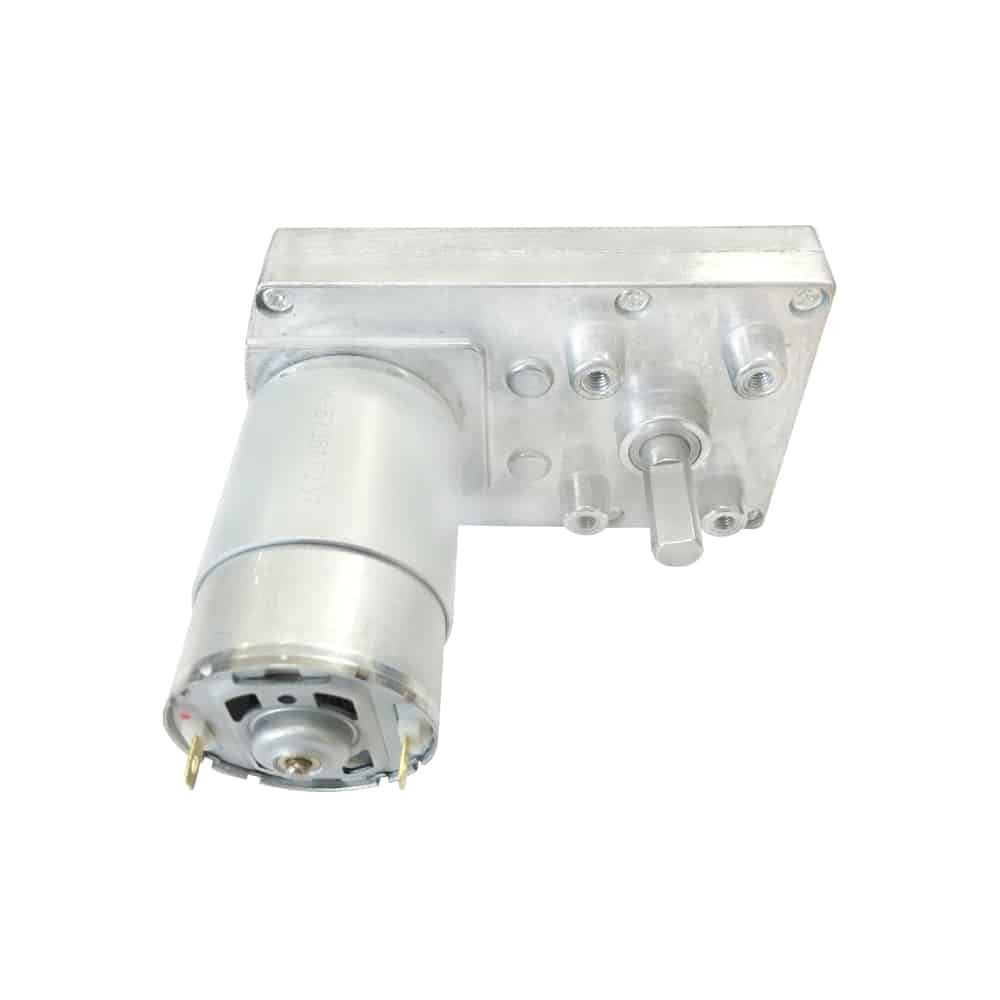

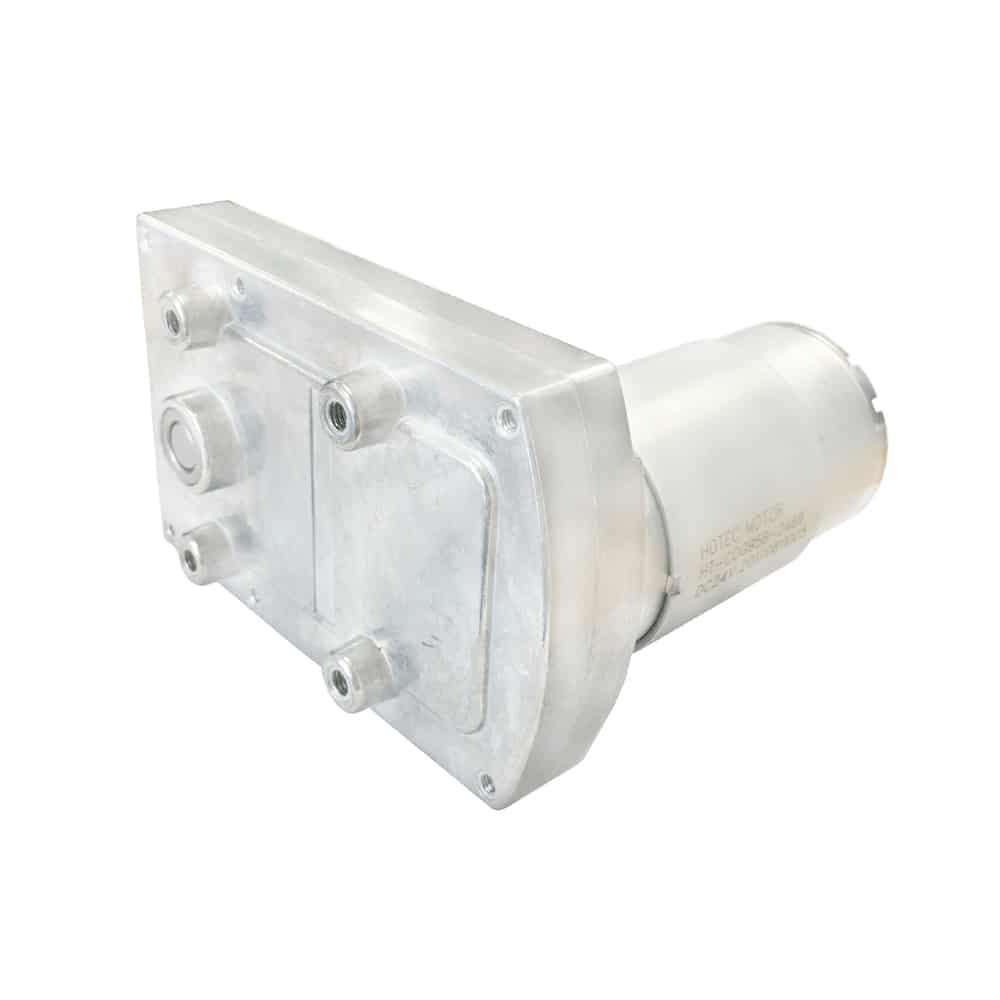

95x60mm HT-COG95B Flat Gearbox Motors

Micro Flat gearbox motor with customized Performance.

  • Output shaft diameter:  8 mm (customized option)
  • Output shaft position:  parallel shafts
  • Gear reducer: Spur gear reduction
  • Voltage range: customized between 5-30V, typically it’s 12V or  24V
  • Speed range: customized between 1 RPM ~ 160 RPM
  • Rated Torque: customized between 3 kg.cm ~ 150 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio37162594
60265651
86315973
1059

Dimension Drawing

Dimension drawing for HT-COG95B flat gearbox DC motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-COG95B-1216512.0-24.024VDC165≤0.25125≤1.057.2
HT-COG95B-1214412.0-24.024VDC144≤0.25105≤1.059
HT-COG95B-127512.0-24.024VDC75≤0.2560≤1.0517
HT-COG95B-123812.0-24.024VDC38≤0.2531≤1.0530
HT-COG95B-122512.0-24.024VDC25≤0.2520≤1.0530
HT-COG95B-122012.0-24.024VDC20≤0.2516≤1.0550
HT-COG95B-121612.0-24.024VDC16≤0.2512≤1.0565
HT-COG95B-121012.0-24.024VDC10≤0.258.5≤1.0598
HT-COG95B-120912.0-24.024VDC9≤0.257.5≤1.0598*
HT-COG95B-120612.0-24.024VDC6≤0.255≤1.05145*
HT-COG95B-125.512.0-24.024VDC5.5≤0.254.5≤1.05145*
HT-COG95B-124.512.0-24.024VDC4.5≤0.253.5≤1.05165*

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
