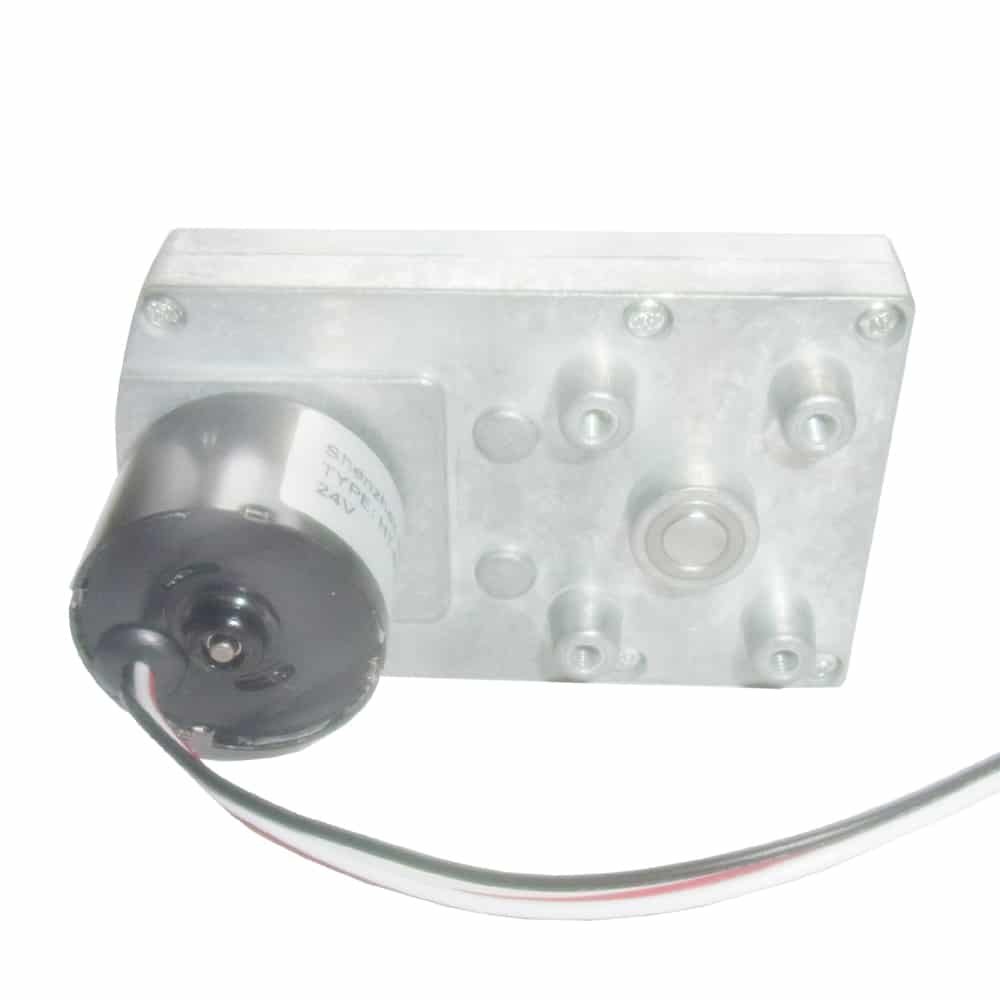

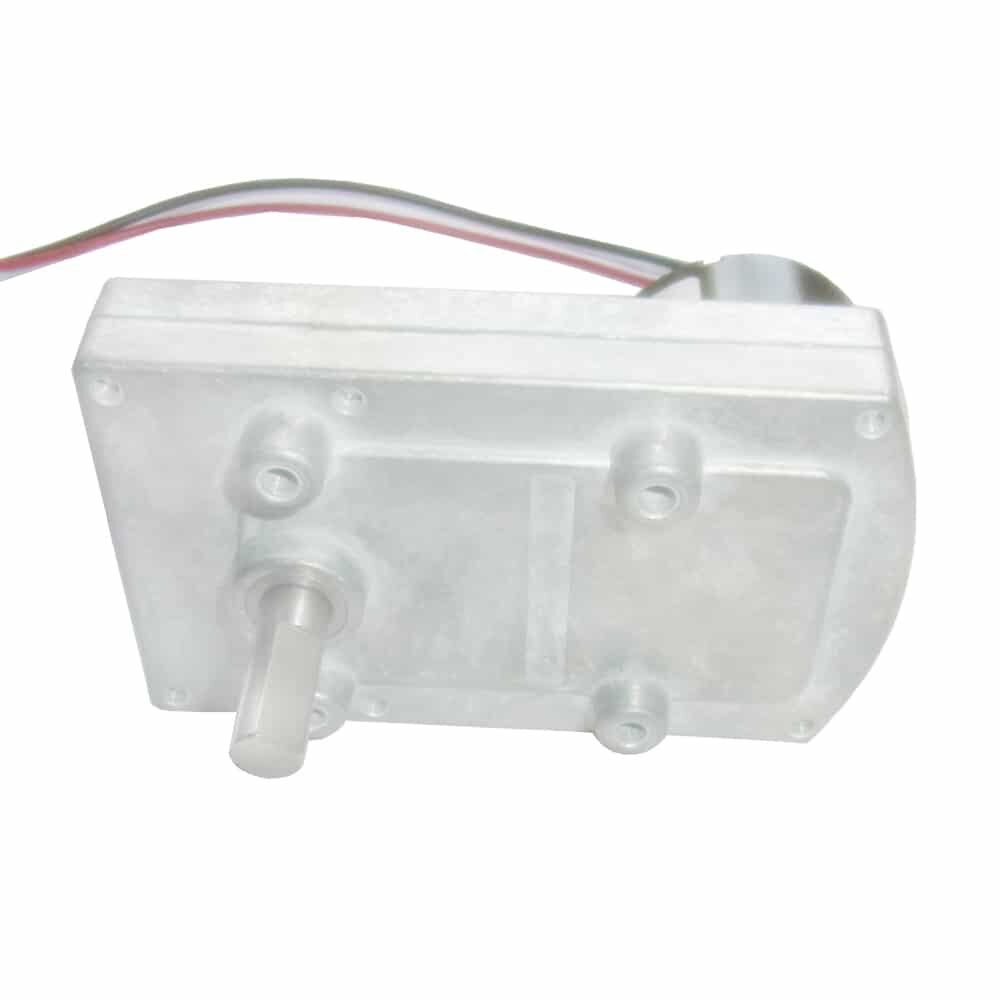

95x60mm HT-BL-COG95C Brushless Flat gearbox DC motors

Micro brushless flat gearbox motor.

  • Output shaft diameter:  8 mm (customized option)
  • Output shaft position:  parallel shafts
  • Gear reduction: Spur gear speed reduction
  • Voltage range: customized between 5V-30V, typically it’s 12Vor  24V
  • Speed range: customized between 1 RPM~170 RPM
  • Rated Torque: customized between 0.6 kg.cm~30kg.cm
  • Wiring funciton 1: CW/CCW output direction control.
  • Wiring function 2: FG signal
  • Wiring function 3: PWM speed control
  • Wiring function 4: Brake

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio37162594
60265651
86315973
1059

Dimension Drawing

Dimension drawing for HT-BL-COG95C brushless flat gearbox motor

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-BL-COG95C-246520.0-28.024VDC650.06490.21.4
HT-BL-COG95C-244020.0-28.024VDC400.06300.22.3
HT-BL-COG95C-243620.0-28.024VDC360.06270.22.5
HT-BL-COG95C-242820.0-28.024VDC280.06200.23.3
HT-BL-COG95C-241520.0-28.024VDC150.06110.26
HT-BL-COG95C-240920.0-28.024VDC90.066.60.210
HT-BL-COG95C-247.620.0-28.024VDC7.60.065.50.212
HT-BL-COG95C-240420.0-28.024VDC40.062.90.221
HT-BL-COG95C-243.720.0-28.024VDC3.70.072.60.223
HT-BL-COG95C-242.520.0-28.024VDC2.50.071.60.232
HT-BL-COG95C-242.320.0-28.024VDC2.30.081.50.234
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
