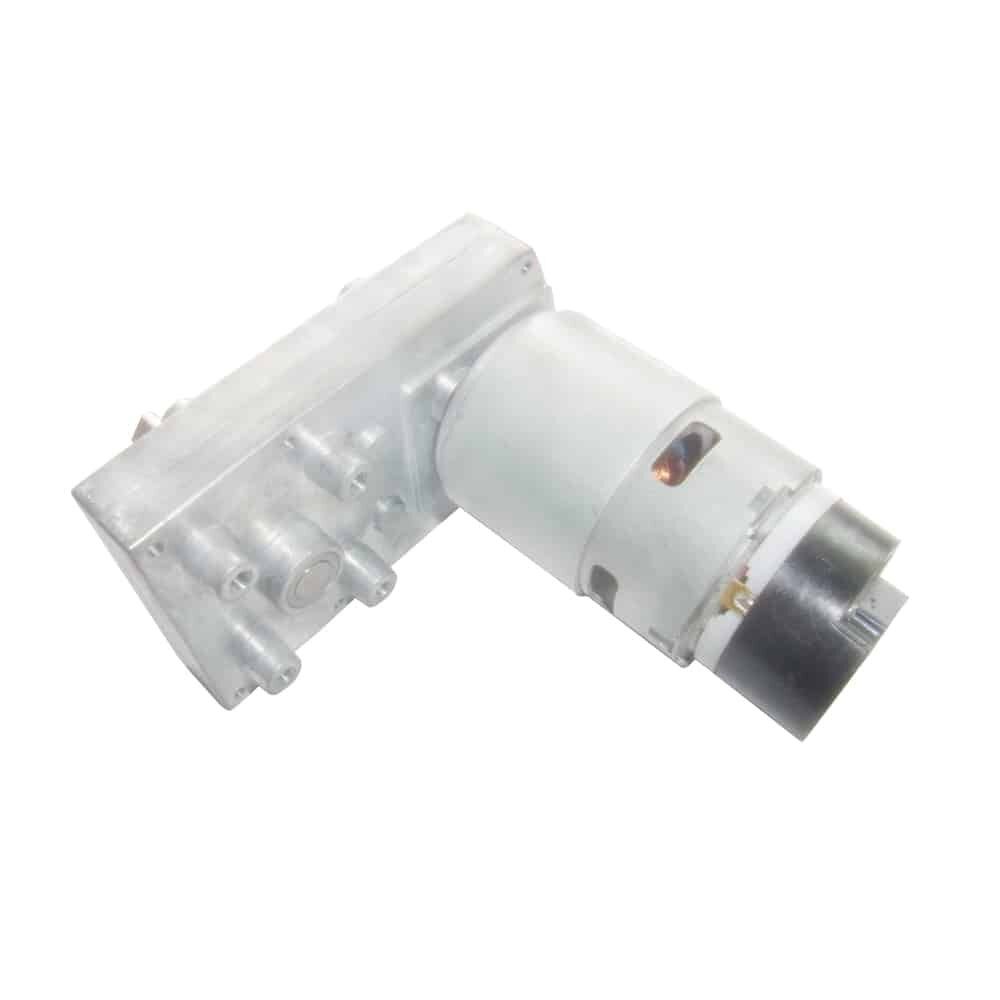

95x60mm HT-BL-COG95A Brushless Flat gearbox DC Motors.

Brushless flat gearbox DC motors with customized performance.

  • Output shaft diameter:  8 mm (customized option)
  • Output shaft position:  parallel shafts
  • Gear reducer: Spur gear reduction
  • Voltage range: 12V, 24V
  • Speed range: customized between 1 RPM ~ 160 RPM
  • Rated Torque: customized between 3 kg.cm ~ 150 kg.cm
  • Wiring funciton 1: CW/CCW output direction control.
  • Wiring function 2: FG signal
  • Wiring function 3: PWM speed control
  • Wiring function 4: Brake

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio37162594
60265651
86315973
1059

Dimension Drawing

Dimension drawing for HT-BL-COG95A Brushless flat gearbox DC motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-BL-COG95A-2413520.0-28.024VDC1350.201050.357
HT-BL-COG95A-248320.0-28.024VDC830.20630.3511.5
HT-BL-COG95A-247620.0-28.024VDC760.20570.3512.5
HT-BL-COG95A-245820.0-28.024VDC580.20430.3516
HT-BL-COG95A-243120.0-28.024VDC310.20220.3529
HT-BL-COG95A-241920.0-28.024VDC190.20140.3547
HT-BL-COG95A-241620.0-28.024VDC160.20110.3555
HT-BL-COG95A-248.520.0-28.024VDC8.50.2060.35102
HT-BL-COG95A-247.720.0-28.024VDC7.70.205.40.35112
HT-BL-COG95A-240520.0-28.024VDC50.203.30.35158
HT-BL-COG95A-244.720.0-28.024VDC4.70.2030.35172
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
