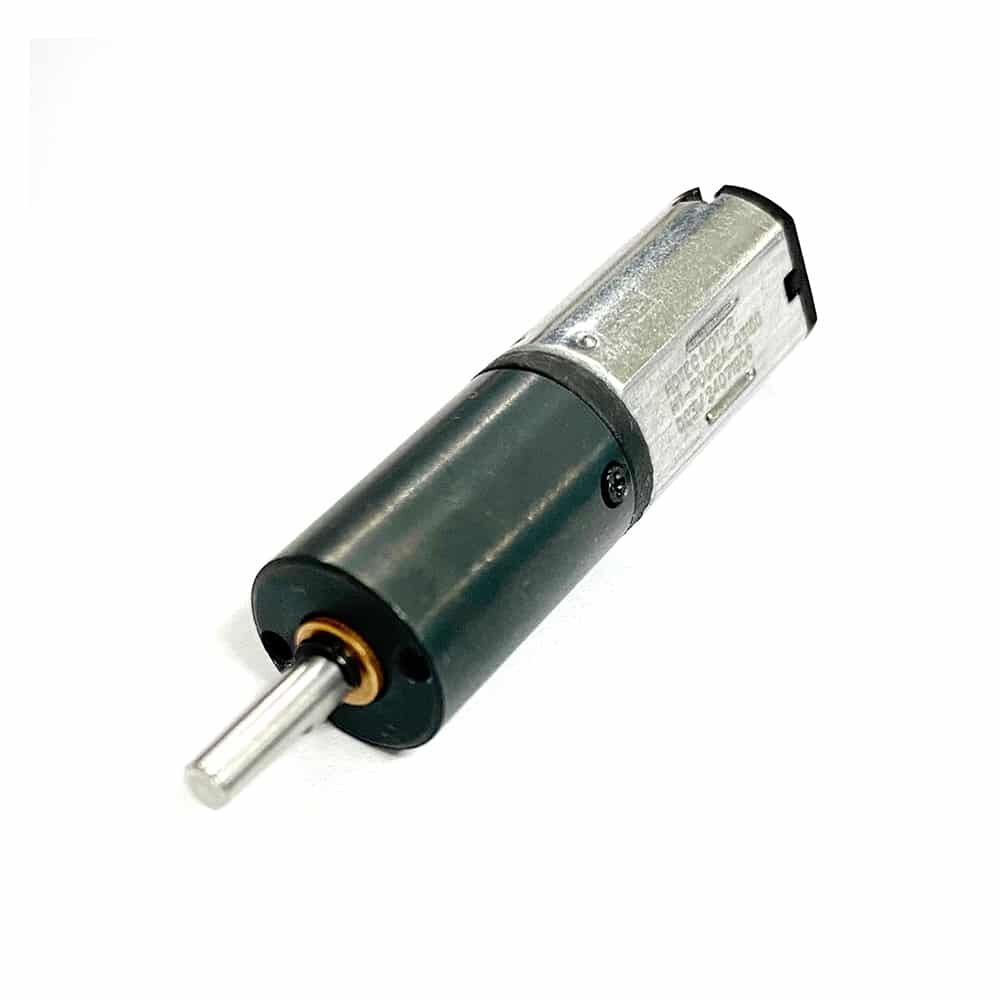

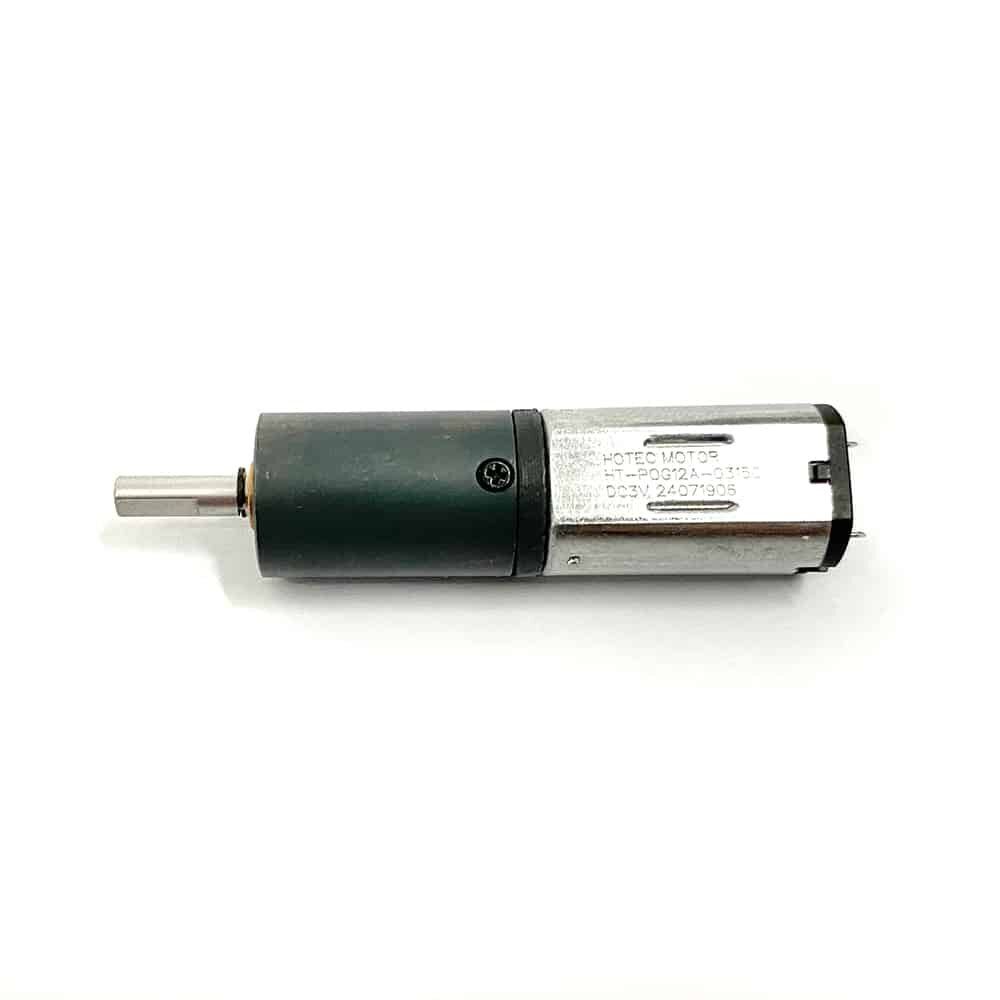

12mm diameter brushed planetary gear motors
Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.
| Gear Ratio Stage | 2 | 3 | 4 | ||
|---|---|---|---|---|---|
| Gear Ratio | 16 | 62 | 326 | ||
| 21 | 83 | 406 | |||
| 28 | 103 | 546 | |||
| 25 | 150 | 680 | |||
| 186 | |||||
| 231 | |||||
| Gearbox length “L” (mm) | 17.5 | 19.6 | 23.2 |
| MODEL | VOLTAGE | NO LOAD | AT MAX EFFICIENCY | ||||
|---|---|---|---|---|---|---|---|
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| HT-POG12A-03810 | 1.5-9.0 | 3VDC | 810 | ≤0.04 | 712 | ≤0.1 | 0.02 |
| HT-POG12A-03435 | 1.5-9.0 | 3VDC | 435 | ≤0.04 | 380 | ≤0.1 | 0.05 |
| HT-POG12A-03238 | 1.5-9.0 | 3VDC | 238 | ≤0.04 | 200 | ≤0.1 | 0.1 |
| HT-POG12A-03137 | 1.5-9.0 | 3VDC | 137 | ≤0.04 | 101 | ≤0.1 | 0.15 |
| HT-POG12A-0688 | 1.5-9.0 | 6VDC | 88 | ≤0.04 | 67 | ≤0.1 | 0.2 |
| HT-POG12A-0660 | 1.5-9.0 | 6VDC | 60 | ≤0.04 | 42 | ≤0.1 | 0.3 |
| HT-POG12A-0642 | 1.5-9.0 | 6VDC | 42 | ≤0.04 | 29 | ≤0.1 | 0.4 |
| HT-POG12A-0638 | 1.5-9.0 | 6VDC | 38 | ≤0.04 | 26 | ≤0.1 | 0.36 |
| HT-POG12A-0630 | 1.5-9.0 | 6VDC | 30 | ≤0.04 | 21 | ≤0.1 | 0.45 |
| HT-POG12A-0622 | 1.5-9.0 | 6VDC | 22 | ≤0.04 | 15 | ≤0.1 | 0.7 |
| HT-POG12A-1265 | 1.5-12 | 12VDC | 65 | ≤0.08 | 44 | ≤0.2 | 0.5 |
| HT-POG12A-1282 | 1.5-12 | 12VDC | 82 | ≤0.08 | 60 | ≤0.2 | 0.45 |
