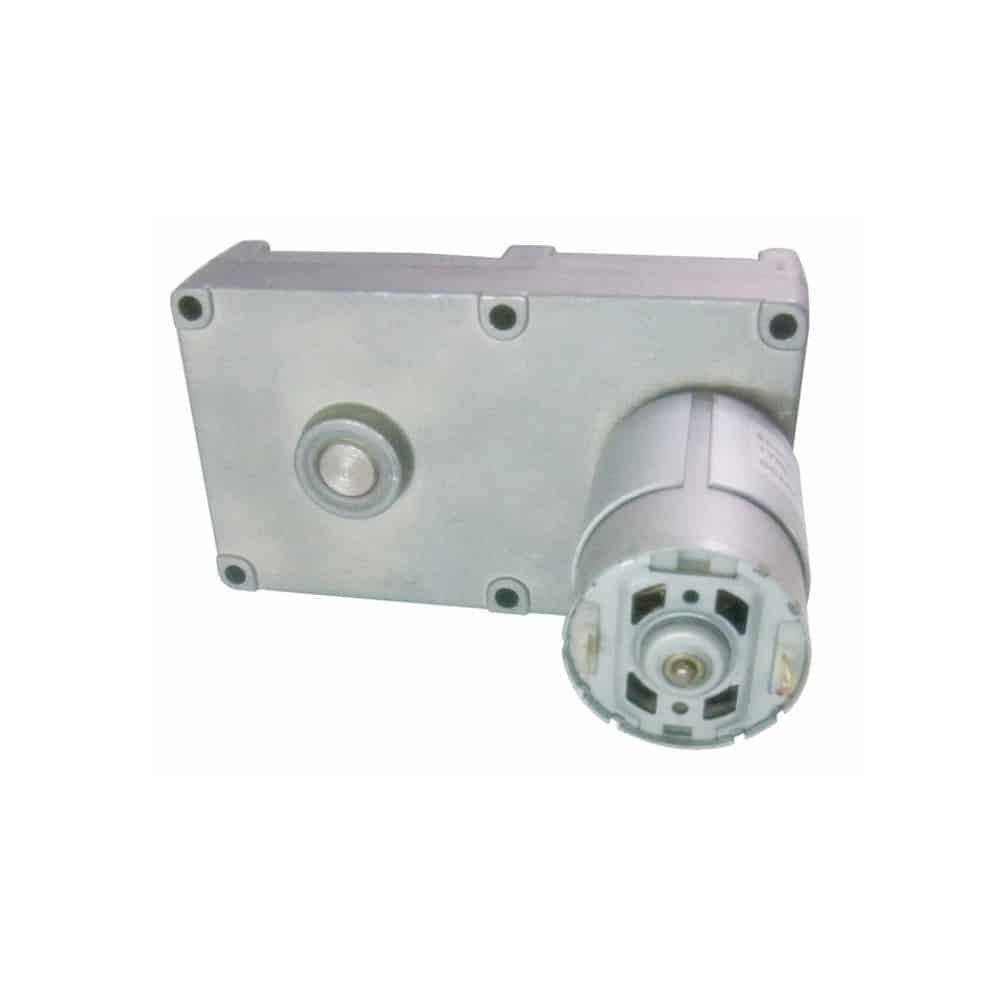

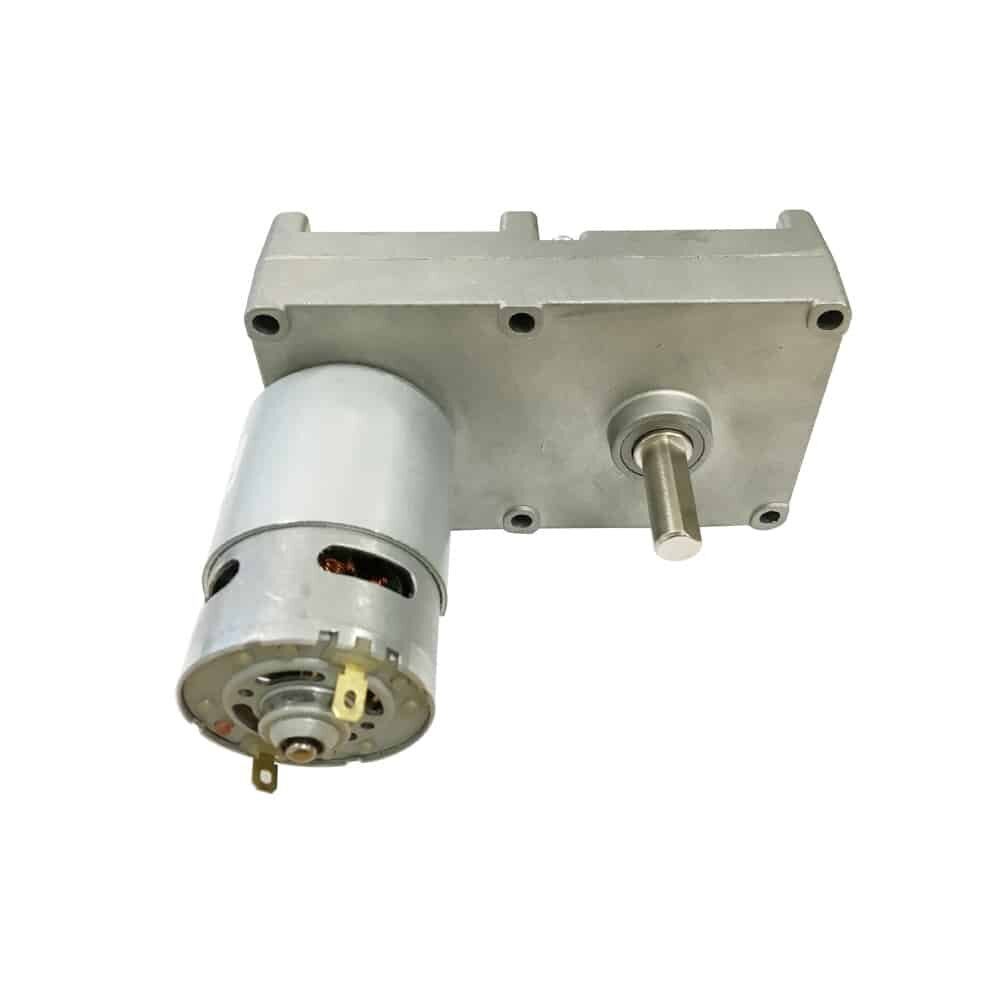

119x70mm HT-FOG119A Flat Gearbox Motors

Large torque Flat gearbox DC gearbox motors.

  • Output shaft diameter:  9.5 mm (customized option)
  • Output shaft position:  parallel shafts
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between 10-30V, typically it’s 12V or  24V
  • Speed range: customized between 1 RPM~55 RPM
  • Rated Torque: customized between 20 kg.cm~300 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage3456
Gear Ratio12738912693385
25159016015078
7221929
897

Dimension Drawing

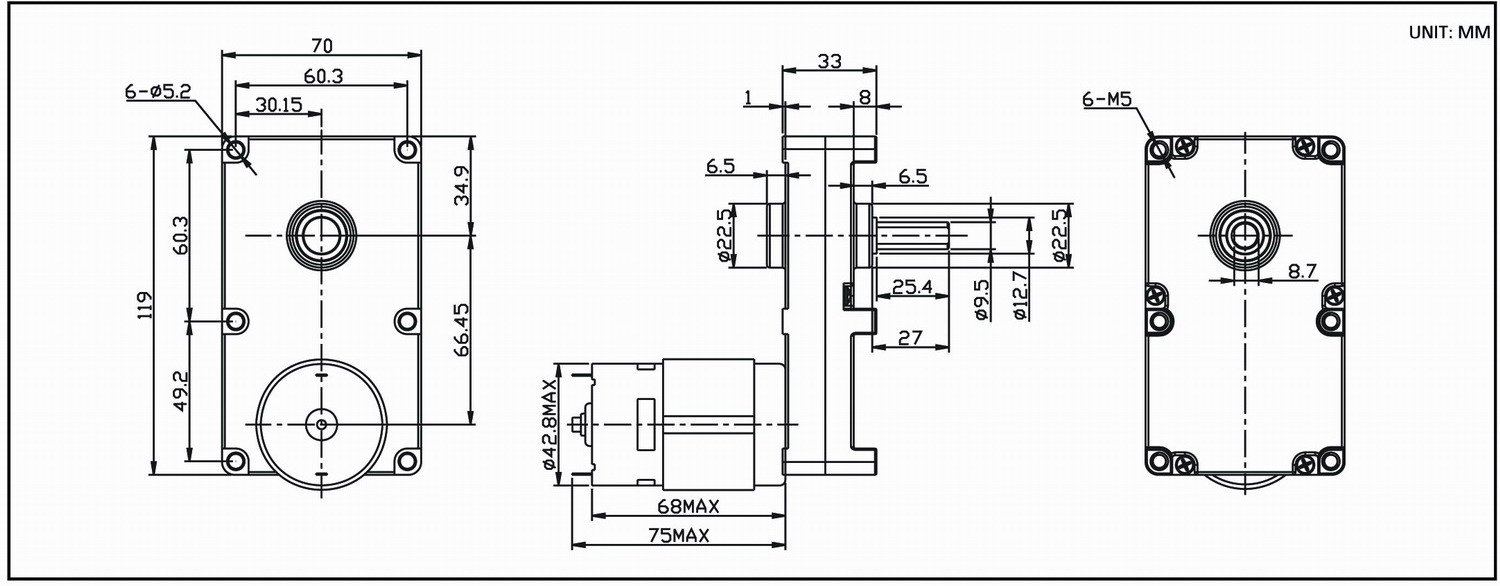

Dimension drawing for HT-FOG119A flat gearbox motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-FOG119A-245012.0-28.024VDC50≤0.7535≤3.4570
HT-FOG119A-242612.0-28.024VDC26≤0.7518.5≤3.45176
HT-FOG119A-242012.0-28.024VDC20≤0.7515.5≤3.45195
HT-FOG119A-241612.0-28.024VDC16≤0.7512≤3.45206
HT-FOG119A-241012.0-28.024VDC10≤0.757.5≤3.45300*
HT-FOG119A-240812.0-28.024VDC8≤0.756≤3.45300*
HT-FOG119A-246.512.0-28.024VDC6.5≤0.754.5≤3.45300*
HT-FOG119A-244.512.0-28.024VDC4.5≤0.753.2≤3.45300*
HT-FOG119A-240412.0-28.024VDC4≤0.752.7≤3.45300*
HT-FOG119A-240312.0-28.024VDC3≤0.751.8≤3.45300*
HT-FOG119A-241.812.0-28.024VDC1.8≤0.751.3≤3.45300*
HT-FOG119A-241.212.0-28.024VDC1.2≤0.750.8≤3.45300*
  1. The datasheet is only for your reference
  2. The voltage, speed, torque, current can be customized by changing the magnets, windings or gear ratios.
  3. The same gearbox can match other DC motors.
