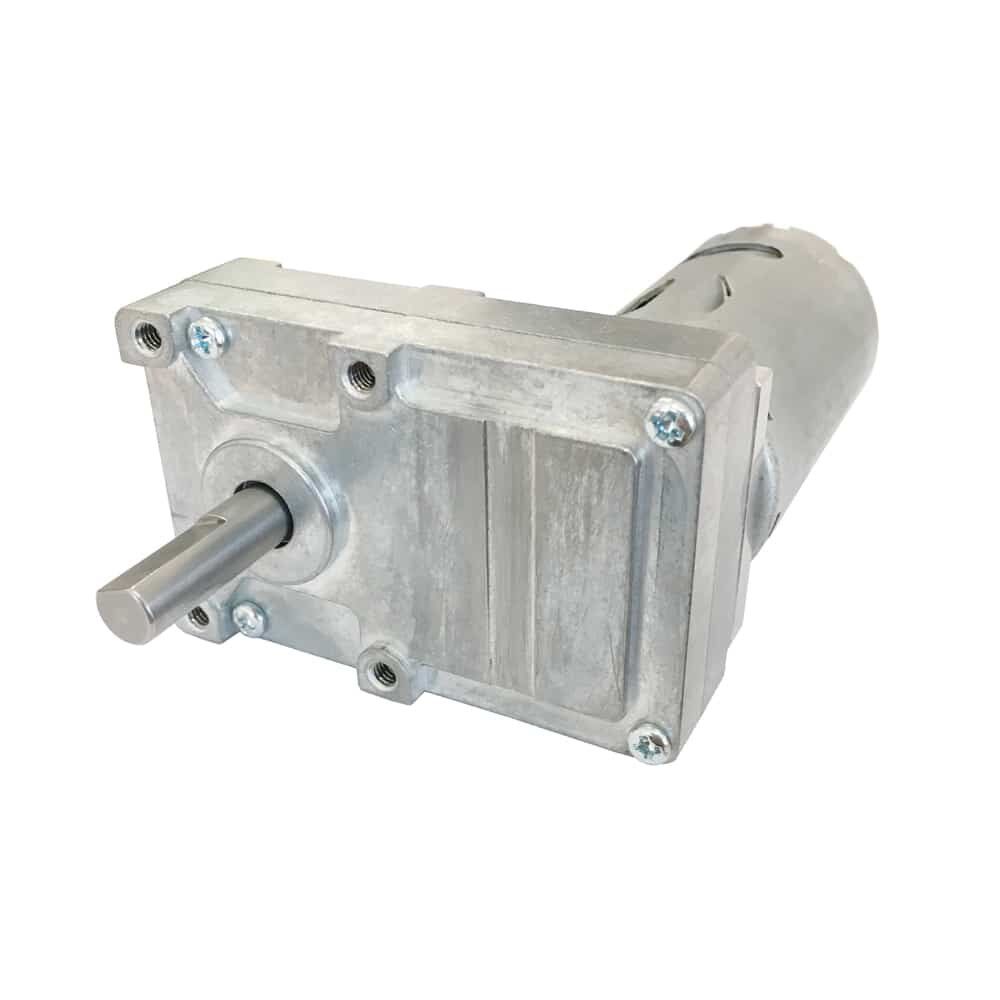

73x47mm HT-COG73 Flat Gearbox Motor

Spur geared Flat gearbox Motors with customized performance.

  • Output shaft diameter:  8 mm (customized option)
  • Output shaft position:  parallel shafts
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between 5V-30V, typically it’s 6V, 12V, 24V
  • Speed range: customized between 1 RPM~550 RPM
  • Rated Torque: customized between 0.3 kg.cm~40kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage23456
Gear Ratio153666295552
5193363615
123404680
170458757
510859
957
1113
1240

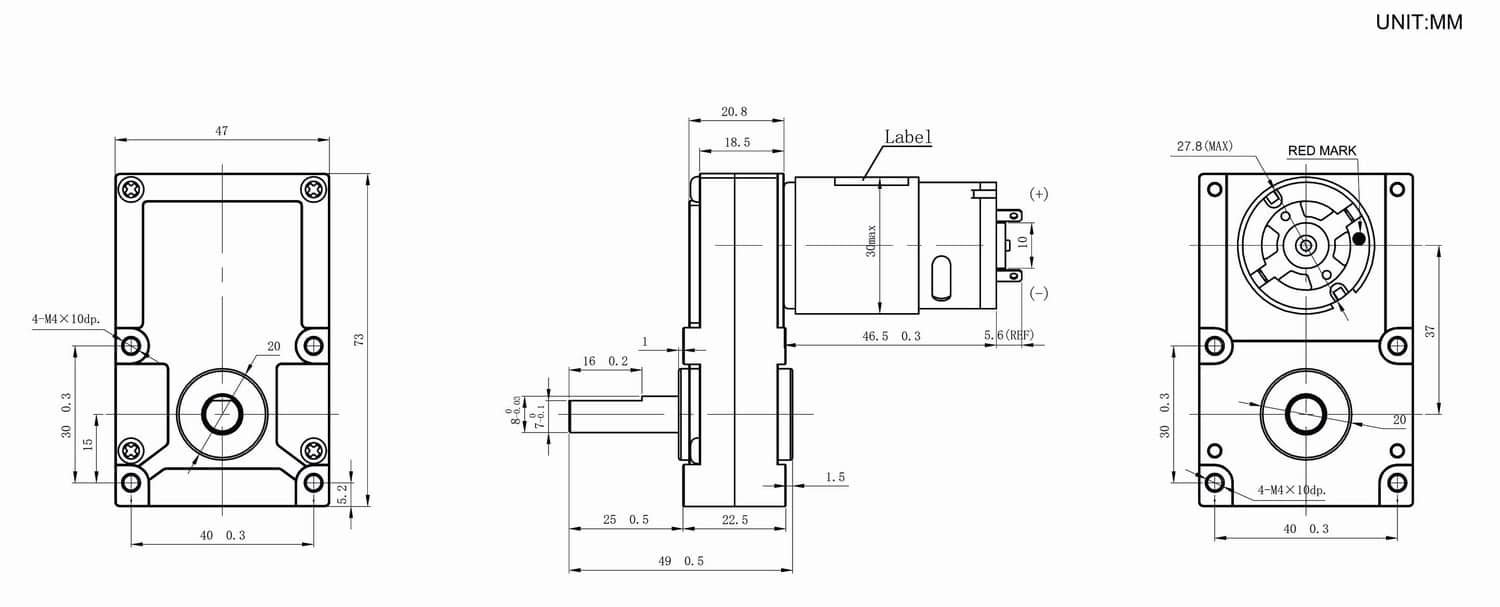

Dimension Drawing

Dimension drawing for HT-COG73 flat gear motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-COG73-123909-14VDC12VDC3900.223300.881.1
HT-COG73-121659-14VDC12VDC1650.221380.882.4
HT-COG73-121159-14VDC12VDC1150.22950.883.5
HT-COG73-12909-14VDC12VDC900.22750.885
HT-COG73-12629-14VDC12VDC620.22510.885.5
HT-COG73-12469-14VDC12VDC460.22400.887
HT-COG73-12349-14VDC12VDC340.22280.8810
HT-COG73-12209-14VDC12VDC200.22160.8815
HT-COG73-12169-14VDC12VDC160.22130.8819
HT-COG73-12149-14VDC12VDC140.22120.8821
HT-COG73-12119-14VDC12VDC110.2290.8826
HT-COG73-129.59-14VDC12VDC9.50.2280.8828
HT-COG73-127.69-14VDC12VDC7.60.226.30.8835
HT-COG73-12069-14VDC12VDC60.2250.8840
HT-COG73-125.29-14VDC12VDC5.20.224.20.8840
HT-COG73-123.89-14VDC12VDC4.50.223.80.8840

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
