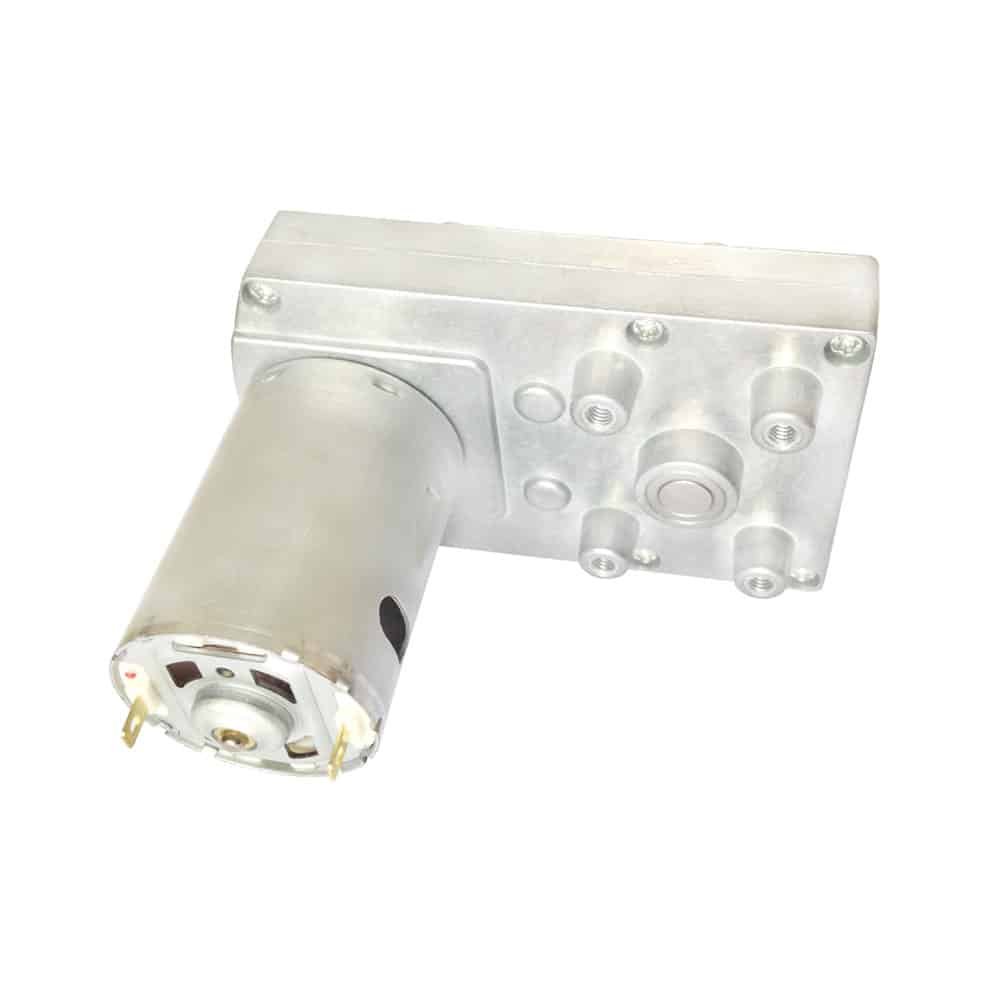

95x60mm HT-COG95C Flat Gearbox Motors

Spur geared Flat gearbox DC motors with Customized Performance.

  • Output shaft diameter:  8 mm (customized option)
  • Output shaft position:  parallel shafts
  • Gear reduction: Spur gear speed reduction
  • Voltage range: customized between 5V-30V, typically it’s 12V or  24V
  • Speed range: customized between 1 RPM~160 RPM
  • Rated Torque: customized between 2 kg.cm~120 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage345
Gear Ratio37162594
60265651
86315973
1059

Dimension Drawing

Dimension drawing for HT-COG95C flat gearbox DC motors.

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-COG95C-121656.0-12.012VDC165≤0.35138≤1.354.8
HT-COG95C-121446.0-12.012VDC144≤0.35122≤1.356.5
HT-COG95C-121006.0-12.012VDC100≤0.3586≤1.357.5
HT-COG95C-12756.0-12.012VDC75≤0.3562≤1.3511
HT-COG95C-12406.0-12.012VDC40≤0.3534≤1.3519
HT-COG95C-12256.0-12.012VDC25≤0.3521≤1.3530
HT-COG95C-12206.0-12.012VDC20≤0.3517≤1.3536
HT-COG95C-12106.0-12.012VDC10≤0.358.7≤1.3562
HT-COG95C-06526.0-12.06VDC52≤0.1844≤0.853.6
HT-COG95C-06366.0-12.06VDC36≤0.1830≤0.855.8
HT-COG95C-06206.0-12.06VDC20≤0.1816≤0.8510
HT-COG95C-06046.0-12.06VDC4≤0.183≤0.8553
