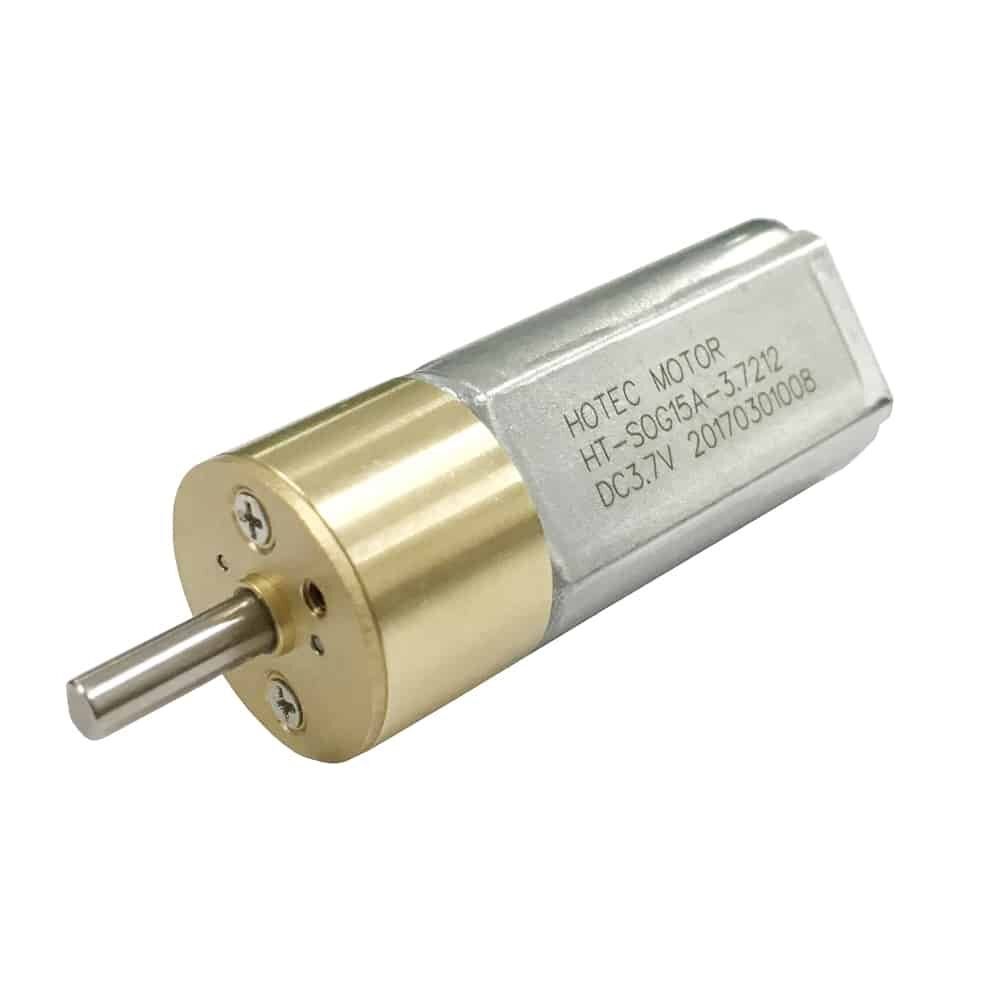

15mm diameter round Spur gear motor
Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.
| Gear Ratio Stage | 2 | 3 | 4 | 5 |
|---|---|---|---|---|
| Gear Ratio | 10 | 35 | 115 | |
| 63 | 150 | |||
| 86 | 360 | |||
| Gearbox length “L” (mm) | 11 | |||
| MODEL | VOLTAGE | NO LOAD | AT MAX EFFICIENCY | ||||
|---|---|---|---|---|---|---|---|
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| HT-SOG15B-0672 | 1.5-9.0 | 6VDC | 72 | ≤0.05 | 52 | ≤0.19 | 0.4 |
| HT-SOG135B-0630 | 1.5-9.0 | 6VDC | 30 | ≤0.05 | 21 | ≤0.19 | 1.2 |
| HT-SOG15B-05260 | 1.5-9.0 | 5VDC | 260 | ≤0.05 | 195 | ≤0.19 | 0.12 |
| HT-SOG15B-05145 | 1.5-9.0 | 5VDC | 145 | ≤0.05 | 102 | ≤0.19 | 0.25 |
| HT-SOG15B-05100 | 1.5-9.0 | 5VDC | 100 | ≤0.05 | 75 | ≤0.19 | 0.3 |
| HT-SOG15B-0580 | 1.5-8.0 | 5VDC | 80 | ≤0.05 | 58 | ≤0.19 | 0.42 |
| HT-SOG15B-0560 | 1.5-8.0 | 5VDC | 60 | ≤0.05 | 43 | ≤0.19 | 0.54 |
| HT-SOG15B-03156 | 1.5-6.0 | 3VDC | 156 | ≤0.10 | 118 | ≤0.50 | 0.06 |
| HT-SOG15B-0386 | 1.5-6.0 | 3VDC | 86 | ≤0.10 | 61 | ≤0.50 | 0.13 |
| HT-SOG15B-0362 | 1.5-6.0 | 3VDC | 62 | ≤0.10 | 45 | ≤0.50 | 0.25 |
| HT-SOG15B-0336 | 1.5-6.0 | 3VDC | 36 | ≤0.10 | 27 | ≤0.50 | 0.27 |
| HT-SOG15B-0315 | 1.5-6.0 | 3VDC | 15 | ≤0.10 | 11 | ≤0.50 | 0.65 |
If you’ve found the perfect DC gear motor for your application, why not order a sample today and see it in action? If you’re still not sure which motor is right for you, let us help you find the ideal solution. Contact us and we’ll be happy to recommend the most suitable motor for your needs
