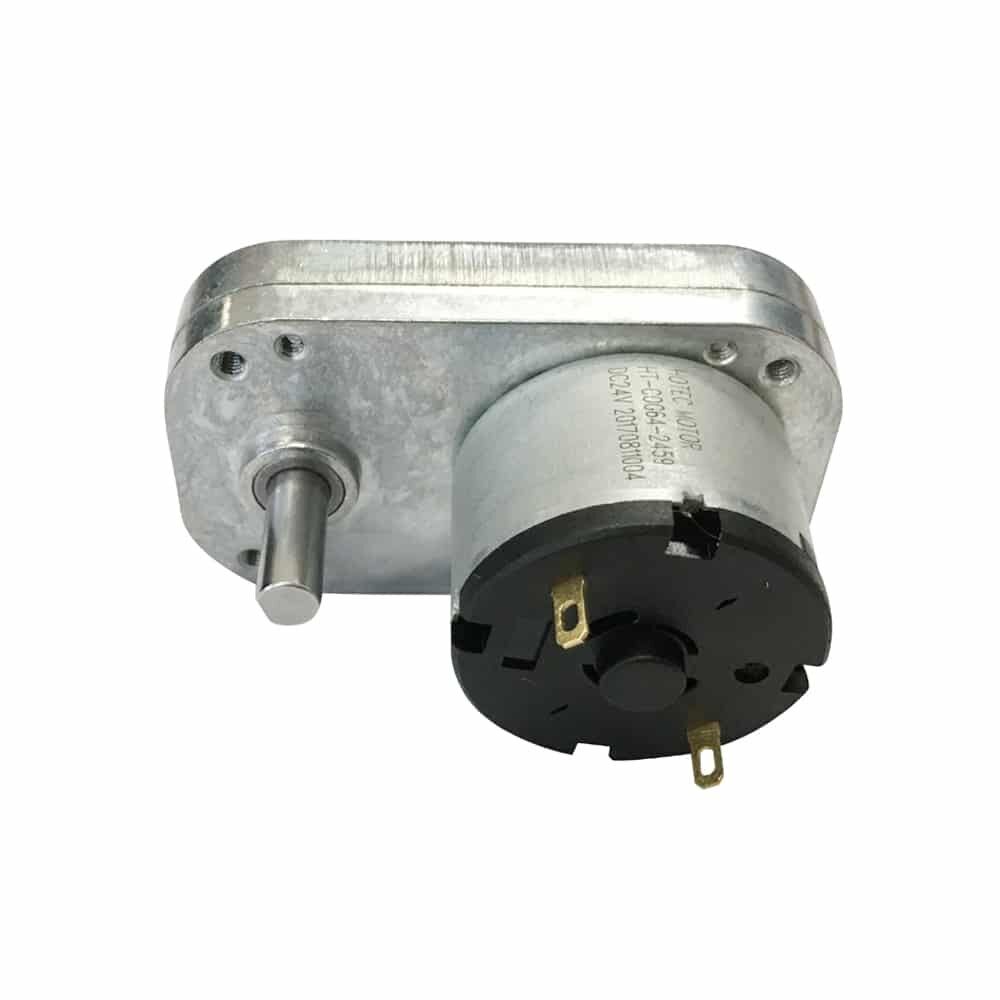

64x38mm HT-COG64 Flat Gearbox Motor

Spur geared Flat gearbox Motor with customized Performance.

  • Output shaft diameter:  6 mm (customized option)
  • Output shaft position:  parallel shafts
  • Gear reduction: Spur gear reduction
  • Voltage range: customized between 1.5V-30V, typically it’s 3V, 6V, 12V, 24V
  • Speed range: customized between 2 RPM~250 RPM
  • Rated Torque: customized between 0.1 kg.cm~25 kg.cm
  • Motor brush: Metal brush or Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage3456
Gear Ratio31105234535
292663
828

Dimension Drawing

Dimension drawing for HT-COG64 Flat gearbox motors

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-COG64-06983.0-9.06VDC980.06780.110.2
HT-COG64-06293.0-9.06VDC290.06230.110.7
HT-COG64-06133.0-9.06VDC130.06100.111.5
HT-COG64-06103.0-9.06VDC100.0680.111.9
HT-COG64-06063.0-9.06VDC60.0650.113.2
HT-COG64-06053.0-9.06VDC50.0630.113.9
HT-COG64-06043.0-9.06VDC40.0620.118.2
HT-COG64-121956.0-12.012VDC1950.081560.250.9
HT-COG64-12576.0-12.012VDC570.08450.252.6
HT-COG64-12256.0-12.012VDC250.08200.256
HT-COG64-12116.0-12.012VDC110.0890.2513

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
