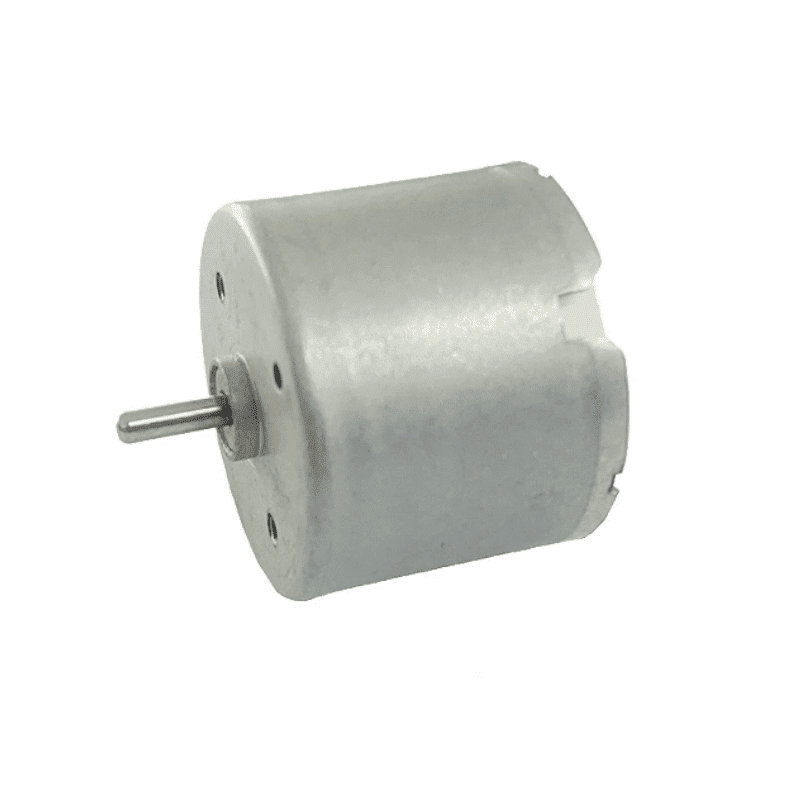

Product: Micro Brushless DC motors.
Model: HT-BL-DCM2418
Typical nominal Voltage: 3V 6V 12V
Speed: customized
Torque: Customized.
Voltage: Customized.
Brushless DC motors customized for your application.

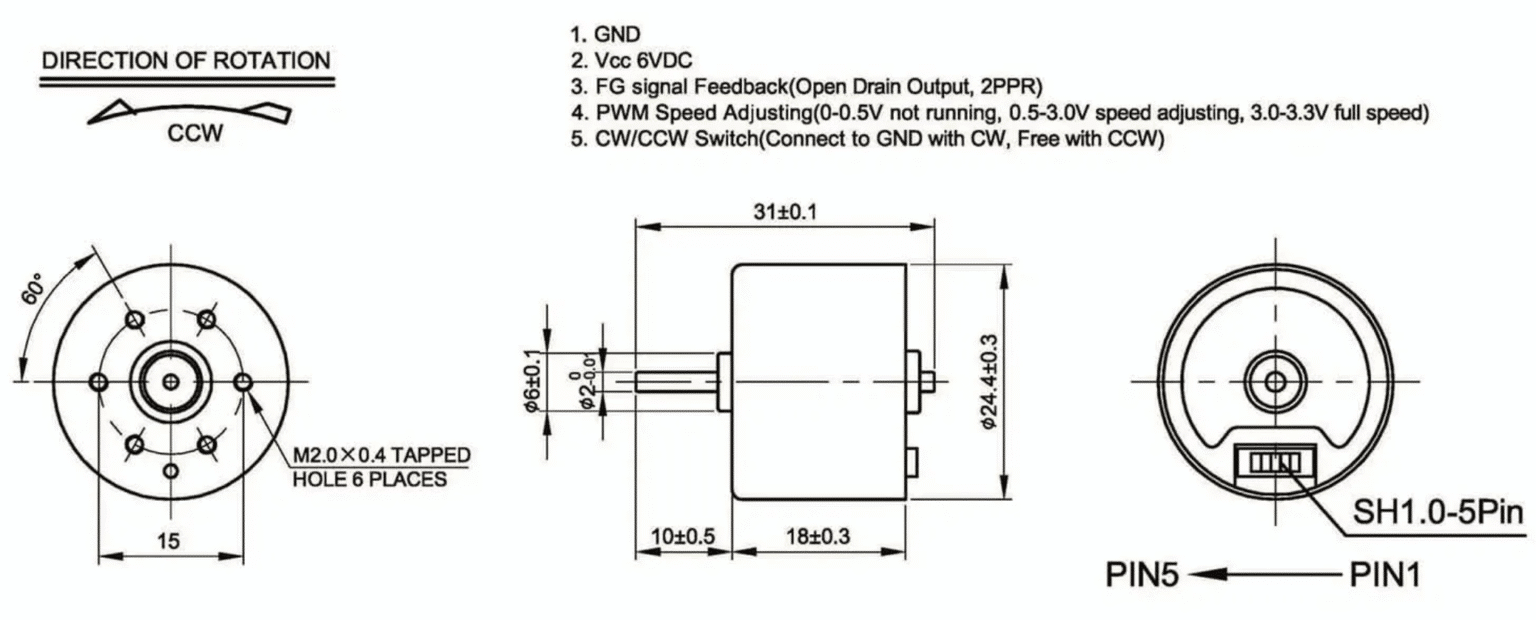

Optional Pin function :
1, CW/CCW control
2, FG signal(encoder)
3, PWM contorl
4, Brake
Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.
N/A
| Model | Voltage | NO load | AT MAX EFFICIENCY | AT TALL | |||||
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | CURRENT | TORQUE | |
| r/min | mA | r/min | A | g.cm | A | g.cm | |||
| HT-BL-DCM2418-063100 | 5.0-8.0V | 6VDC | 3100 | ≤0.08 | 2700 | ≤0.15 | 10 | ≤0.39 | 74 |
| HT-BL-DCM2418-126000 | 8.0-14.0V | 12VDC | 6000 | ≤0.05 | 4750 | ≤0.14 | 15 | ≤0.46 | 70 |
| Remarks: | |||||||||
| 1. Shaft dimension can be customized. | |||||||||
| 2. The Voltage, speed and torque can be adjustable upon request. | |||||||||
If you’ve found the perfect DC gear motor for your application, why not order a sample today and see it in action? If you’re still not sure which motor is right for you, let us help you find the ideal solution. Contact us and we’ll be happy to recommend the most suitable motor for your needs
