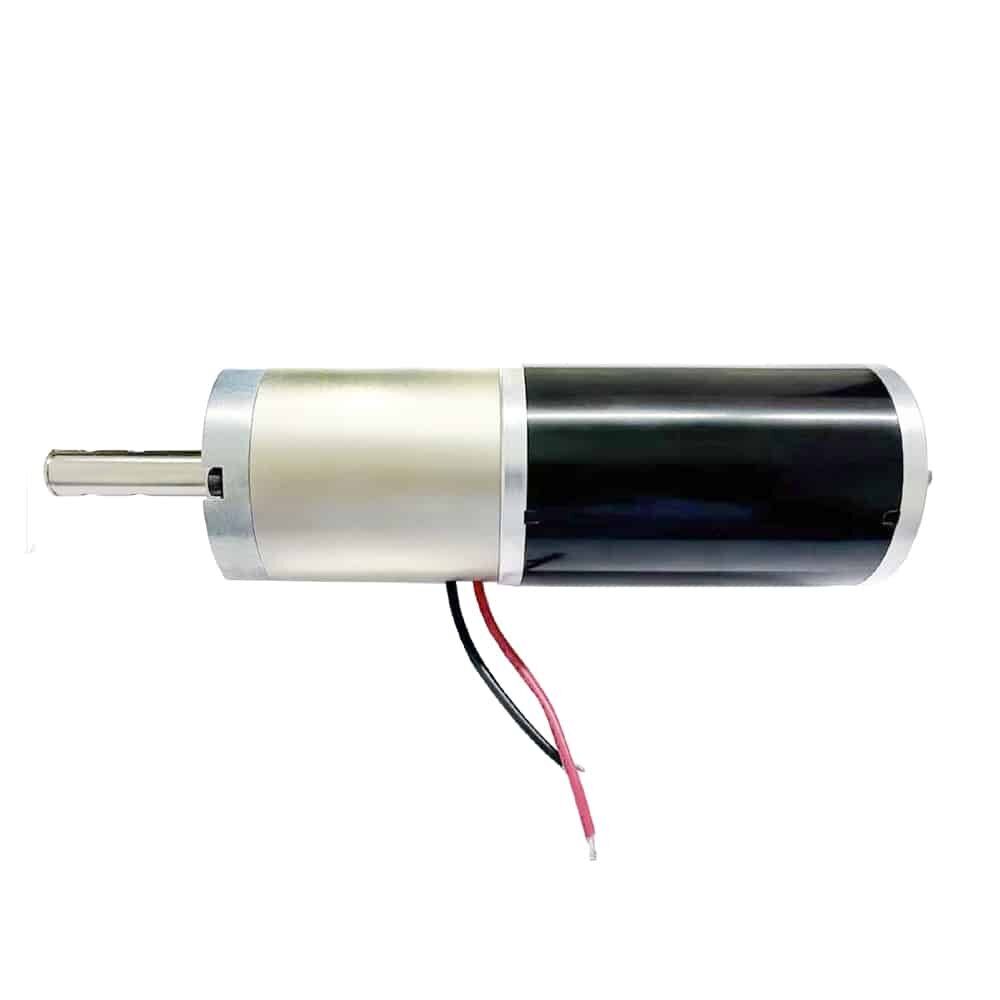

56mm diameter Planetary Gearbox Motors (HT-POG56)

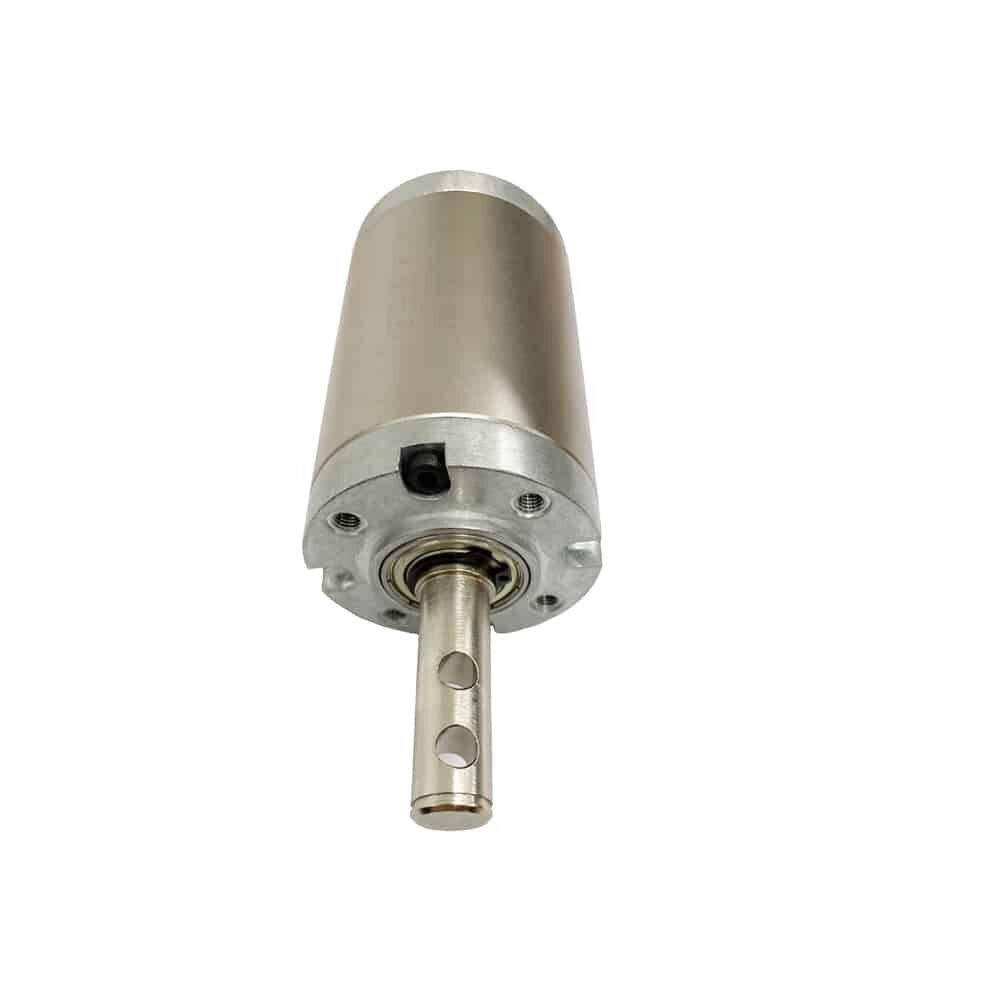

56 mm Diameter Planetary Gearbox DC Motors

  • Gearbox diameter: 56 mm
  • Output shaft diameter:  12.7 mm (customized option)
  • Output shaft position: center shafts
  • Gear reduction: Planetary gear reduction
  • Voltage range: customized between 12V-30V, typically it’s 12V or 24V
  • Speed range: customized between 1RPM~300RPM
  • Rated Torque: customized between 10 kg.cm~300 kg.cm
  • Motor brush: Carbon brush
  • Output direction: Bi-direction

Optional Customization

Voltage

Speed

Torque

Shaft

Low Noise

Current

Gears

EMC

Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.

Gearbox Ratio

Gear Ratio Stage12345
Gear Ratio16642561024
20803201280
1004001600
1255002000
2500
Gearbox Length(L)mm43.455.868.280.6

Dimension Drawing

Gearmotor Referance Datasheet

MODELVOLTAGENO LOADAT MAX EFFICIENCY
OPERATION RANGENOMINALSPEEDCURRENTSPEEDCURRENTTORQUE
r/minAr/minAkg.cm
HT-POG56-2418718-24V24VDC187≤1.01503.52.3
HT-POG56-2415018-24V24VDC150≤1.01203.56
HT-POG56-244718-24V24VDC47≤1.0373.511
HT-POG56-243718-24V24VDC37≤1.0303.518
HT-POG56-243018-24V24VDC30≤1.0243.526
HT-POG56-242418-24V24VDC24≤1.0193.536
HT-POG56-2411.718-24V24VDC11≤1.093.551
HT-POG56-249.318-24V24VDC9≤1.07.53.568
HT-POG56-247.518-24V24VDC7≤1.063.586
HT-POG56-246.018-24V24VDC6≤1.053.5120
HT-POG56-242.918-24V24VDC3≤1.02.53.5167
HT-POG56-242.318-24V24VDC2.3≤1.01.93.5200*
HT-POG56-241.818-24V24VDC1.8≤1.01.6 3.5200*
HT-POG56-241.218-24V24VDC1.2≤1.013.5200*

CE

RoHS

Sample Available

Trial production

100% Inspection

Premium Qaulity
