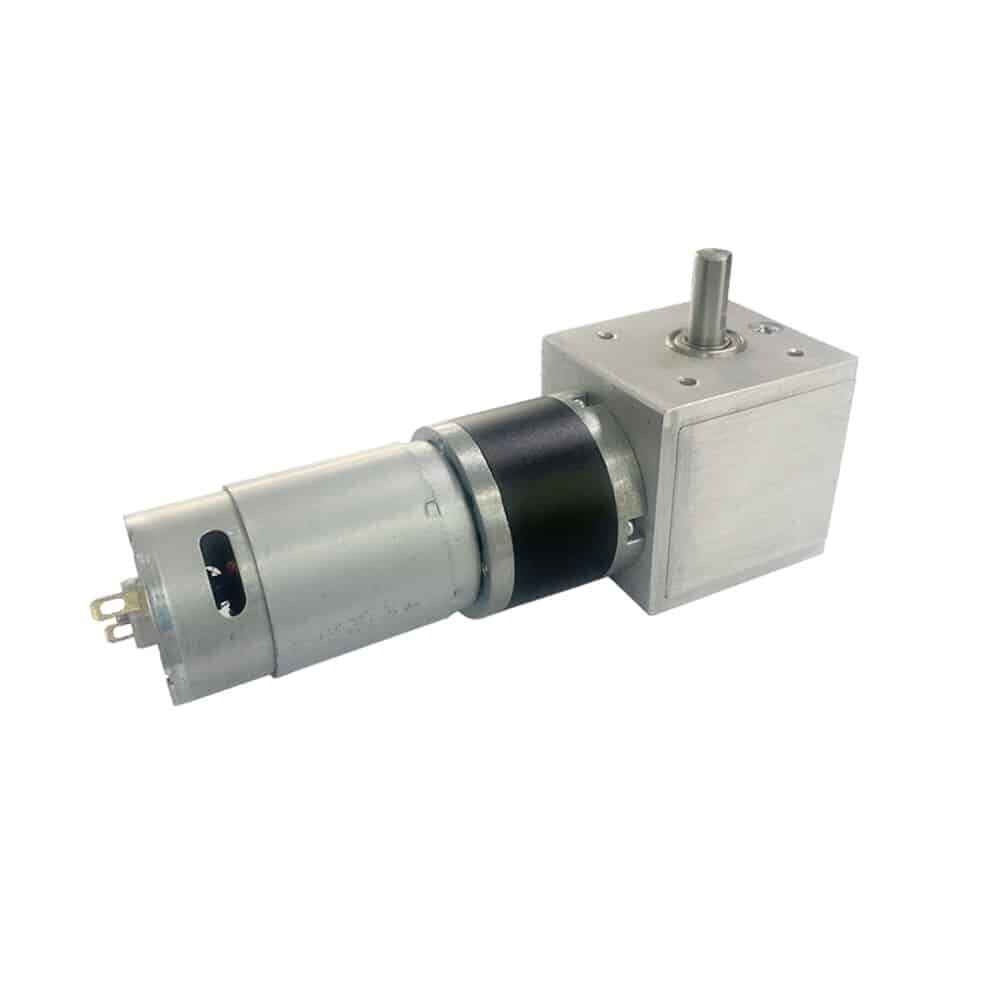

Right Angle 32mm Diameter planetary Gear Motors
Are customized gear motors more expensive ? NO, they are even cheaper than standard ones.
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Gear Ratio | 4 | 14 | 51 | 189 | 977 |
| 5 | 19 | 71 | 264 | 1367 | |
| 27 | 100 | 369 | 1911 | ||
| 139 | 519 | 2672 | |||
| 721 | 3736 | ||||
| Gearbox length “L” (mm) | 21.1 | 27.3 | 33.5 | 39.7 | 46 |
| MODEL | VOLTAGE | NO LOAD | AT MAX EFFICIENCY | ||||
|---|---|---|---|---|---|---|---|
| OPERATION RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | |
| r/min | A | r/min | A | kg.cm | |||
| HT-ROG32-121600 | 9.0-14.0 | 12VDC | 1600 | ≤0.23 | 1400 | ≤1.25 | 0.35 |
| HT-ROG32-12430 | 9.0-14.0 | 12VDC | 430 | ≤0.23 | 370 | ≤1.25 | 1.2 |
| HT-ROG32-12320 | 9.0-14.0 | 12VDC | 320 | ≤0.23 | 275 | ≤1.25 | 1.9 |
| HT-ROG32-12225 | 9.0-14.0 | 12VDC | 225 | ≤0.23 | 190 | ≤1.25 | 2.9 |
| HT-ROG32-12120 | 9.0-14.0 | 12VDC | 120 | ≤0.23 | 95 | ≤1.25 | 3.7 |
| HT-ROG32-1285 | 9.0-14.0 | 12VDC | 85 | ≤0.23 | 66 | ≤1.25 | 5.3 |
| HT-ROG32-1260 | 9.0-14.0 | 12VDC | 60 | ≤0.23 | 45 | ≤1.25 | 7.2 |
| HT-ROG32-1245 | 9.0-14.0 | 12VDC | 45 | ≤0.23 | 36 | ≤1.25 | 14 |
| HT-ROG32-1230 | 9.0-14.0 | 12VDC | 30 | ≤0.23 | 26 | ≤1.25 | 18.5 |
| HT-ROG32-1223 | 9.0-14.0 | 12VDC | 23 | ≤0.23 | 19 | ≤1.25 | 25 |
| HT-ROG32-1215 | 9.0-14.0 | 12VDC | 15 | ≤0.23 | 13 | ≤1.25 | 35 |
| HT-ROG32-124.5 | 9.0-14.0 | 12VDC | 4.5 | ≤0.23 | 3.6 | ≤1.25 | 40* |
