Micro DC gear motors are rarely “one-size-fits-all” components. To achieve the best balance of efficiency, durability, and cost, the motor must be tuned to the specific mechanical and electrical demands of its application.
Customization allows engineers to eliminate unnecessary over-engineering while ensuring the motor can handle real-world stresses. Below is a breakdown of the primary ways we customize micro DC gear motors at HOTEC MOTOR.

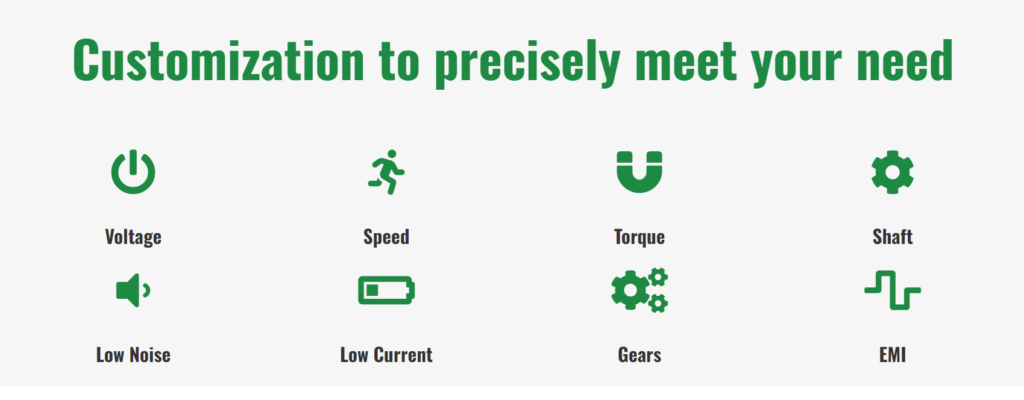

1. Electrical and Performance Tuning
Performance customization focuses on matching the motor’s output to the application’s power supply and load requirements.
- Voltage and Speed: We can adjust the winding and magnet configuration to support any nominal voltage between 1.5 VDC and 30 VDC. This allows for a speed range from as low as 1 RPM to 2,000 RPM.
- Torque Requirements: By altering the gear ratio or motor length, we can achieve continuous rated torque from 0.01 kg.cm up to 150 kg.cm. For high-resistance applications, we can engineer for stall torque up to 500 kg.cm.
- Efficiency: For battery-operated devices, we optimize the coil resistance and magnet strength to minimize current consumption during operation.
2. Physical and Mechanical Customization
The mechanical build of the motor determines its lifespan and acoustic signature.

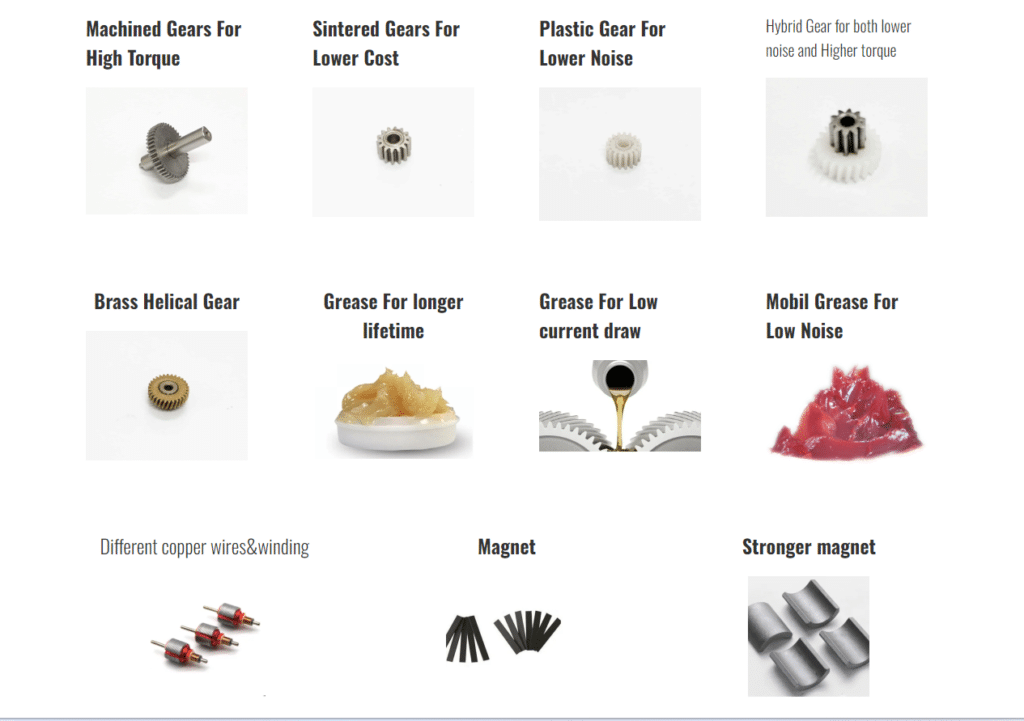

- Gear Materials: We select materials based on the duty cycle and budget. Plastic gears are utilized for near-silent operation in consumer goods. Sintered or machined steel gears are used for high-torque industrial tasks.
- Shaft Configurations: We provide custom shaft shapes, including D-shaped, threaded, round, or knurled, to ensure a secure mechanical connection to your application.
- Bearing Systems: We offer oil-impregnated bearings for cost-sensitive projects and ball bearings for applications involving high radial loads or the need for extended operational life.
3. Environmental and Safety Adaptations
Motors must often operate in environments that would cause standard components to fail.
- Temperature Tolerance: By using specialized lubricants and high-grade wire insulation, we ensure reliable operation in temperatures ranging from -30°C to 80°C.
- EMC Compliance: To prevent electrical noise from interfering with nearby electronics, we integrate varistors or capacitors directly into the motor housing. This simplifies the process of achieving international regulatory certifications for your finished product.
- Noise Management: In noise-sensitive applications—such as medical devices or home automation—we use precision-hobbed gears and optimized gear geometry to reduce acoustic output.
4. Control and Feedback Integration
For precision movement and automation, we integrate electronic feedback directly into the motor assembly.
- Encoders: We provide magnetic or optical encoders (e.g., 3PPR, 7PPR, 12PPR) for closed-loop systems that require precise speed or position control.
- Value-Added Assembly: To simplify your assembly line, we can provide motors with pre-soldered wires, custom connectors, or integrated mounting brackets.
Why Partner with HOTEC MOTOR for Customization?
Our engineering team leverages 30 years of experience in gear transmission to deliver solutions that catalogs cannot offer. We provide two distinct tiers of customization:
- Standard-Size with Custom Internals: We take a standard housing and customize the performance (gears, windings, magnets). This is our most recommended path because it requires no tooling fees and offers the fastest lead times.
- Full Custom Development: If your application has unique geometrical constraints, we design the gearbox and motor housing from the ground up to fit your footprint exactly.
Conclusion: Engineering for Long-Term Value
Customization is a tool for reducing the Total Cost of Ownership (TCO). By tuning a micro DC gear motor to your exact specifications, you eliminate the cost of over-built components and the risk of early mechanical failure.
To start a technical consultation for your project, visit www.dcgearbox.com and speak with our application engineers. We will help you find the most economical and reliable configuration for your specific use case.
